Product Description

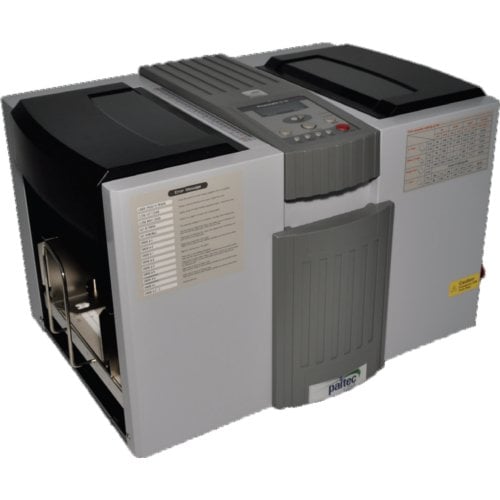

Large capacity elevator infeed table holds 700 pressure seal forms. Processes up to 8,000 forms per hour. User friendly operator panel. Multi-sensor monitoring system. Built-in 350 sheet catch tray. Quick set manual fold setting. Optional inline kit to select printers for easy printer interface. Automatically detects double feeds.
Product Details
- Easy & Friendly User Interface. Includes an easy-to-use auto stop and auto re-start function, electronic thickness detection, and batch counter.
- Easy to Clean and Maintain. Easy access to all fold and seal rollers for cleaning off ink and toner buildup.
- Optional Conveyor or Vertical Stacker. Optional Auto-Extending Conveyor or Vertical Stacker can hold up to 650 processed forms.
- Reverse (RFR) Friction Roller. Unique RFR system, automatically detects, singulates, and corrects doubles without any operator intervention for increased productivity.
- Large Infeed Capacity. The easy-to-load, auto-lift infeed holds up to 700 pressure seal forms to minimize reloadings.
Specifications
- Form Size: Depth - Up To 14”/ Width - Up To 9”
- Feeder Capacity: Up to 700 Pressure Seal Forms
- Speed: 8,000 Sheets Per Hour
- Fold Setting: Quick Set Manual
- Paper Weights: 20 - 28 Lb.
- Infeed Type: Reverse Friction Roller
- Fold Type: Z, EZ, C, EC, V, & Double Parallel
- Counter: Auto Start for Job Separation
- Double Detection: Automatically Detects Double Feeds
- Stacker Capacity: Built-in 350 Sheet Catch Tray; Optional Conveyor or Stacker Holds 650 Sheets
- Printer Interface: Optional Inline Kit To Select Printers
- Duty Cycle: 130,000 Forms Per Month
- Weight: 115 Lbs.
- Size: 17 x 24 x 15 In. (W x L x H)
