Product Description

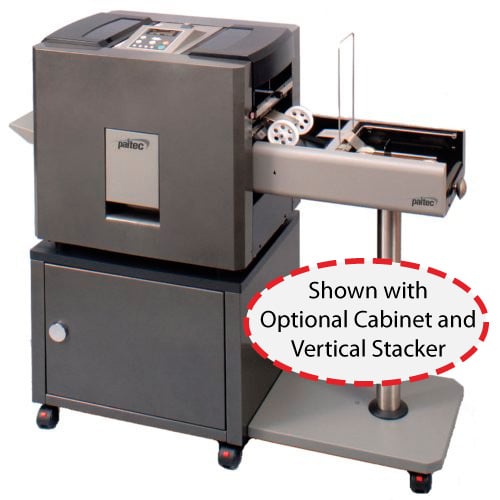

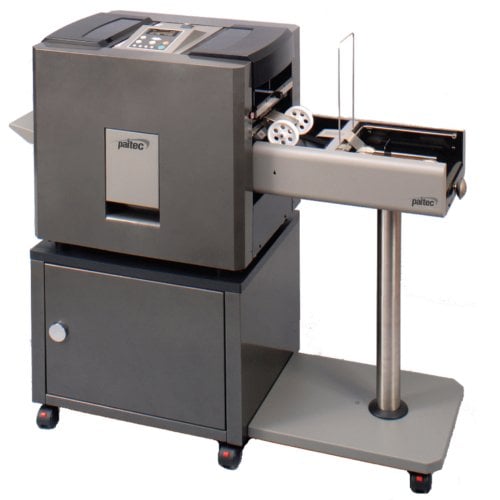

The MX13000 is the most affordable heavy duty pressure seal machine in the market today with its fast 13,000 pieces per hour processing and with a monthly duty volume of 400,000 pieces. It features our heavy duty four roller sealing unit, Reverse Friction Rollers to auto correct double feeds, an auto-lift feed tray which holds up to 1,400 pressure seal forms, and an optional vertical exit stacker which holds up to 650 forms.
Product Details
- Adjustable Speed. Adjustable speed allows operator to work at a comfortable speed and quiet environment.
- Heavy Duty Cycle. Enhanced parts an life cycle on rollers allow MX13000 to operate up to 400,000 sheets per month.
- Reverse (RFR) Friction Roller. Unique RFR system, automatically detects, singulates, and corrects doubles without any operator intervention for increased productivity.
- Four-roller Sealing Unit. A second pair of sealing rollers enables enhanced sealing quality at higher speed.
- Large Infeed Capacity. The easy-to-load, auto-lift infeed hopper holds up to 1,400 sheets for time saving throughout processing.
Specifications
- Form Size: Depth – Up To 14”/ Width – Up To 9”
- Input Tray: Up to 1,400 Pressure Seal Forms
- Speed: Up to 13,000 Per Hour
- Fold Setting: Quick Set Manual
- Paper Weight: 20 - 30 Lb.
- Infeed Type: Friction Reverse Roller With Cooling Fan
- Manual Feeder: Process Single or Damaged Forms
- Fold Type: Z, EZ, C, EC, V, & Double Parallel
- Batch Counter: Auto Start for Job Separation
- Double Detection: Automatically Detects Double Feeds
- Jam Free: Reverses the Rollers and Clears Any Jam
- Output Capacity: Auto-Extending Conveyer Stacker (650 sheets) Vertical/Sequential Stacker (650 sheets)
- Printer Interface: Dual-Purpose (In-line & Stand-Alone)
- Duty Cycle: 400,000 Sheets Per Month
- Weight: 227 Lbs.
- Size: 16 x 24 x 24 In. (W x L x H)/Without Conveyor
- Warranty: 6 Months
