Product Description

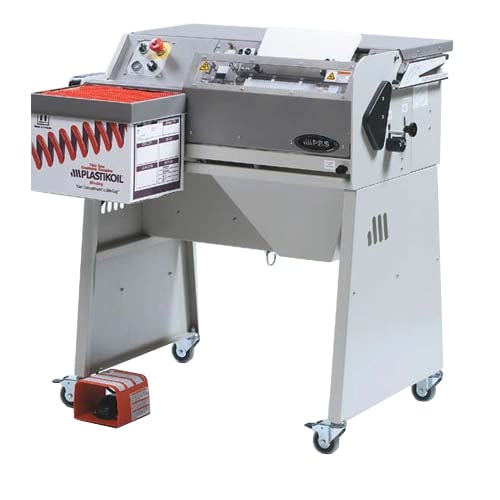

The PBS 3000 QS Auto Inserter is a low maintenance automatic coil inserter and finishing system. It is capable to accept pre-cut lengths of coil and insert into the pre-punched book with instantaneously crimps on both ends. The 3000 QS features a high productivity volume, processing up to 600 books per hour. The easy and quick setup operation requires no changeover with limited basic setup. The machine needs very little maintenance, where it doesn't require an expensive service warranty. For easy transportation, the finish system display mounted on casters that can be locked in place. Have other Plastikoil coil manufacturing and automated insertion machine? The 3000 QS interlined perfectly to create the ultimate, one stop work station.
Product Details
- Comes Complete:
- Set of 15 Spine Formers
- Tool Kit
- Photo Instruction Manual & Instructional DVD - Productivity.
- As high as 600 books/hour (Available in .2475" OR 4:1 OR 6 mm Pitch)
- For diameters from 6 mm to 20 mm - Recommended Wider 3:1 OR 2.5:1 Pitch For larger diameters up to 30 mm
- Coil Capabilities.
- 6 mm through 20 mm
- Up to 30 mm in wider pitch options - Available Formats.
- 12"/A4 model (Binding edges from 5" to 12"/12.7 to 30.5 cm)
- 17"/A3 model (Binding edges from 5" to 17"/12.7 to 43 cm) - Offcut Disposal Chute
- Foot Pedal Actuated
- Quick Setup. No tools required for basic setup and changeover.
- Vertical book placement can accommodate tabs or wider covers
- Consistent simultaneous crimping of both coil ends.
- Low maintenance design. No need for expensive service contracts.
- Mounted on casters for easy movement.
- Can be interlined with the PLASTIKOIL New Concept Former for in-line coil manufacturing and automated insertion.
Specifications
- Power Supply: 110 V OR 220 V Single phase CE Compliant
- Compressed Air required: 80 psi @ 2 cfm
- Compatible Supplies: Plastic Spiral Binding Coils
- Dimensions: 36"W x 24"D x 42"H
- Weight: 190 lbs.
- Part Number: PBS-3000QS
