We're sorry, but we no longer offer this item.
Call us at 1-800-944-4573 for personalized recommendations
check out these similar items that may be a good fit
Product Description

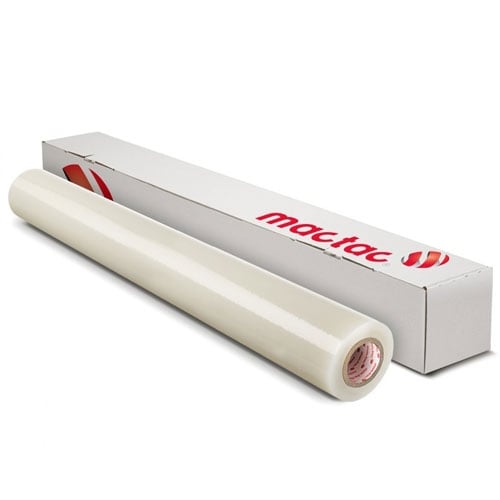

This Permacolor ColorGard LUV 3.2mil 51" x 150' Lustre Clear Digital PS Overlaminate is a general purpose lustre vinyl laminate designed to enhance photographic prints, UV screen printed images and latex, solvent, eco-solvent, water-based and UV inkjet prints to protect from abrasion, moisture and other potentially damaging effects in both indoor and outdoor environments. It is is a luster finished vinyl film coated on one side with a clear high tack acrylic pressure sensitive adhesive. An easily removed 58# white kraft liner protects the adhesive. It has a built in UV inhibitors to help retard color fade caused by ultra violet (UV) light exposure. This Permacolor ColorGard LUV 3.2mil 51" x 150' Lustre Clear Digital PS Overlaminate is ideal in general purpose lamination of digital images, murals and exhibits, event graphics, and retail posters and displays.
Product Details
- Features and Benefits:
- Five to seven year outdoor durability
- Excellent adhesive wet-out for no silvering
- Suitable for UV, solvent, latex and eco-solvent printed graphics
- Protection against UV light, moisture and abrasion
- Typical Uses:
- General purpose lamination of digital images
- Murals and exhibits
- Event graphics
- Retail posters and displays
- Use with: Intermediate Media
- Physical Properties
Property Typical Values Test Method Thickness, inches (µm)
Film plus adhesive0.0043 (110) ISO 536
(ASTM D645)Peel Adhesion
lb./in. (N/25mm)
Glass
- 20 min
- 24 hr.
4.34 (19)
5.0 (22)FTM-1
(PSTC – 1)Quick Tack, lb./in² (N/25mm)
Glass3.0 (13) FTM 9
(MACtac CTM-25)Dimensional Stability, (%)
MD
CD< 0.5
< 0.5(Mactac CTM-21) (Method D)
48 hours @ 158°F (70°C)
Bonded to aluminumSurface Burning Characteristics
Meets ANSI, NFPA, and IFC
Flame Spread
Smoke DensityClass A
20
35ASTM E84-01 or
ANSI/NFPA 255 or
IFC 8-1Shear, Hours to fail
Stainless Steel – 2.2 lbs. @
72°F (22°C)150 PSTC - 7 Temperature Range
Application:
End Use:
40° to 104°F (5° to 40°C)
-20° to 140°F (-30° to 60°C)Adhesive pH Neutral TAPPI-529 - Durability
The durability of the film is 5 years outdoors. While all Permacolor overlaminating films have UV resistance built in to help extend the life of your image, the durability of the image is mainly dependent upon the quality of the inks (see technical data sheets given by the ink manufacturers) and pressure sensitive media being used. - Shelf Life
Two years when stored at 75°F (24°C) and 50% relative humidity or less. Note: Mactac recommends that rolls be stored on end or suspended from the core. - Chemical Resistance
This laminate is resistant for short periods of time immersed in water and for short contact with detergents, alcohol and some aliphatic solvents. This product is not recommended for contact with ketones, esters, aromatic solvents and chlorinated hydrocarbons. - Limitations
1) The user is responsible for determining the product’s suitability, including adhesion and if needed, removal characteristics when used in applications other than listed specifically in this Performance Guide.
2) If there are any questions about applications, please contact your Mactac sales representative to discuss your requirements for recommendations.
3) If this is a printed Performance Guide it is an uncontrolled document. Please check the Mactac website for the latest, most up-to-date version.
- Recommendations
- Where exposure to moisture, chemicals, solvents or high pressure wash is anticipated, Mactac recommends sealing the edges with varnish, silicone or other sealant to prevent penetration by these liquids.
- Overlaminates should not be applied onto dusty or dirty prints.
- The mounting board must be properly prepared prior to mounting the image. This may include wiping with alcohol, light sanding or surface sealing depending on the board. Contact your board supplier for their recommendation.
- Mactac's pressure sensitive mounting films are intended for "Cold Roll Lamination" (40°F - 104°F). The addition of heat while simultaneous mounting with Thermal Overlaminates may result in curl or have other detrimental effects on the finished product.
- Whenever possible, always test first to ensure end-use capability.
• Values given are typical and are not necessarily for use in specification. - Aplications Include:
- General purpose lamination of digital images
- Murals and exhibits
- Event graphics
- Retail posters and displays
- IDeal in: Windows, Outdoor Signage, POP/Indoor, Trade Shows, Museum, Light Box, and Walls
Specifications
- Adhesive Type Permanent: Acrylic
- Color: Clear
- Films: Vinyl (PVC)
- Finish: Lustre
- Length: 150'
- Width: 51"
- Liner Category: 58# White Kraft
- Outdoor Durability: 5 Years
- Precise Program: N
- Thickness: 3.0mil
- Compatible Equipment: 3" Core Pressure Sensitive Roll Laminators
Technical Assistance Guide
Cleaning Overlaminated ImagesCold Roll Lamination Procedure
Rolling And Shipping Laminated Images
Surface Preparation
Decorative Graphic Solutions and Applications Guide
