Product Description

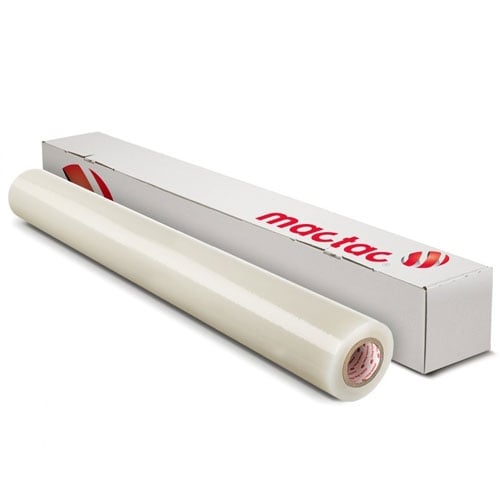

These Mactac Permacolor PermaFlex Lustex Clear Rigid Overlaminates are 15 mil film with a lustex textured, tough polycarbonate surface that is designed to add texture, rigidity, depth and slip resistance to your finished printed graphics. The low gloss texture helps eliminate glare, protection from abrasion, moisture and color fade from UV light. These films can be used as an overlaminate for indoor as well as outdoor applications. These Mactac Permacolor PermaFlex Lustex 15mil Clear Rigid Overlaminates are ideal for long and short term applications including trade shows, floor graphics and POP.
Product Details
- Features and Benefits:
- Textured lustex finish polycarbonate
- Eliminates glare
- Three year outdoor / Five year indoor durability
- Protects from abrasion and moisture
- Retards color fade caused by UV light
- Typical Uses:
- Trade show displays
- Rollable graphics
- Photo graphics
- Counter mats
- Direct food contact
- Use with:StreetRAP, all REBEL and IMAGin print media
-
Physical Properties
Property Typical Values Test Method Thickness, inches (µm)
Film plus adhesive
0.0165 (419)ASTM D-645 Flame Resistance
Flame Spread
Smoke Developed
ANSI, NFPA and IFC
10
70
Class AASTM E-84 Static Coefficient of Friction
(Slip Resistance)
Dry floors = 0.5, Wet surfaces &
Handicap accessible routes
=0.6, Ramps =0.8
Dry Neolite
Wet Neolite
0.60
0.79ASTM C 1028
SGS US Testing Co.White light Transmission 92%
(Note: Glass = 100%)Mactac CTM-67 Gloss (60° angle) 12 ASTM D-523 Adhesive pH Neutral TAPPI –529 Temperature Ranges
Application for best results:
End Use:
Above 50°F (10°C)
-20° to 200°F (-29° to 93°C)Direct Food Contact FDA conditions of Use
B through H21 CFR 177.1580
Subsections (a), (b) &(c)Co-efficient of Expansion 1.7 X10-5in/in/°C ASTM D696 - Durability
The durability of the film is 2-3 years in vertical (90±5°) applications outdoors and 3 -5 years indoors. While all Permacolor overlaminating films have UV resistance built in to help extend the life of your image, the durability of the image is mainly dependent upon the quality of the inks (see technical data sheets given by the ink manufacturers) and pressure sensitive media being used. - Shelf Life
Two years when stored at 75°F (24°C) and 50% relative humidity or less. Note: Mactac recommends that rolls be stored on end or suspended from the core. - Limitations
1) The user is responsible for determining the product’s suitability, including adhesion and if needed, removal characteristics when used in applications other than listed specifically in this Performance Guide.
2) If there are any questions about applications, please contact your Mactac sales representative to discuss your requirements for recommendations.
3) If this is a printed Performance Guide it is an uncontrolled document. Please check the Mactac website for the latest, most up-to-date version.
- Recommendations for Rolling and Shipping Laminated Images
- Mactac studies and field surveys with numerous customers using Permacolor laminates in rolled-up graphic applications, leads to the following recommendations for rolling and shipping laminated images:
- 1. Prior to rolling graphics:
- a) A 2 - 4 hour wet-out period is strongly recommended for the adhesive system to build to ultimate adhesion. This will significantly improve your success with rolled-up graphics.
- 2. For single-side laminated images:
- a) Roll laminated side in for shipping and storage.
- b) An inside roll diameter of 3 - 5 inches, minimum, is recommended for graphics with less than 10 mil total graphic thickness (includes imaged media and Permacolor overlaminates).
- c) For images with a total thickness of 10 mils or greater an inside roll diameter of 10 - 12 inches, minimum, is recommended.
- 3. For images laminated on both front and back sides:
- a) Roll images with the thicker laminate to the outside for shipping and storage. For example: if your image has 5 or 10 mil Polycarbonate on the front and 15 mil Polycarbonate on the back (for additional stiffness), roll the graphic with the 15 mil PermaFlex side out.
- b) All double laminated images should be rolled with an inside roll diameter of 10 - 12 inches minimum. Remember that a larger inside diameter is better.
- Please keep in mind that this is a recommendation, individual experience should not be discounted. We recognize that different laminators and laminating methods may produce different results. The recommendations above represent our experience as having the “greatest” success in the field.
- Values given are typical and are not necessarily for use in specification.
Specifications
- Adhesive Type: Permanent Acrylic
- Color: Clear
- Films: Polycarbonate (PC)
- Length: 150'
- Width: Choose Above
- Liner Category: 1.4 mil Polyester (PET)
- Outdoor Durability: 3 Years
- Precise Program: N
- Thickness: 15 mil
Technical Assistance Guide
Cleaning Overlaminated ImagesCold Roll Lamination Procedure
Rolling And Shipping Laminated Images
Surface Preparation
Out Gassing Prevention
Trimming PermaFlex Laminated Images
