Product Description

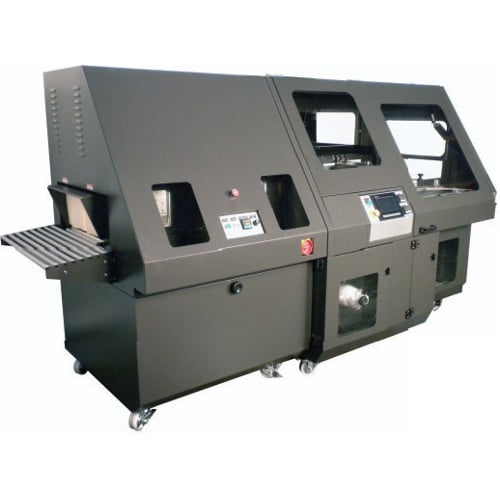

The New Preferred Pack PP-5300C Fully Automatic Combination L' Sealer and Shrink Tunnel is the only automated L Sealer and tunnel to feature "APA" Automatic Product Adjustment, operator simply selects desired program from the one touch control panel and the machine will automatically adjust the infeed conveyor and inverting triangle to package size in less then 15 seconds. Imagine no more fussing with crank ahandles or guessing the proper package size.
Product Details
Automatic L' Sealer Features
- "APA" Automatic Product Adjustment.
- Speeds up to 40 PPM.
- Vertical seal head design.
- Fast product changeovers.
- "Single Piece" hot knife seal blade.
- 7" Color Touch screen control panel.
- Variable speed drive 0-110 FFM.
- Delta PLC with 12 program memory.
- Motorized adjustment of seal head.
- Pine wheel hole punch.
- Front load folm cradle.
- Seal area 19"L x 16"W.
- Self diagnostics for safety sendors, low voltage, broken scrap wind etc.
- Emergency stop switch.
- Self Contained scrap removal system with built in alarm when full.
Shrink Tunnel Features
- Dual lighted viewing window.
- Chamber size 18"W x 7"H x 38"L.
- Emergy efficient.
- 1HP blower motor.
- Fully re-circulating air chamber.
- Live roller and conveyor.
- Digital temerature controller prgrammable 0 to 400 degrees.
- 10 KW heater bank.
- Tunnel adjusts side to side, will center package into tunnel.
- Variable speed drive 0-110 FFM.
- Solid state digital temperature controller.
- Automatic cool and shut off.
- CE Approved safety system, Exceeds OSHA safety standards.
Specifications
- Seal Area (L x W x H): 19" x 16" x 5"
- Machine Speed:Up to 40 PPM
- Electrical: 220V, 1 Phase, 20 AMP
- Air: 1CFM @80 PSI
- Min. PKG Size (L x W x H): 2.5" x 2.5" x 1/8"
- Max. PKG Size (L x W x H): 19" x 16" x 5"
- Max. Film Width: 24"
- Created Dimensions (L x W x H): 118" x 64" x 73"
- Warranty: 1 Year on Parts, 2 Years on Seal Head
- Part Number: PP-5300Combo
