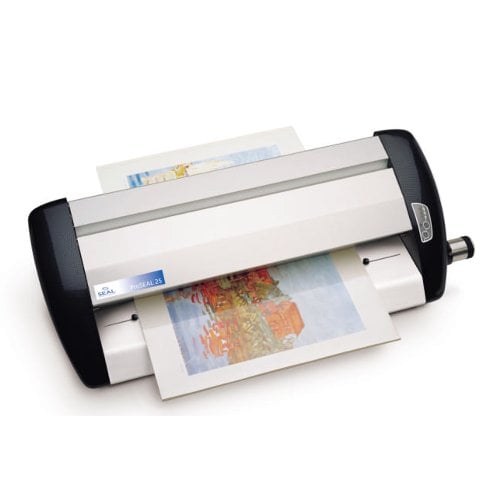

Product Description
Now you can laminate and mount in one step right on your desktop. Simply place your print into the appropriate pouch board and run it through a ProSeal 44 inch Pouch Board Laminator. This versatile machine offers three options: Mounting and Laminating, Mounting Only, or Laminating Only. It includes 4 thickness settings: 1/16", 1/8", 3/16", and 1/4". Whether you are a novice or expert, with needs varying from one-at-a-time to higher volumes, the ProSEAL system provides no hassle quality lamination.
Product Details
- Space-saving design.
- Easy to use thickness selector knob.
- Pre-set roller pressure.
- Single heated roller.
- Heat on/off control with automatic temmperature shut-off.
- Pre-set digitally controlled heat to ensure consistent temperature.
- Silicone rollers and easy-clean features mean minimal maintenance.
- Reverse mode provides quick misfeed correction.
- Laminating Supplies.
Specifications
- Height: 12" (305 mm)
- Overall Width: 58" (1473 mm)
- Depth: 15" (380 mm)
- Net Weight: 154 lbs. (70 kg)
- Shipping Weight: 172 lbs. (78 kg)
- Maximum Working Width: 44" (1120 mm)
- Process Speed: 1 ft/min (305 mm/min)
- Roller Line Pressure: 0.8 N/mm
- Process Temperature: 311-320°F (155-160°C)
- Nip Settings: 0 (closed nip), 1/16" (1.5mm), 1/8" (3mm), 3/16" (5mm) and 1/4" (6mm)
- Electrical: 110 VAC / 60 Hz / 16A
Staff Review
ProSeal 44 inch Pouch Board Laminator Review
Have you been looking for a machine that will allow you to both laminate and mount your documents? One that’s compatible with mounting boards and laminating film? If so, you should take a look at the ProSeal 44” Pouch Board Laminator. Here’s a look at this product’s strengths, as well as a discussion about what could be improved.
Strengths:
- This machine has an extremely wide feed opening. It’s a full 44 inches across so you’ll be able to create a lot of different items including signage for a variety of purposes, court exhibits, artwork displays, and more.
- The ProSeal is compatible with pouch boards of various thicknesses. Depending on which nip setting you use, you can use boards that are 1/16”, 1/8”, 3/16”, or 1/4” thick. Selecting the right setting is easy. All you need to do is turn a knob.
- In addition to pouch boards, the ProSeal is compatible with laminating film so you’ll be able to use it as a regular laminator. It’s also capable of working with film pouches. This is a great feature to have because it means you can use the machine for a variety of uses including both laminating and mounting the same item.
- This device operates at varying temperatures all the way up to 320 degrees Fahrenheit. Because of this, you’ll be able to use laminating film of different thickness. The thicker the film (i.e. 7 or 10 mil), the more protection your document will have. The speed and temperature settings are preset so selecting the right one is easy.
- This machine’s rollers are made out of silicone so they’re easy to clean and will also produce great results.
- The ProSeal has a reverse mode that will be helpful if your work ever gets misfed or jammed in the machine. It will allow you to quickly solve the problem so you can get back to laminating.
- This machine has a one-year warranty on parts so if you run into any issues, they can be taken care of without any problem. (The rollers are backed by a 90-day warranty.) Plus, the ProSeal is made in the United States, so purchasing it will help support American businesses.
Weaknesses:
- This is a pretty large device because it measures 55.6” (width) x 12.6” (height) x 20.5” (depth). It’s also very heavy, weighing in at 119 pounds. Not only will it take up a fair amount of room, moving it around could be difficult.
- Since the speed and temperature settings are preset, you won’t be able to manipulate them. This might be a drawback if you prefer to have control over the entire process.
- The ProSeal isn’t the fast laminator around. At its top speed, it will process a foot-long document in one minute.
While the ProSeal 44” Pouch Board Laminator isn’t the smallest or the fastest machine around, it’s recommended because of its ability to work with both boards and laminating film. This would be a good device to get if you want an all-in-one device for a variety of purposes. If that’s what you need, give the the ProSeal a look today.
