Product Description

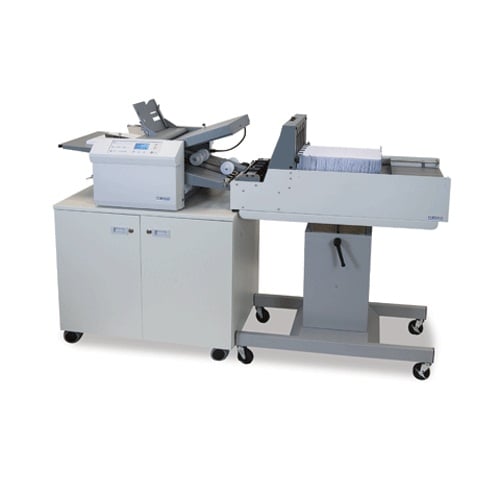

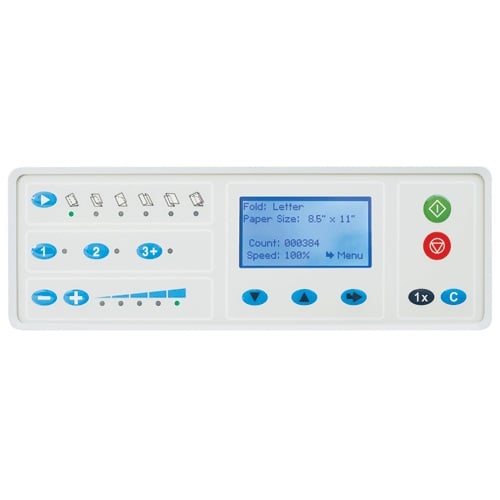

The fully automatic FD 38x Document Folder is the ideal folding solution for any church, school or business which demands quick and easy setup. Six common folds are pre-set for 11", 14" and 17" (Int'l Sizes A3, B4, A4, B5, A5 & B6) paper and can be activated with the touch of a button. Additionally, up to 35 custom folds can be programmed and stored in memory. All the settings are easily made with the centrally located control panel and LED. The Telescoping Outfeed Stacker holds up to 500 folded documents. This unique feature enables operators to load the in-feed hopper and let it run out before removing the folded forms for most applications. The Dedicated Multi-Sheet Feeder gives operators the ability to fold up to three 20# (75 gsm) sheets of stapled or unstapled paper at the same time. AutoBatchTM is a unique batch counting system that allows operators to key in a pre-determined number of sheets to be pulled into sets with a programmed delay between each set for easy paper handling. With these unmatched features, the FD 380 clearly sets the new standard for automatic paper folding. The FD 380 is capable of processing paper up to 18"(432mm) in length and up to 12.25"(311mm) in width giving it the flexibility to process a variety of paper sizes. The ability to customize jobs allows operators to fold in virtually any configuration that only requires two folds. Cross folding adds to the FD 38x's flexibility allowing for additional folds in a second pass. The unique semi-automatic Dedicated Multi-Sheet Feeder is designed with an independent skew adjuster, side guide adjuster and paper sensor allowing operators to accurately fold stapled and unstapled sets of precollated documents with up to three 20#(75gsm) sheets. Self centering side guides and a skew adjuster ensure that paper is loaded and feeds squarely into the folder. Fine tuning knobs on the fold plates allow operators to precisely set the fold positions. Pre-programmed folds, automatic fold adjustments, and a centrally located control panel make for easy setup and operation. The Telescoping Outfeed Stacker, with an unprecedented stacking capacity of up to 500 folded documents, cuts down on unloading time and ensures that the forms remain in a neat and sequential order. The unique AutoBatchTM or "automatic batch" allows operators to batch count with automated features. In the AutoBatch mode, operators can program the number of sheets to be processed in a set, the number of sets needed and the delay between each set.
Product Details
- Pre-programmed for 6 popular folds: Letter, Zig-Zag, Single, Gate, Fold Out and Double Parallel folds in 11", 14" & 17" (Int'l Sizes A3, B4, A4, B5, A5 & B6)
- Telescoping Outfeed Stacker: Holds up to 500 folded documents and keeps them in a neat and sequential order

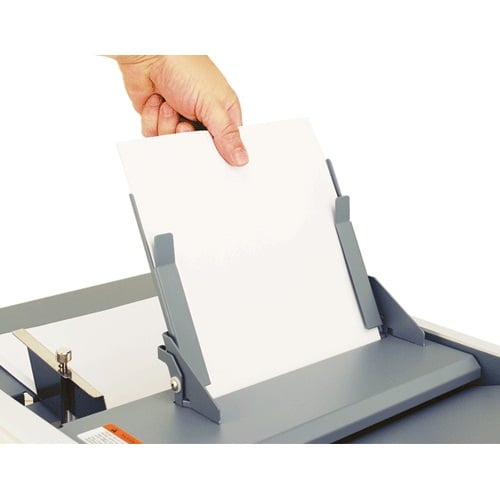

- Dedicated Multi-Sheet Feeder: Designed with an independent skew adjuster, side guides and paper sensor, operators can fold up to 3 stapled or unstapled sheets of paper at the same time
- AutoBatchTM: Processes a pre-determined number of sheets into sets with a delay between sets
- Manual Batch Counter: Processes a pre-determined number of forms
- 6-Digit Resettable Counter: Provides maximum audit control
- Custom Fold Memory: Set and store up to 35 custom jobs for automatic setup

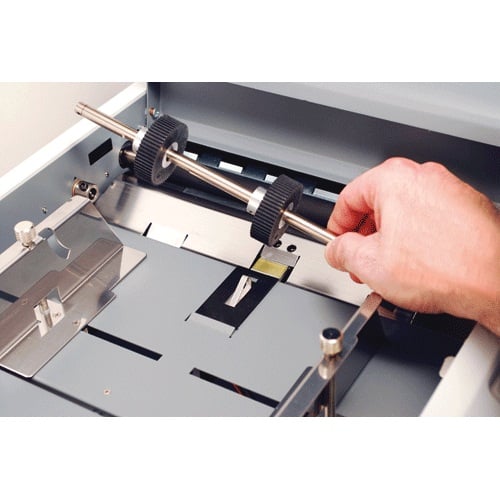

- Drop-In Feed System: A drop-in three roller feed system produces dependable feeding of forms with no paper fanning required
- Cross-Folding: A guide is included for maximum performance
- Variable Speed Control: Up to 21,500 pieces per hour
- Fault Detector: Automatically stops operation if a fault occurs
- Noise Reduction: Fold plates are insulated to reduce operating noise
- Fine Tune Adjustment: Precisely sets fold stops for crisp, accurate folds
Specifications
- Hopper Capacity: Up to 500 Sheets 20# (75gsm)
- Variable Speed: Up to 21,500 sheets per hour - based on 11"(279mm) "Z" fold
- Min Paper Size: 3.5'' W x 5" L (88.9 W x 127 L mm)
- Max Paper Size: 12.25'' W x 18" L (311 W x 457 L mm)
- Power: FD Model: 120 Volts AC 50/60 HZ
FE Model: 220 Volts AC 50/60 HZ - Dimensions: Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm)
Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm) - Weight: 74 lbs (35 kg)
- Certifications: UL and CUL approved CE applied for
- Warranty:
- 90 day limited warranty on parts.
- Excluding wearables and labor.
