Product Description

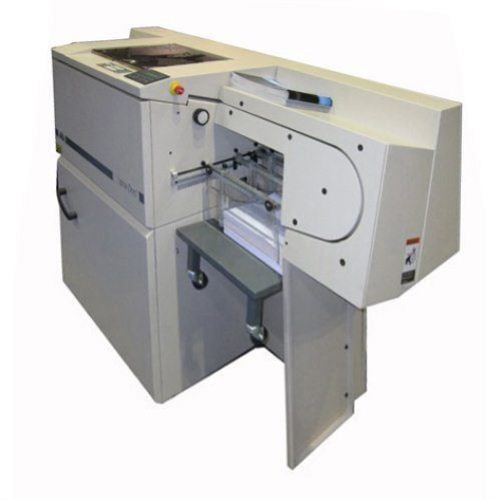

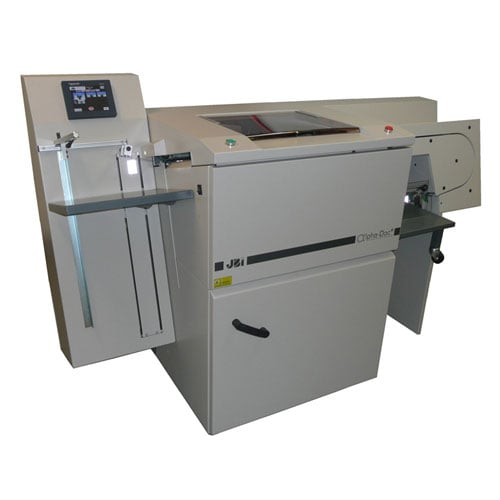

Previously called the Alpha-Doc MKIII (MK3), the new and improved Alpha-Doc MK4 provides large-volume, hands-free, pre-collating punching. Perfect for the production environment and industrial binding facilities, this powerful unit offers high-speed output of up to 90 cycles per minute to reach total hurly outputs up to 94,200 sheets. The AlphaDoc MK4 will punch pre-printed documents straight from your copier or printer, including mixed stock from 16 lb. bond to 110 lb. index. You can also accomplish punching of tabbed sheets with a minimum of 1/4” shoulder. This powerful puncher can handle a wide variety of material in virtually any size from 5.4" x 5.4" up to 14" x 13".Our simplified paper path and unique turnover device with receding stacker provide low waste and assures that pages are kept in perfect pre-collated order. The remarkable ALPHA-DOC MK4 combines the versatility and ease of an office machine with the speed and efficiency of an automatic punch -- for perfect holes every time. Simply load the tray, push a button and walk away for hands-free punching. There is a huge selection of punching pattern dies available, so you can prepare your pages for coil, wire, comb, and other binding methods. With this versatile assortment of die patterns available, combined with surprisingly fast changeover times, the Alpha-Doc MK4 will be a huge boost in your document binding productivity at a lower cost.
Product Details
- High Productivity: With a top speed of 90 cycles / minute, it can punch up to 54,000 sheets per hour without the constant presence of the operator required.

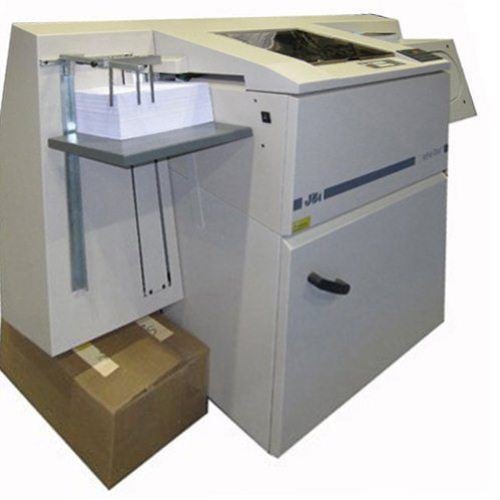

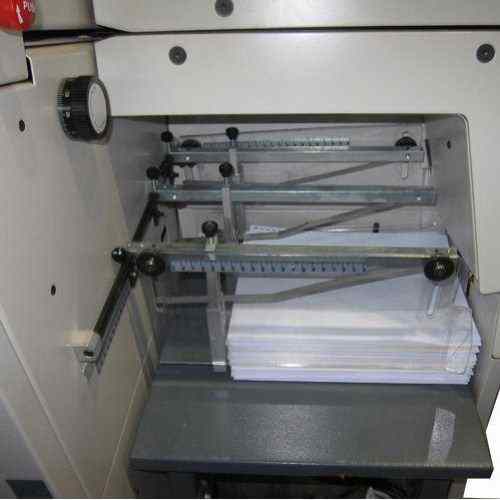

- Large capacity: The high pile feeder and reception trays will accomidate up to 6 reams of paper.
- Versatility: The Alpha-Doc MK4 can punch a wide variety of paper stock and covers including tab cut sheets and wall calendars with thumbcut, in virtually any size from 5.4" x 5.4" up to 14" x 13".
- Easy-to-Use: Just load the tray and push a button, no special training is required.
- Simple Formating: Just follow the instructions on the conversational touch screen and, with pre-set standard formats, size change-over can be done in less than 2 minutes.
- Wide Choice of Punching Dies: Lhermite original hardened steel dies provide long life time. They can be changed in less than 5 minutes. Retractable pins allow to produce clean and perfect holes whatever the sheet formats are. The wide choice of punching dies covers all perforation styles now including thumbcut punching. Lhermite original dies can be resharpened.
- Installation: Caster wheels make machine placement quick and easy.
Specifications
- Manufacturer: James Burn
- Manufacturer Part Number: 320013036
- Suggested User: Industrial/Production Binding Style: Wire, Comb, Coil (Depends on Die)
- Operation: Automated
- Compatible Supplies & Accessories: Alpha Doc MK4 Dies
- Punch & Bind Capability: Punching Only
- Setup Time: Less than 5 Minutes
- Die Change Time: Less than 2 Minutes
- Paper Size: 5.4" x 5.4" Minimum to 14" x 13" Maximum
- Accepted Paper Stock: 16 lb. Bond to 110 lb. Index
- Feed Table Capacity: 8 Reams
- Selectable Speeds: 3 Speed Settings (70, 80, 90 Cycles per Minute)
- Maximum Speed: Up to 54,000 sheets per hour (Depending on Die, Sheet Size, & Other Factors)
- Sheet Pickup: Top of Pile Positive Sheet Pickup
- Maximum Punching Thickness: 1 mm

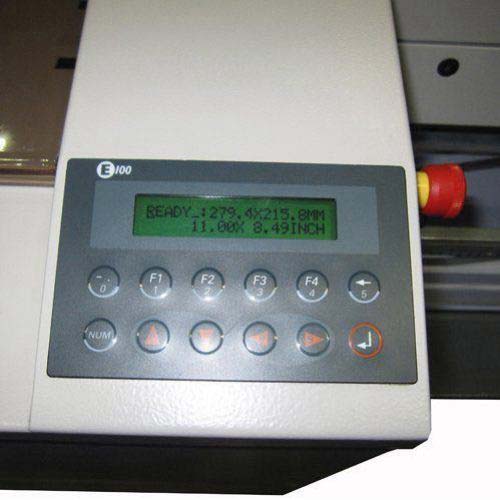

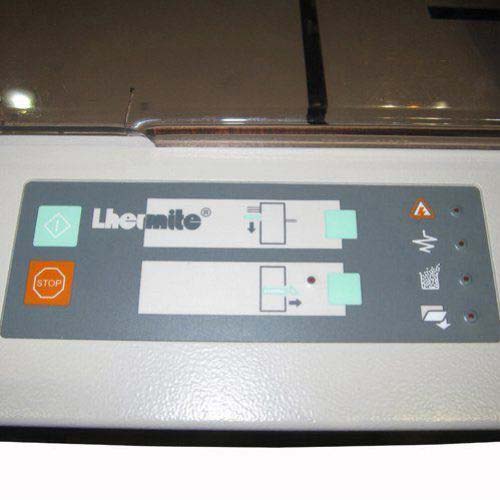

- Control Panel: Digital LCD Touch Pad

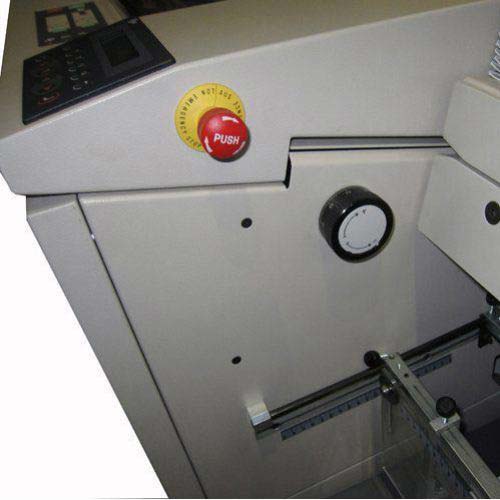

- Control Panel Alerts: Paper Jam, Cover Open, Emergency Stop
- Die Sharpening Available: Yes, Express Die Sharpening Service is Available Upon Request
- Disengageable Die Pins: Yes (For Common Paper Sizes, Varies by Die)
- Die / Tool Storage: Storage Compartment on Front (Hold Dies, Oil, Tools, Etc.)
- Monthly Volume: Recommended for up to 3,000,000 Sheets per Month
- Training Required: No Special Training Needed
- Power Requirements: 110v Single Phase 60Hz
- Castors: Yes; Lockable
- Dimensions: 72" W x 28" D x 46" H
- Weight: 650 lbs.
- Shipping Weight: 1045 lbs.
- Shipping Method: Freight Truck
- Warranty: 90 Day Manufacturer's Warranty
