Product Description

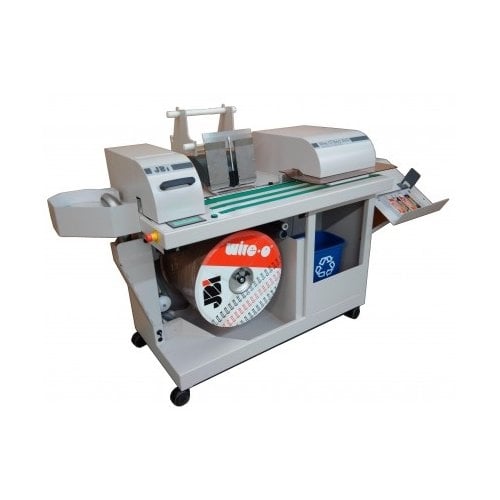

The James Burn Wire-O Bind WOB 3500 Semi-Automatic Wire Binding Machine is the perfect companion to the Alpha-Doc MK4 and DocuPunch Plus Automatic Punches. Together, they accurately finish a wide variety of documents, including oversize covers and tabbed sheets, for all wire sizes up to 1-1/4". With a production speed of 500-1000 books per hour, the WOB 3500 is super-fast, yet simple to operate with all size and format setups instantly adjustable by user-friendly 'touch screen' electronic controls. It automatically cuts wire to length, feeds and positions wire for insertion; accurately sends book to patented closing unit, and delivers book to an exit conveyor (sold separately). This James Burn Wire-O Bind WOB 3500 Semi-Automatic Wire Binding Machine is ideal in in-plant, digital and 'on-demand' printing environments, where ease-of-use, versatility and productivity are a requirement.
Product Details
- Features and Benefits:
Automatically cuts wire to length, feeds and positions wire for insertion; accurately sends book to patented closing station, and delivers book to an exit conveyor (sold separately). No special training required.- All size and format functions are setup and instantly adjustable by user-friendly Touch Screen Electronic Controls.
- Wire-O size changeovers are done in 2-5 minutes.
- The optional Hanger Feeder is a simple "plug and play" unit. It inserts calendar hangers from reeled hanger spool or from loose hangers.
- Finishes from economical Wire-O spools. Automatic features reduce setup waste.
- Finishes flush cut and overhanging covers, as well as extended index tabs.
- Operator-friendly with large table-top workstation helps reduce fatigue. Cycles with push-button or foot petal switch.
- Spool Loading is done at floor level. Wire power lifted into position.
- Installation is simple. Caster wheels allow easy placement. No air required.
- Designed to work with Alpha-Doc MK4 and DocuPunch Plus Automatic Punches
- Skip Binding:
- 3:1 Pitch: 2 x 8 loops min/ 2 x 19 loop max with a spacing of 3 loops minimum and 25 loops maximum.
- 2:1 Pitch: 2 x 5 loops min/ 2 x 13 loop max with a spacing of 2 loops minimum and 18 loops maximum.
Specifications
- Max Binding Format: 14" x 14"
- Min Binding Format: 2-1/2" x 3-1/4"
- Wire-O Diameters: All 3:1 and 2:1 Pitch from 1/4" to 1-1/4"
- Binding Speed: 500-1000 books/hour depending on format, paper quality, & operator skill
- Power Requirements: 115 V 60Hz
- Dimensions: 46-1/2" H x 83" W x 33" D
- Actual Machine Weight : 247 lbs
- Shipping Length: 208
- Shipping Width: 96
- Shipping Height: 153
- Shipping (Web) Weight: 404 lbs
- Shipping Weight: 1050 lbs.(w/ conveyor)
