Product Description

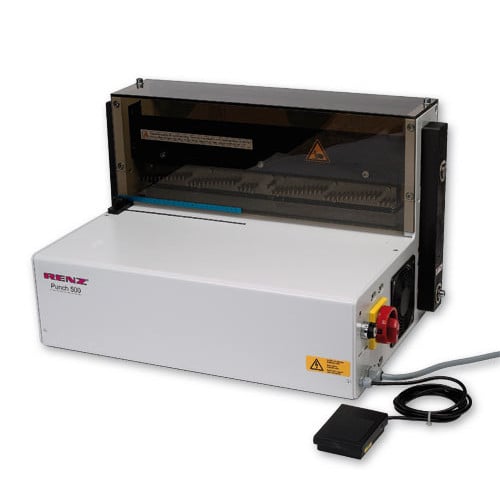

The Renz 500 ES Professional Heavy-Duty Punch will remove all the bottle necks for punching and make it a lot easier to keep customer jobs in house. Allowing you to maintain a quick turnaround and maximise the return on investment. Heavy duty production punch with a maximum working width of 500 mm for book and calendar production with a 4 mm (Dependent on paper stock. Best punching results with 2 – 2.5 mm thickness.) punching throat. This Renz 500 ES Professional Heavy-Duty Punch is ideal for: Book and calendar work, Thick covers, Digital stock, Photographic paper and Offset printed stock.
Product Details
- Punching patterns for all ring wire, plastic comb, coil, calendars and bespoke dies available on request.
- Fast die changes in under 5 minutes.

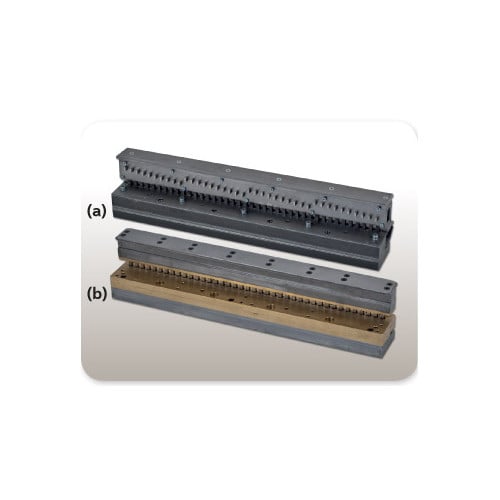

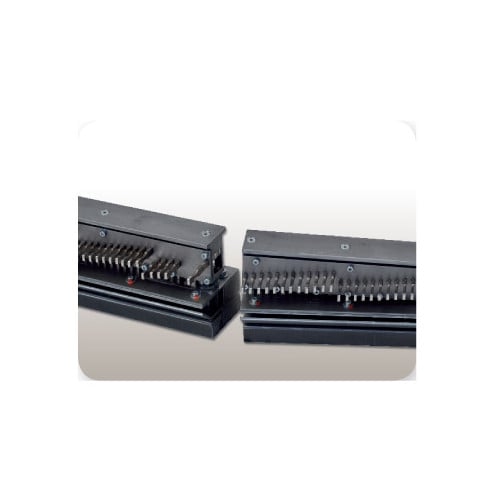

- 2 part split dies for calendar work.

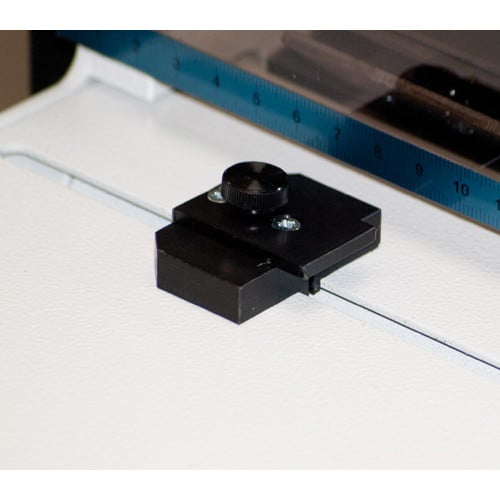

- QSA (Quick Size Adjustment).
- Horizontal paper feeding.
- Heavy duty construction.
- Quality "Made In Germany".
Specifications
- Mechanical Cycles Per Hour: 1200
- Max. Punching Width: 500 mm
- Min. Punching Width: 10 mm
- Max. Unpunched Length: 8
- Min. Unpunched Length: 60 mm
- Max. Punch Thickness: 2 mm - 4 mm
- Punch Pattern: 3:1, 2:1 Ring Wire, Calendar, Coil, Plastic Comb
- Die Type: Standard / Professional
- Selectable Punch Pins (QSA): Yes / Optional
- Sonderwerkzeuge: No / Yes
- Variable Depth Margin: No / Optional
- Die Changeover Time: Less than 5 mins.
- Operation: Foot pedal / Micro switch
- Machine Dimensions (L x W x H): 745 x 500 x 480 mm
- Machine Weight: 152 kg / 335.10 lbs
- Machine Packing Dimensions (L x W x H): 880 x 650 x 670 mm
- Machine Weight with Packing: 174 kg
- Power Requirements:
230/400 V, 50Hz / 3 ph.
240/415 V, 50Hz / 3 ph.
115/200 V, 60Hz / 3 ph. - Manufacturer's Warranty: 1 Year Manufacturer Manufacturer's Warranty
- Part Number:R-500ES
