Name: Renz DTP 340M Modular Interchangeable Die Punch
Brand: Renz
SKU: RDTP340M-GRP

We're sorry, but we no longer offer this item.

Call us at 1-800-944-4573 for personalized recommendations
check out these similar items that may be a good fit

Renz DTP 340M Modular Interchangeable Die Punch

We're here for you!

Please call
1-800-944-4573
for help finding a comparable solution

Need Shopping Advice?
Call - (800)944-4573

Item#

Mechanical Cycles Per Hour: 1,200
Max. Punching Thickness: 3.5 mm (1)
Max. Unpunched Length: 800 mm
Max. Punching Width: 340 mm

Product Description

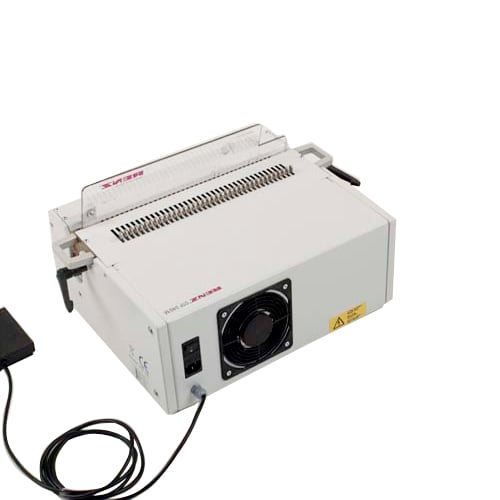

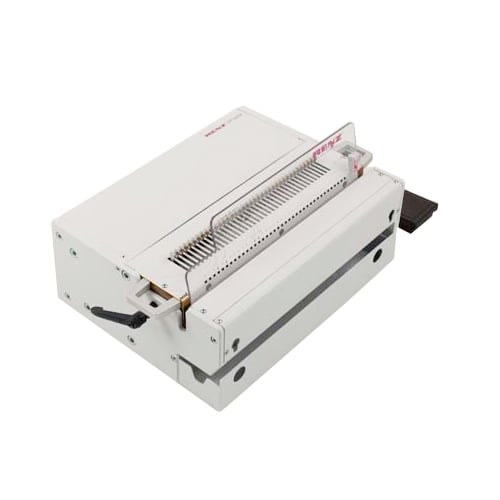

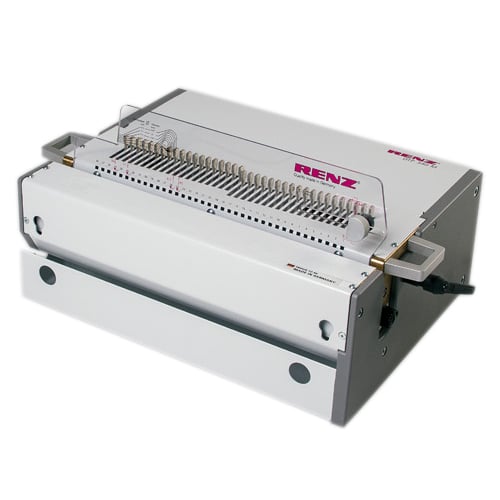

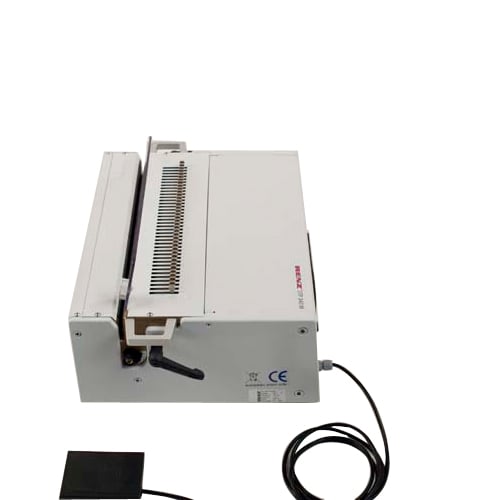

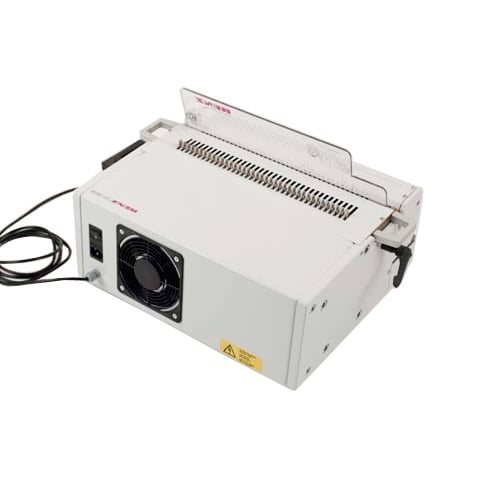

The Renz DTP 340 M is a heavy duty, table top modular punch. The DTP 340 M features all metal construction, interchangeable die sets, as well as a unique system to 'hang' modular binding units on the punch to create a compact and efficient means of production.The Renz DTP 340 M features two keyhole slots on the front of the system to accept modular binding heads. The Renz DTP 340M is perfect for all types of book and calendar production.

Product Details

Punching dies for all types of ring wire, plastic comb, coil and calendars.

Punch a wide range of mixed stocks.

Fast die changes.

QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3(1).

Vertical paper feeding for precise punching.

Compact simple design, one machine can punch and bind all jobs when using Renz MBS binding modules.

Manufacturer's Warranty: 1 Year Manufacturer's Warranty

Specifications

EAN: 4029126231453

Article no.: 363400100

Mechanical Cycles Per Hour: 1,200

Min. Punching Width: 10 mm

Max. Punching Width: 340 mm

Min. Unpunched Length: 40 mm

Max. Unpunched Length: 800 mm

Max. Punching Thickness: 3.5 mm (1)

Punching Operation: Foot pedal

Punch Dies Available: 3:1, 2:1 ring wire, calendar, coil, plastic comb

Die Type: Standard

Selectable Punch Pins (QSA): Yes

Bespoke Dies: No

Variable Margin Depth: Yes (1)

Die Changeover Time: 1 min

Machine Dimensions L x W x H: 360 x 490 x 250 mm

Machine Weight: 31 kg (2)

Machine Packing Dimensions L x W x H: 620 x 480 x 345 mm

Machine Weight with Packing: 34.5 kg (2)

Power Requirement: 230/250V / 50 Hz / 250W (115/200V / 60 Hz / 250W)

Manufacturer's Warranty: 1 Year Manufacturer Manufacturer's Warranty

Staff Review

Renz DTP 340M Modular Interchangeable Die Punch Review

One of the most important parts of just about any binding process is punching your document. You must do this for some of the most popular binding methods including those involving wires, plastic combs, and color coils. Most binding machines have a built-in punch, but having a heavy-duty one solely for this important step can be very helpful. One such device is the Renz DTP 340M. Here's what you need to know about it.

One of the best things about the 340M is its incredible punching capacity. When you use this device, you'll be able to punch up to 20,000 sheets of paper in just one hour. That breaks down to about 35 sheets per punching cycle which is a terrific amount.
This machine has a punching length of 13.5 inches. You'll be able to process paper of different sizes including the ever-popular letter-size (8.5" x 11"). You can even work with legal-sized paper (8.5" x 14") if you need to produce larger documents.
When the 340M punches your paper, it does so vertically. Vertical punching ensures that all your pages will be punched accurately so you won't have to repeat the process.

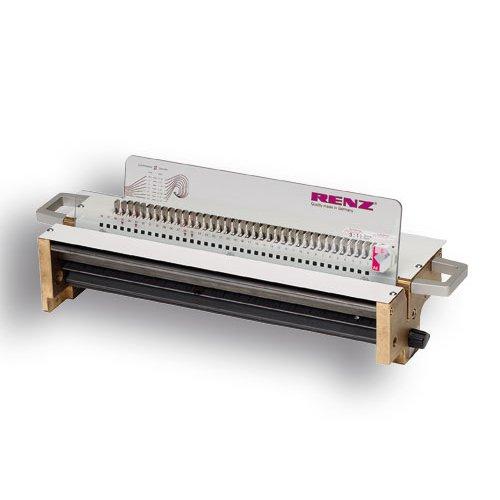

The 340M uses interchangeable die sets to produce different punching patterns. Thus, you'll be able to prepare your documents for the following binding methods: plastic comb, color coil, wire, and Velobind. You can also choose between dies that produce square holes and dies that punch round ones.
It doesn't take very long to change die sets when you're working with the DTP 340M. In fact, it will probably take less than a minute. This is great because it means the machine is easy to use. And, of course, you won't have to waste valuable time.
The dies in each set are disengageable, so you'll be able to produce the right number of holes for your particular document.
Although the 340M is a punch and not a full-fledged binding machine, you can use it in conjunction with some of Renz's modular binders. These include the WBS 340 (a wire closer), CBS 340 (a coil inserter), and the PBS 340 (a comb opener). You can attach one of these products to the machine. That way, you'll have access to a complete binding system.
The 340M is a machine that has been constructed with care. Its parts are made out of metal which makes the entire thing very durable. This is a machine that's in it for the long haul.
Finally, this is a punch you can use right on your desktop. It won't take up very much room but it will still provide you with incredible punching capabilities.

There are a lot of things to like about the Renz DTP 340M, from its incredible punching capacity to its ability to work with other Renz products. This is a great device to have around if you need a heavy-duty punch that can help you prepare your documents for a variety of different binding methods. Get one for your office today.
