We're sorry, but we no longer offer this item.
Call us at 1-800-944-4573 for personalized recommendations
check out these similar items that may be a good fit
Product Description

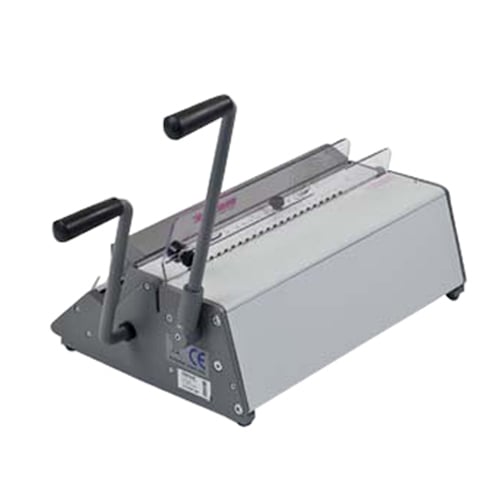

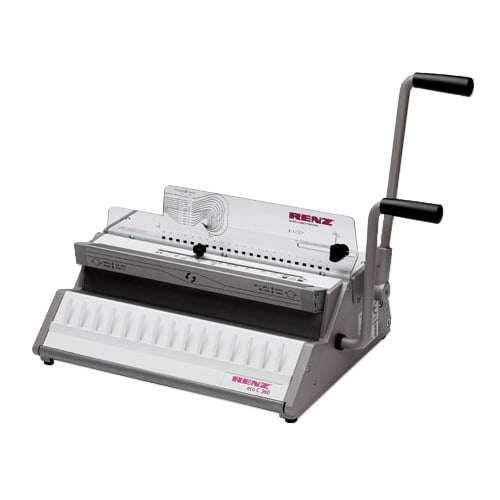

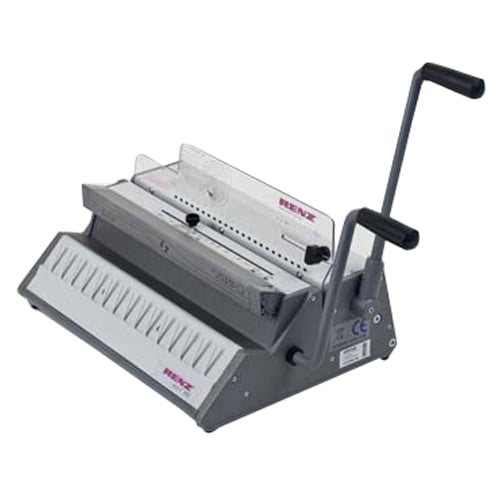

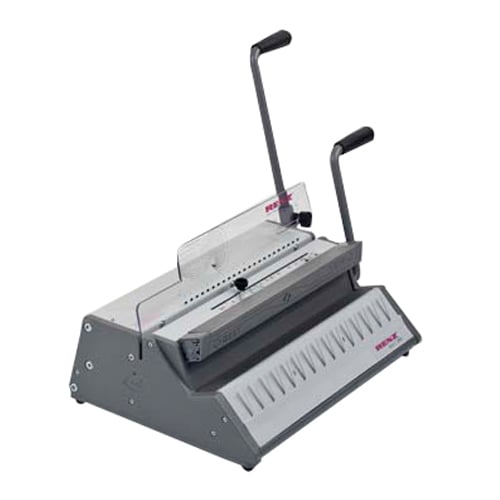

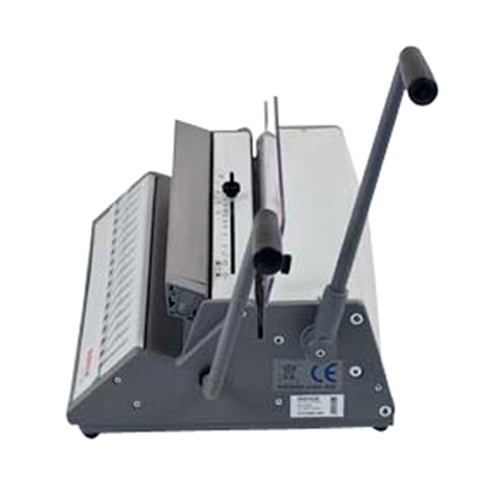

The Renz ECO C 360 2:1 Pitch Wire binding machine is an all metal wire binding machine capable of punching up to 25 sheets per lift and has a heavy duty wire closer capable of closing twin loop wire elements from 1/4" to 1-1/4". The Renz ECO C 360 punches a 2:1 hole pattern (2 holes per inch) and has a fixed depth of punch control. The Renz ECO C 360 is the basic model for manual punching and binding of all 11" formats. Punching and binding are done with a minimum of effort due to the layout of the convenient two-lever system and the integrated wire clamp.
Product Details
- Binds up to 340 sheets
- Closure control guarantees easy ring wire closure for perfect presentations every time
- Special hardened punch pins for long lasting life Staggered punching pins for better punching
- For paper formats: A5, A4
- Adjustable side lay for perfect punching registration
- Easy to empty sliding waste tray
- Measures the document or ring wire size
- Heavy duty construction & compact design
Specifications
| Punching capacity sheets per hr | 12,000 |
| Min. punching width | 10 mm |
| Max. punching width | 300 mm |
| Min. unpunched length | 50 mm |
| Max. unpunched length | 500 mm |
| Max. punching thickness | 2.5 mm |
| Punching operation | Manual |
| Punch dies available | Oblong 5.5 x 3.5 mm |
| Pitch | 2:1 |
| Selectable punch pins (QSA) | No |
| Variable margin depth | No |
| Binding thickness | 1 - 34 mm |
| Min. binding width | 10 mm |
| Max. binding width | 360 mm |
| Binding operation | Manual |
| No. of books output per hr | 200 |
| Machine dimensions L x W x H | 330 x 560 x 180 mm |
