Product Description

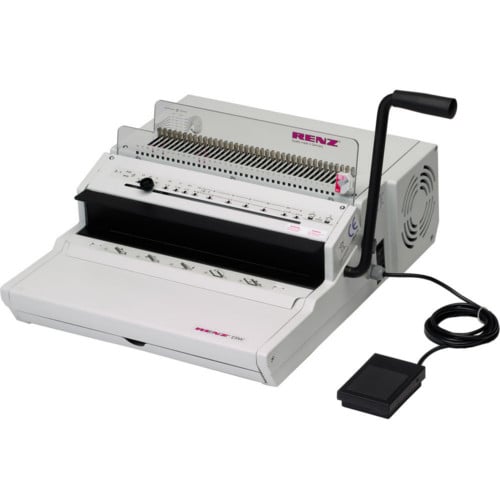

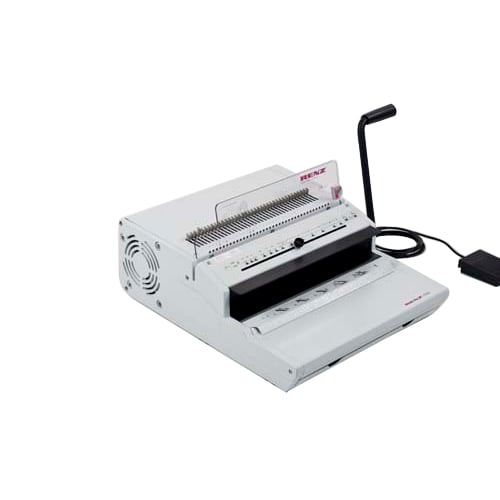

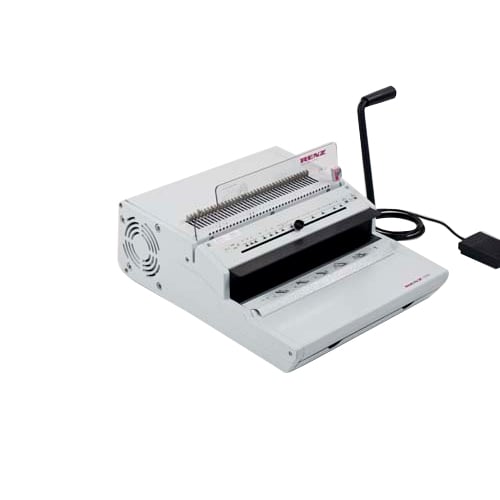

This Renz ERW is heavy-duty, fixed pitch, electric desktop punching and renz ring wire binding machines for all kinds of book and calendar production. Designed for the production of high volumes of documents of all sizes quickly and easily. It can make vertical punching quick and easy to punch accurately every time. Has QSA (Quick Size Adjustment) technology, for punching pins can be cancelled and paper formats can be changed quickly and easily. Depth gauge feature allows the operator to adjust the punched hole margin from 2 mm to 4,5 mm. This adds strength to the bound edge.This 3:1 Wire Binding Machine will bind up to 135 sheets. The closure control guarantees quick and exact wire closing.
Product Details
- Most heavy duty punch in its class
- Binds up to 280 sheets
- Closure control guarantees easy ring wire closure for perfect presentations every time
- Gauge to alter margin for a stronger bind
- Special hardened punch pins for long lasting life
- Staggered punching pins for better punching
- QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3
- Adjustable side lay for perfect punching registration
- Easy to empty sliding waste tray
- Measures the document or ring wire size
- Heavy duty construction & compact design
Specifications
- Punching Capacity: 17,000 sheets/hr
- Min. Punching Width: 10 mm
- Max. Punching Width: 340 mm
- Min. Unpunched Length: 50 mm
- Max. Unpunched Length: 500 mm
- Max. Punching Thickness: 2.5 mm
- Punching Operation: Electric
- Punch Dies Available: Square 4 x 4 mm
- Pitch: 3:1
- Selectable Punch Pins (QSA): Yes
- Variable Margin Depth: Yes
- Binding Thickness: 1 - 13.5 mm
- Binding Element Ø: 5.5 - 16 mm (3/16" - 5/8")
- Min. Binding Width: 10 mm
- Max. Binding Width: 340 mm
- Binding Operation: Manual
- No. of Books: 250 Output/hr
- No. of Calendars: 200 Output/hr
- Machine Dimensions (L x W x H): 510 x 540 x 250 mm
- Machine Weight: 39 kg
- Machine Packing Dimensions (L x W x H): 630 x 600 x 340 mm
- Machine Weight with Packing: 43 kg
- Power Requirement: 230/250V / 50Hz / 250W or 115/200V / 60Hz / 250W
- Warranty: 1 Year Manufacturer Warranty
- Part Number: RZERW
