Product Description

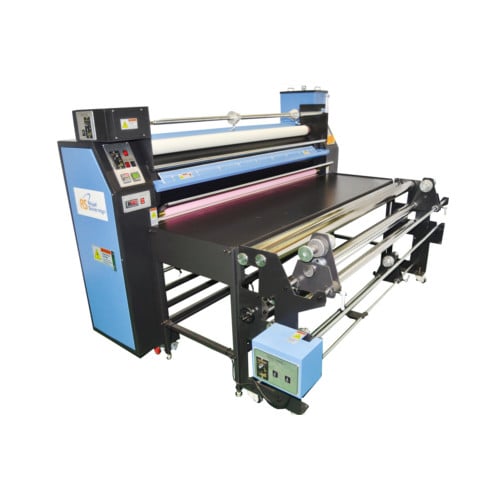

Whether you are first starting out in the dye sublimation category or have been working with Royal Sovereign CX-180 65" Calender Heat Transfer System With 10" Infra-Red Quartz Drum for years the InPressline of calenders have been specifically designed and crafted to fit your needs. The InPressline of calenders features one roll to roll production. With the option of a 10”ø infra-red, at a thirty second exposure time, speeds of up 2.3 ft./min. can be achieved. The sturdy steel construction and anti-ghosting feature makes the InPresscalender the right choice for dye sublimation transfer needs.
Product Details
- Extra-long infra-red quartz heated drum to ensure complete heat distribution and coverage.
- Finely tuned sensors to ensure consistent temperatures throughout the transfer process.

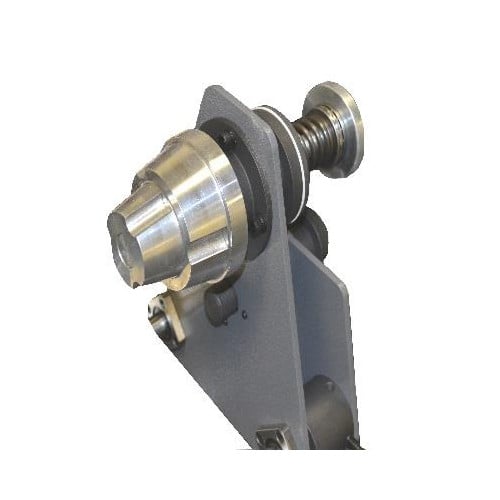

- Universal core adapters and shaft-less unwinding technology.
- Easy to reach front and rear facing emergency stops.
- Emergency Reverse.
Specifications
- Optimal Transfer Width: 65"
- Drum Diameter: 10"
- Heat Type: Infra-Red
- Max. Temperature:446°F (230°C)
- Max. Speed: 5.4 ft./min.
- 40 sec. Exposure: 1.8 ft./min.
- 30 sec. Exposure: 2.3 ft./min.
- Warm Up Time: 1 Hr.
- Cool Down Time: 2 Hr.
- Prog. Preheat Timer: Yes
- Stand-by in Preheat: 2 Hr.
- Drive Belt Tension Control: Mechanical

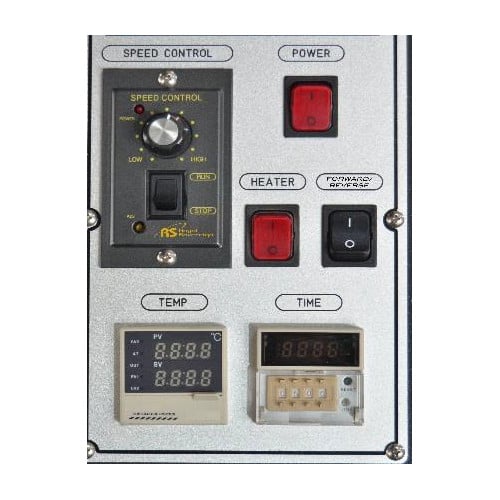

- Temp. and Speed Display: Digital
- Emergency Reverse: Yes
- Safety Features: Emergency Stop
- Drum Length: 71"
- Max. Roll Diameter: 8"
- Drive Belt Material: Nomex
- Drive Belt Width: 71"
- Drive Belt Centering: Automatic
- Anti-Ghosting: Yes
- Feeding Conveyor System: N/A
- Out Conveyor System: N/A
- Power Requirements: 3 Phase 240V 15A
- Wattage: 6KW
- Certification: CE
- Dim. w/ Feeding Rolls: 91" x 32" x 67"
- Weight: 1543 lbs.
- Table Dimensions: 83" x 24" x 49"
- Table Weight: 99 lbs.
- W/ Table + Feeding Rolls: 93" x 59" x 67"
- Shipping Crate Dimensions: 91" x 37" x 73"
- Shipping Crate Weight: 1764 lbs.
- Warranty:1 Year Warranty on Parts and Labor
- Part Number: CX-180
