Product Description

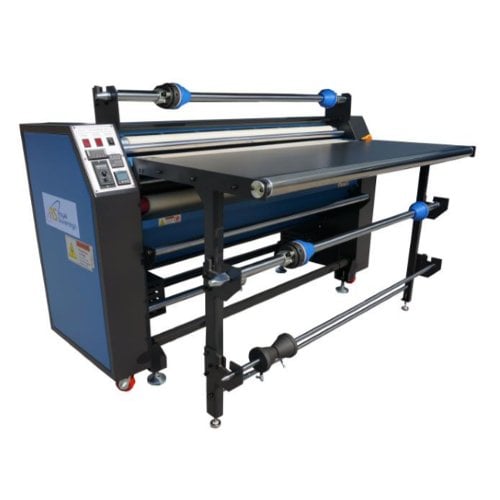

The Royal Sovereign LX-130 is a 45" Piece to Roll Calender with an Infra-Red Heated 10”ø Drum. The LX-130 is a versatile 3-in-1 solution for dye sublimation transfer, 3 feeding and 3 rewinding mandrels combined with a top of the drum feed process that allow users to perform Piece, Piece-to-Roll and Roll-to-Roll transfer at a rate of 2.7 ft./min.(.8 m./min.). With little practice, an operator will easily be able to outperform a tradition clamshell, swing away or shuttle press at a rate of 3 cut pieces to 1. Utilizing the same 10”ø drum as the InPress line of dye sublimation calenders, the Royal Sovereign LX-130 45" Calender Heat Transfer System is the smart choice for entry into the 45" dye sublimation market.
Product Details
- Optimal Transfer Width: 45" (1140 mm)
- Drum Diameter: 10" (260 mm)
- Max. Temperature: 446°F (230°C)
- Max. Speed: 5.4 ft./min. (1.65 m/min.)
- 40 sec. Exposure: 2.2 ft./min. (.66 m./min.)
- 30 sec. Exposure: 2.7 ft./min. (.82 m./min)
- Warm Up Time: 1 Hr.
- Cool Down Time: 2 Hr.
- Prog. Preheat Timer: Yes
- Stand-by in Preheat: 2 Hr.
- Drive Belt Tension Control: Mechanical
- Temp. and Speed Display: Digital
- Emergency Reverse: Yes
- Safety Features: Emergency Stop
- Drum Width: 51" (1300 mm)
- Max. Roll Diameter: 7.9" (200 mm)
- Drive Belt Material: Nomex
- Drive Belt Width: 51" (1300 mm)
- Drive Belt Centering: Automatic
- Anti-Ghosting: Yes
- Power Requirements: 1F 220V 25A
- Wattage: 5.5 Kw
- Certification: CE
- Dimensions: 72" x 47" x 49" (1820 x 1184 x 1235 mm)
- Weight: 992 lbs. (450 kg.)
- Table Dimensions: 59" x 22" x 33" (1500 x 555 x 850 mm)
- Shipping Crate Dimensions: 78" x 35" x 59" (1980 x 900 x 1500 mm)
- Shipping Crate Weight: 1146 lbs. (520 kg.)
- Warranty:1 Year Manufacturer's Warranty
