Product Description

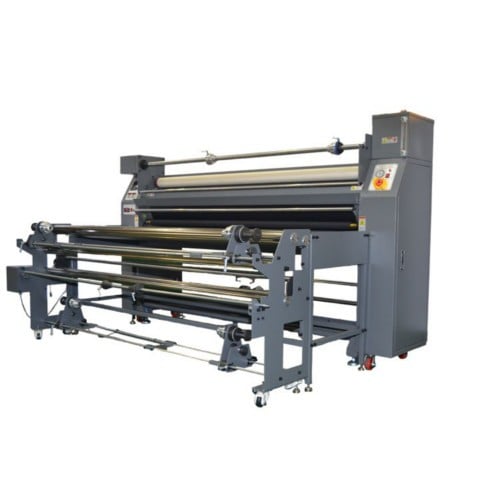

This Versatile Royal Sovereign RHCI-2135 77" Calender Heat Transfer System With 14" Infra-Red Quartz Drum offers the functionality to perform dye sublimation transfer on roll to roll with the versatility to handle piece production. A 14"ø infra-red drum will provide a stable and continuous heat distribution ensuring a quality transfer every time. Digital temperature displays and user friendly controls allows a novice to become a master at dye sublimation transfer.
Product Details
- Extra-long infra-red quartz heated drum to ensure complete heat distribution and coverage.
- Finely tuned sensors to ensure consistent temperatures throughout the transfer process.

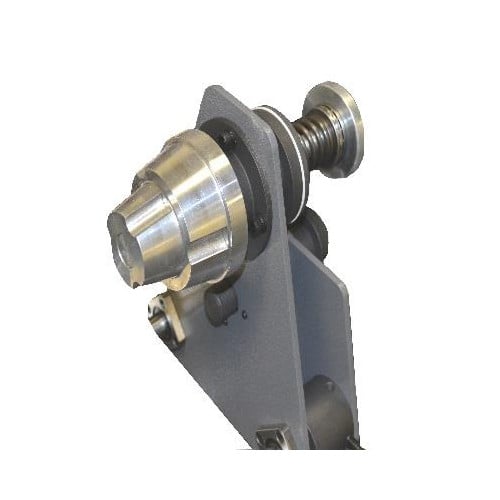

- Universal core adapters and shaft-less unwinding technology.
- Easy to reach front and rear facing emergency stops.
- Emergency Reverse.
Specifications
- Optimal Working Width: 77"
- Drum Diameter: 14"
- Max. Temperature:446°F (230°C)
- Max. Speed: 7.2 ft./min.
- 40 sec. Exposure: 2.5 ft./min.
- 30 sec. Exposure: 3.3 ft./min.
- Warm Up Time: 1 Hr.
- Cool Down Time: 2 Hr.

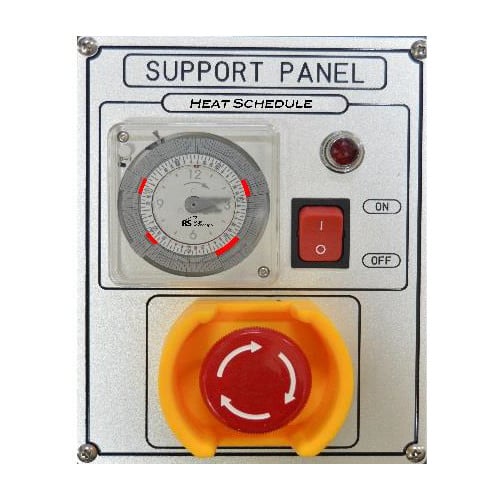

- Prog. Preheat Timer: Yes
- Stand-by in Preheat: 2 Hr.
- Drive Belt Tension Control: Mechanical

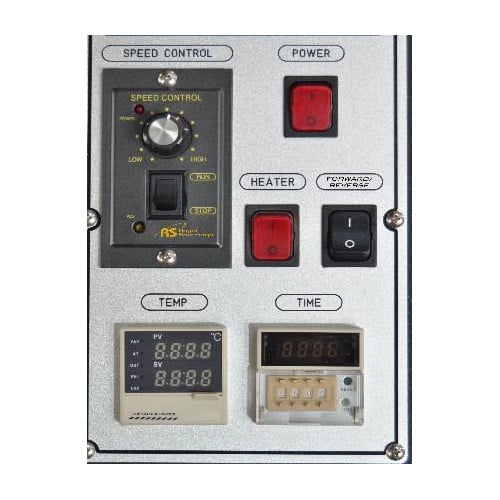

- Temp. and Speed Display: Digital
- Emergency Reverse: Yes
- Safety Features: Emergency Stop
- Drum Length: 83"
- Max. Roll Diameter: 8"
- Drive Belt Material: Nomex
- Drive Belt Width: 83"
- Drive Belt Centering: Automatic
- Anti-Ghosting: Yes
- Feeding Conveyor System: N/A
- Out Conveyor System: N/A
- Power Requirements: 3 Phase 240V 120A
- Wattage: 50KW
- Certification: CE
- Dimensions: 104" x 37" x 67"
- Weight: 1984 lbs.
- Table Dimensions: 95" x 24" x 49"
- Table Weight: 121 lbs.
- W/ Table + Feeding Rolls: 104" x 59" x 67"
- Shipping Crate Dimensions: 112" x 51" x 73"
- Shipping Crate Weight: 2535 lbs.
- Warranty:1 Year Warranty on Parts and Labor
- Part Number: RHCI-2135
