Product Description

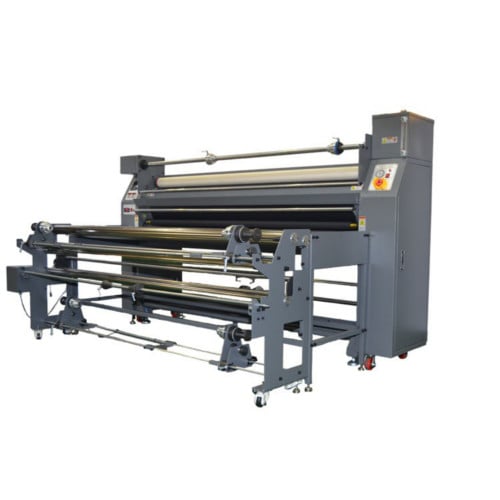

The Royal Sovereign RHCO-1835 67" Calender Heat Transfer System With 22" Oil Drum is versatile, dependable and built to last. With a roll to roll heat transfer rate of 9.8ft./min. / 3234 ft²/min. and the flexibility to attach a feeding table for single piece production, this Royal Sovereign calender heat transfer system will be able to handle nearly any job in the heat transfer sector. The unique free floating universal core adapter system, saves time and eliminates the need to change out core adapters between jobs. It features a 22" diameter oil filled drum provides for a stable and continuous heat distribution ensuring a quality transfer every time. Also, capable of reaching temperatures of up to 446°F, and extra wide Nomexdrive belts, a consistent and vibrant transfer is achieved every time.
Product Details
- Optimal Working Width: 67"
- Maximum Temperature: 446°F (230°C)
- Maximum Speed: 9.8ft./min. / 3234 ft²/min.
- Heat System: Self-Contained Oil
- Warm Up Time: 1 Hour
- Temperature Sensor: Infra-Red
- Programmable Pre-Heat: Yes
- Controls: Digital Heat Controls
- Emergency Reverse: Yes
- Auto Cooling System: Yes
- Cool Down Timer: Up to 3 hours
- Drum Diameter: 22""
- Drum Length: 71"
- Drum Pressure: Pneumatic
- Feeding System: 2 Shaft-less Universal Core Adapters + 1 TraditionalShaft
- Take-up System: 3 Traditional Shafts w/ Universal Core Adapters
- Idle/Tension Bars: 6
- Maximum Roll Diameter: 8”
- Belt Material: Nomex
- Belt Width: 71"
- Belt Centering System: Automatic
- Electrical Certification: CE
- Power Requirements: 3Phase 240Vac, 77A
- Power Consumptions: 32 Kw
- Dimenisons (L X W X H): 100" X 85" X 79"
- Weight: 4200 lbs.
- Table Dimensions (L X W X H): 83" X 24" X 34"
- Table Weight: 99lbs.
- Dimensions w/ Table: 100" X 103" X 79"
- Weight w/ Table: 4299 lbs.
- Shipping Dimensions: 112" X 78" X 83"
- Shipping Weight: 4960 lbs.
- Warranty:1 Year Warranty on Parts and Labor
- Part Number: RHCO-1855
