Product Description

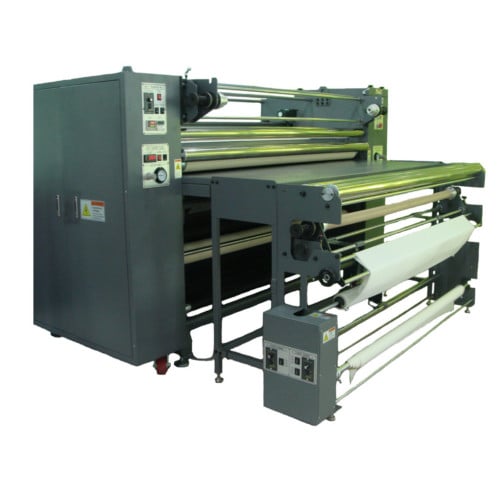

This Designed specifically for high volume piece production the Royal Sovereign RHPI-1835 65" Calender Heat Transfer System With 14" Infra-Red Quartz Drum is engineered to provide comfort and ease of use. The versatility and design allows for the seamless transition between piece production and roll to roll production. The solid heavy-duty steel frame construction and infra-red heating technology makes the Royal Sovereign calender a dependable transfer system you can rely on for years to come.
Product Details
- Extra-long infra-red heated drum to ensure complete heat distribution and coverage.
- Finely tuned sensors to ensure consistent temperatures throughout the transfer process.

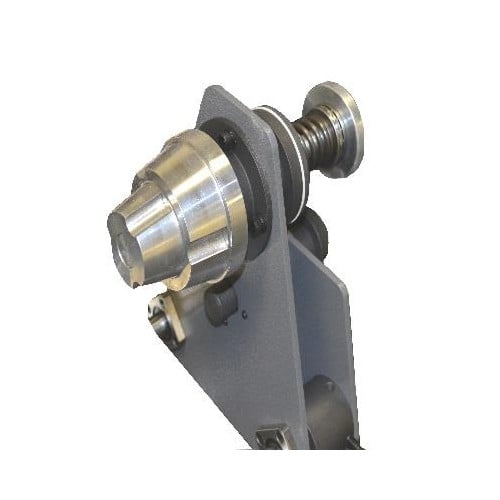

- Universal core adapters and shaft-less unwinding technology.
- Images are permanent and do not peel or fade.
- Bonding of the dye to the synthetic fibers creates extraordinarily vivid colors.
Specifications
- Optimal Transfer Width: 65"
- Drum Diameter: 14"
- Max. Temperature:446°F (230°C)
- Max. Speed: 7.2 ft./min.
- 40 sec. Exposure: 2.6 ft./min.
- 30 sec. Exposure: 3.3 ft./min.
- Warm Up Time: 1 Hr.
- Cool Down Time: 2 Hr.
- Prog. Preheat Timer: Yes
- Stand-by in Preheat: 3 Hr.
- Drive Belt Tension Control: Mechanical

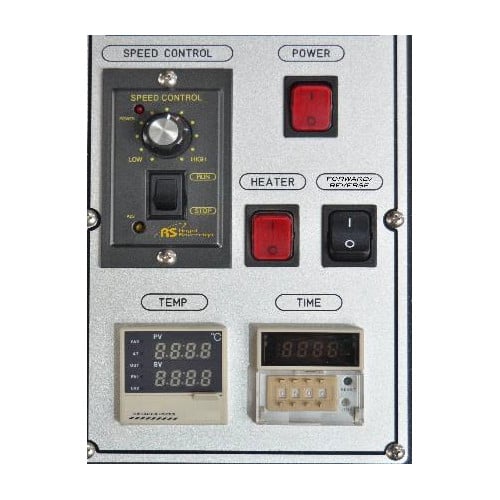

- Temp. and Speed Display: Digital
- Emergency Reverse: Yes

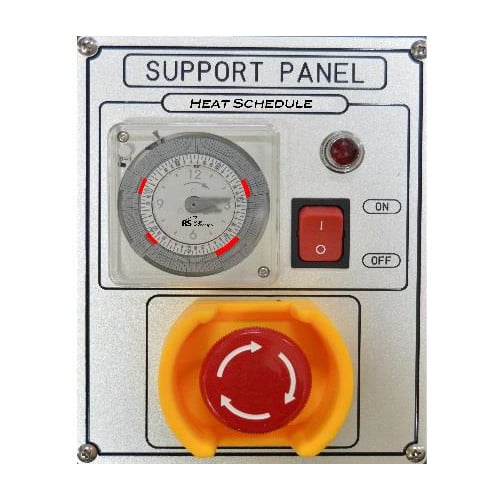

- Safety Features: Emergency Stop
- Drum Length: 71"
- Max. Roll Diameter: 8"
- Drive Belt Material: Nomex
- Drive Belt Width: 71"
- Drive Belt Centering: Automatic
- Anti-Ghosting: Yes
- Feeding Conveyor System: Option to add
- Out Conveyor System: Option to add
- Power Requirements: 3 Phase 240V 22A
- Wattage: 9KW
- Certification: CE
- Dim. w/ Feeding Rolls: 93" x 33" x 67"
- Weight: 1874 lbs.
- Table Dimensions: 83" x 24" x 49"
- Table Weight: 121 lbs.
- W/ Table + Feeding Rolls: 93" x 77" x 67"
- Shipping Crate Dimensions: 98" x 43" x 75"
- Shipping Crate Weight: 2403 lbs.
- Warranty:1 Year Warranty on Parts and Labor
- Part Number: RHPI-1835
