Product Description

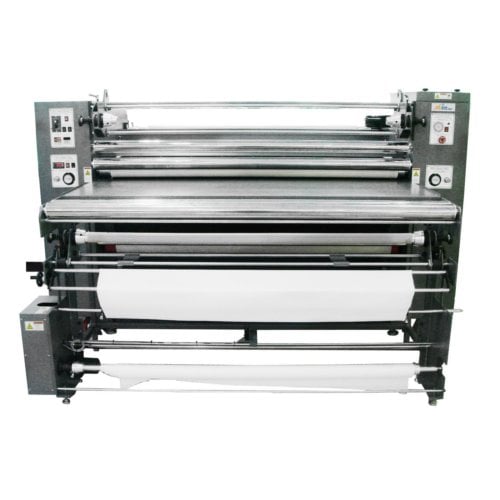

The Royal Sovereign RHPO-1885 67" Calender Heat Transfer System With 34" Oil Drum is specially designed for high volume piece production. With extra-long 34”ø self-contained oil drums, to ensure complete coverage of your project, production speeds of over 11 feet a minute can be achieved. The pneumatic tension control and innovation anti-ghosting technology provides a stable platform to minimize stretching or skewing of your image or pattern. The programmable preheat can be set to begin the preheating process 1 hour before your day begins and with a 3 hour stand-by timer you can rest easy knowing your calender unit will not draw unnecessary power all day. An output conveyor system comes standard and a feeding conveyor system is an optional add-on.
Product Details
- Extra-long self contained oil heated drum to ensure complete heat distribution and coverage.
- Finely tuned sensors to ensure consistent temperatures throughout the transfer process.
- Universal core adapters and shaft-less unwinding technology.
- Images are permanent and do not peel or fade.
- Bonding of the dye to the synthetic fibers creates extraordinarily vivid colors.
- Applications: Soft fabric signage, Trade show graphics, Apparel, Sports Wear, Furniture and more.
Specifications
- Optimal Transfer Width: 67"
- Maximum Temperature: 446°F (230°C)
- Heating System: Self Contained Oil
- Drum Diameter: 34"
- Maximum Speed: 11.2 ft./min.
- 40 Second Exposure: 5.9 ft./min.
- 30 Second Exposure: 7.4 ft./min.
- Display: Digital
- Warm Up Time: 1 hour
- Input Conveyor: Optional Add-On
- Output Conveyor: Included
- Voltage: 240V
- Consumption (Watts): 50000
- Amps: 120A
- Dimensions: 110"(L) x 98"(W) x 75"(H)
- Unit Weight (lbs.): 6415
- Shipping Dimensions: 114"(L) x 86"(W) x 91"(H)
- Crate Weight (lbs.): 6834
- Warranty: 12 month (parts and labor)
- Part Number: RHPO-1885
