Product Description

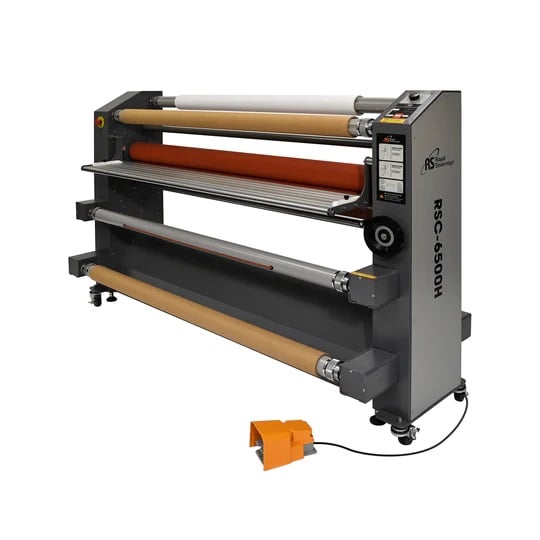

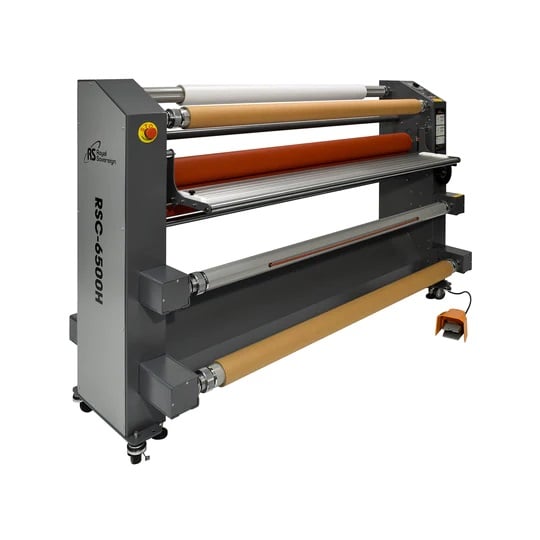

Royal Sovereign RSC-6500H high quality, professional laminators with top roller heat assist capabilities are specifically designed for users to easily and professionally finish wide format graphics such as banners, signs, POP displays, tradeshow graphics, posters, vehicle graphics, and much more. Backed by over 25 years of experience, a Royal Sovereign laminator is a smart option for today’s sign shops. From lamination to mounting you can count on Royal Sovereign laminators to give you years of service and performance.
Product Details
- Fast laminating speeds of up to 28 ft./min.
- Heavy duty construction
- Mounting gap of up to 2”
- Unique FilmSaver system automatically senses when there is no media feeding into the rollers and slows down the rollers to save film waste
- High quality silicone rubber rollers

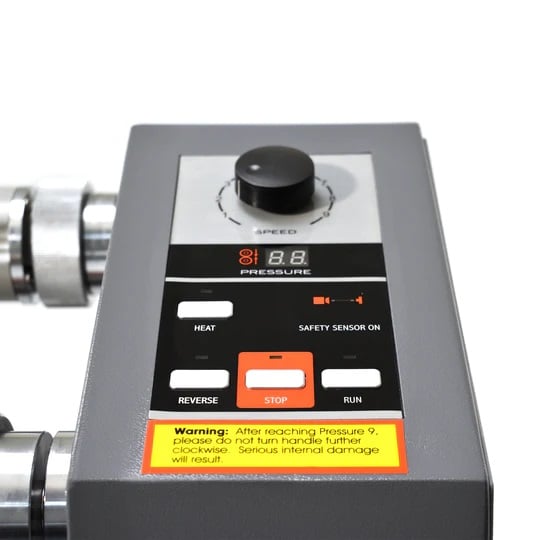

- Easy to use digital controls
- Handles rolls of film and media up to 15” diameter
- Foot pedal for hands-free operation
- Simple easy to access controls and a foot pedal for hands-free operation
- Built-In front feeder and 2 rewinders (front and rear)
Specifications
- Max laminating width: 65"
- Max Mounting Gap: 2"
- Max Laminating Speed: 28ft/min.
- Speed Control: Yes
- Transport Type: 2 Rollers
- Front Feeder Assembly: Included
- Wind-Up Assembly: 2 (Front & Rear)
- Foot Pedal: Yes
- FilmSaver System: Yes
- Reverse: Yes
- Leveling Legs: Yes
- Hot Lamination Capable: No
- Cold Lamination Capable: Yes
- Encapsulation: No
- Nip Adjustment: Infinite
- Feed Table: Flip Up Type
- Heat Assist Top Roller: Yes (122°F)
- Release Liner Take Up: Yes
- Roller Nip Safety System: Laser
- Maximum Film Roll Diameter: 15"
- Maximum Media Roll Diameter: 15"
- Power Supply: AC120V 50/60Hz
- Power Consumption: 1450W
- Unit Weight: 750 lbs.
- Dimensions (HxWxD): 86.6 x 39.4 x 55.1
- Carton Weight: 1080 lbs.
- Carton Dimensions (HxWxD): 90.9 x 34.4 x 70.1
- Film Thickness: 1-10 mil
- Drive Motor: DC geared
- Warm-Up Time (min.): 10
- Adjustable Temperature(min.): Digital up to 122 F
- Take-Up System: Chain link to main motor F
- Cross Cutter: Yes
- Remote Control: Yes
- Document Guidesr: Yes
- Rear Wind-Up Assembly: Yes (Included)
- Front Feeder Assembly: Yes (Included)
- Unit Depth (in.): 86.6
- Unit Width (in.): 55.1
- Unit Height (in.): 39.4
- Voltage: AC 120V / 60Hz
- Consumption (Watts): 1450W
- Manufacturer's Warranty: 1 year part & labor (Rollers 6 months)
