Product Description
This Smooth Mount 27" Pouch Board Roll Laminator is a heated roller, mounter laminator that can mount images on foam board at a speed of up to 5 feet per minute, laminate and mount with pouch boards or encapsulate images with film pouches. Its spring controlled roller automatically adjusts to board thickness (up to 1/4" thick). The Rear Table Extension Legs improve results and productivity. Other great features include variable speed and temperature, digital controls and sensor, clear safety shield for viewing your work being processed, and simple one-step operation. Save time and money by bringing your mounting and lamnating jobs in-house with Smooth Mount 27" Pouch Board Roll Laminator.
Product Details

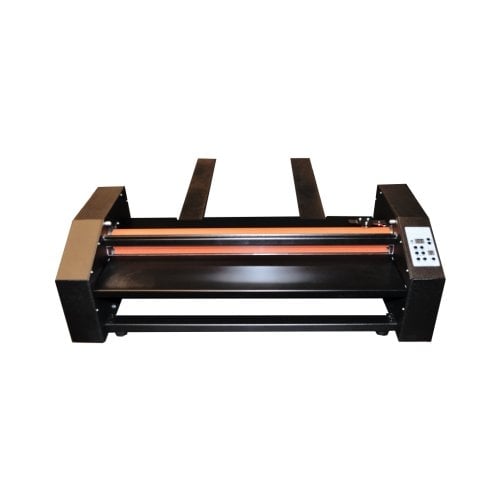

- Rear Table Extension Legs improve results and productivity
- Boards exit unattended and safely cool flat (Patent applied for)
- Attaches securely in seconds without tools
- Stores under laminator to save space when not in use
- Variable Temperature and Speed
- Use with all pouch boards, mounting as well as cold boards

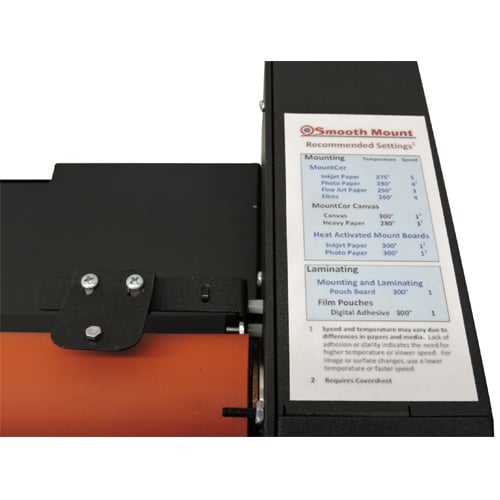

- Reference Guide on laminator for common applications
- Speed from one to five feet per minute
- Temperature from cold to 300 degrees
- Spring controlled roller automatically adjusts to board thickness
- Works with boards up to 1/4" thick
- Roller is silicon coated for easier cleaning

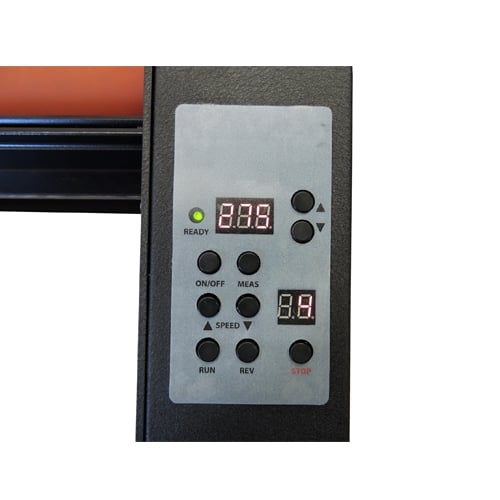

- Digital Controls and Sensor
- Touchless infrared sensor monitors roll surface temperature
- Digital display for both set and actual temperature
- Safety Features
- Clear Safety Shield lets you view your work being processed
- Fuses and adjustments accessed on the surface of the laminator
- Uses standard 110V AC power
Specifications
- Laminating Width: 27"
- Roller Surface for Mounting: 28"
- Housing: PB w/Metal Covers
- Speed Range: 0-10 ft/ min
- Heating Method: Top Heated Roller
- Speed Control: Variable
- Temperature Control: Variable
- Temperature Controlers: Single
- Ready Light: Yes
- Auto Shutoff: Yes (Programmable)
- Reverse Function: Yes
- Mounting Capability: 1/4"+
- Roller Gap Adjustment: Self Adjusting
- Display Type: LED
- Safety Shield: Yes
- Safety Shield Safety Switch: No
- Key Pad Control: Yes
- Warm Up Time: 12 Minutes
- Heat Roller Diameter: 2.5"
- Heater Type: Incoloy
- Power: 120 Volt/60 Htz
- Wattage/Amps: 1200 Watts/10 Amps
- Compatible Supplies: Pouch Boards - Up to 1/4" Thick & 27" Wide
- Actual Machine Dimensions: 36" x 15" x 10"
- Actual Machine Weight: 70
- Shipping Length: 42
- Shipping Width: 21
- Shipping Height: 17
- Shipping (Web) Weight: 80
- Depth w/ Extension Arms: 35 5/8"
- Ships Via: FedEx/UPS
- Country of Origin: USA
- Diameter of Feet (For Cabinets): 31 1/2"
- Warranty: 1 Year
- Feed Table: Painted Feed Tray
- Feed Table Alignment Guide: No
- Feed Table Safety Switch: No
- Rear Exit Table: Painted Feed Tray
- Rear Exit Table Extentions: 2 x 26"
- Compatible Supplies: Up to 1/4"Mounting Board, 27" Pouch Laminate
