We're sorry, but we no longer offer this item.
Call us at 1-800-944-4573 for personalized recommendations
check out these similar items that may be a good fit
Product Description

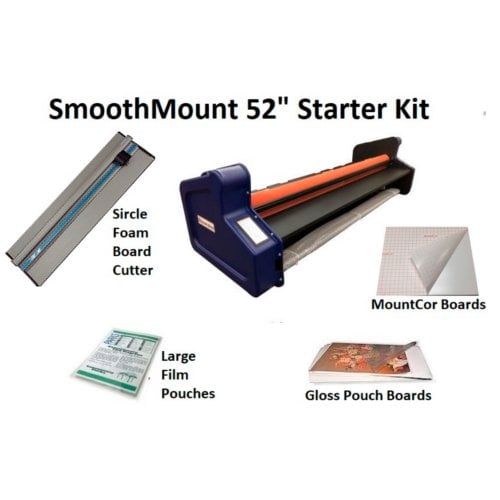

This starter kit is everything you need to start mounting and laminating. It comes complete with the (1) 52” Smooth Mount Laminator, , Sircle 60” Foam Board Cutter, 25" X 37" White Gloss 3/16" MountCor Pouch Boards (10pk), MountCor Pouch Boards, 25" x 37" White 3/16" MountCor Low Temp Heat Activated Mounting Boards (10pk), and 5mil 18.5"x 24.5 Laminating Pouches (25pk) . Get yours now and enjoy huge savings!The Smooth Mount 52" Pouch Board Roll Laminator is a heated roller, mounter laminator that can mount images on foam board at a speed of up to 5 feet per minute, laminate and mount with pouch boards or encapsulate images with film pouches. Its spring controlled roller automatically adjusts to board thickness (up to 1/4" thick). The Rear Table Extension Legs improve results and productivity. Other great features include variable speed and temperature, digital controls and sensor, clear safety shield for viewing your work being processed, and simple one-step operation.
Product Details
- Starter Kit Includes:
- 52” Smooth Mount Laminator
- Sircle 60” Foam Board Cutter
- 25" X 37" White Gloss 3/16" MountCor Pouch Boards (10pk)
- 25" x 37" White 3/16" MountCor Low Temp Heat Activated Mounting Boards (10pk)
- 5mil Gloss 18.5"x 24.5 Laminating Pouches with Sled (25pk)
- 52” Smooth Mount Laminator Features:
- Rear Table Extension Legs improve results and productivity
- Boards exit unattended and safely cool flat (Patent applied for)
- Attaches securely in seconds without tools
- Stores under laminator to save space when not in use
- Variable Temperature and Speed
- Use with all pouch boards, mounting as well as cold boards
- Reference Guide on laminator for common applications
- Speed from one to five feet per minute
- Temperature from cold to 300 degrees
- Spring controlled roller automatically adjusts to board thickness
- Works with boards up to 1/4" thick
- Roller is silicon coated for easier cleaning
- Digital Controls and Sensor
- Touchless infrared sensor monitors roll surface temperature
- Digital display for both set and actual temperature
- Safety Features
- Clear Safety Shield lets you view your work being processed
- Fuses and adjustments accessed on the surface of the laminator
- Uses standard 110V AC power
- Rear Table Extension Legs improve results and productivity
Specifications
- Laminating Width: 52"
- Roller Surface for Mounting: 41"
- Housing: HC w/Plastic Covers
- Speed Range: 0-10 ft/ min
- Heating Method: Top Heated Roller
- Speed Control: Variable
- Temperature Control: Variable
- Temperature Controlers: Single
- Ready Light: Yes
- Auto Shutoff: Yes (Programmable)
- Reverse Function: Yes
- Mounting Capability: 1/4"+
- Roller Gap Adjustment: Self Adjusting
- Display Type: LED
- Safety Shield: Yes
- Safety Shield Safety Switch: No
- Key Pad Control: Yes
- Warm Up Time: 12 Minutes
- Heat Roller Diameter: 3.375"
- Heater Type: Incoloy
- Power: 120 Volt/60 Htz
- Wattage/Amps: 2000 Watts/20 Amps
- Dimensions w/o Extension Arms: 63" W x 18.5" H x 20.5" W
- Depth w/ Extension Arms: 46.5"
- Weight/Ship Weight: 145 lbs/198 lbs
- Ships Via: LTL
- Country of Origin: USA
- Diameter of Feet (For Cabinets): 53"
- Warranty: 1 Year
- Feed Table: Painted Feed Tray
- Feed Table Alignment Guide: No
- Feed Table Safety Switch: No
- Rear Exit Table: Painted Feed Tray
- Rear Exit Table Extentions: 2 x 32"
