Product Description

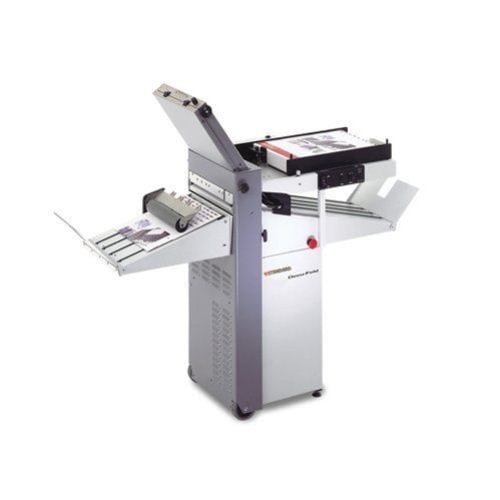

The Standard DocuFold Pro suction-feed folder's innovative design delivers performance that meets the needs of today's rapidly changing print environment. Highly productive and easy to use, the DocuFold Pro makes folding stocks, ranging from lighter weight bonds to coated and card, exceptionally fast, simple and accurate. With its automatic fold positioning, simple reliable feed set-up and unique compact design, the DocuFold Pro is the perfect solution to your rapidly changing folder needs..
Product Details
- Simple and Convenient Operation: The feed tray's automatic paper length sensor measures the size, then calculates the fold plate positions according to the type of fold selected. The automated set-up of the fold plate positions uses six popular standard fold formats, making it easy to accurately set up each job, even with odd length stocks. The fold positions and delivery-stacking roller automatically move to the correct position. For non-standard folds, there are an unlimited number of custome programmable memory positions available. And all of this is easy to read on its 7" SmartScreen. Convenient top loading requires no fanning or special handling for consistent feeding. Each job is neatly stacked along the belt-drive exit conveyor. The batch counter creates an interval between grouped sets.
- Accuracy, Reliability and Versatility: The DocuFold Pro's unique suction transfer table easily handles high gloss paper and curled static-charged stock from digital printers. The register table aligns the paper before entering the fold rollers to ensure that each sheet is fed squarely into the fold rollers. The unique composite material of the folding rollers provides positive grip on a wide variety of stocks without the need for adjustment or frequent cleaning. Each fold, perforation or score will be accurate, sheet after sheet.
- Performance and Productivity: The DocuFold Pro delivers remarkable productivity. With its simple setup, easy loading and reliable feeding combined with sheets feeding at up to 27,500 sheets per hour, the Standard DocuFold Pro is the most productive folder in its class. The Docu-Feed Pro's top-load, bottom-feed; suction-feeding system and high capacity feed tray help to maintain this high level of productivity, with easy continuous reloading. In addition, the DocuFold Pro's suction feed system will not mark or scratch delicate glossy or coated stocks, or smudge digitally printed material.
- Perforating and Scoring: By removing the second fold plate and inserting the perfing/scoring unit, the DocuFold Pro can also serve to perforate, slit or score in minutes.
- 6 Fold Formats: Letter Fold, Half Fold, Double Parallel Fold, Engineering Fold, Z-Fold, Gate Fold
- Optional Rear Exit Conveyor: For applications requiring only a single-fold, perforating or scoring, a simple changeover allows you to bypass the second set of feed rollers. The exiting stock is neatly stacked in the rear delivery tray or the optional rear exit conveyor/stacker as shown.
Specifications
- Maximum Sheet Size: 14.3"L x 26.5"W
- Minimum Sheet Size: 5.5"L x 6.2"W
- Stock Weights: 16lb. Bond to 90lb. Cover
- Folding Speeds: 27,500 sheets/hour (for 8.5" x 11" paper; sizes vary)
- Feed Tray Capacity: Up to 500 Sheets of 20lb. Bond
- Automatic Fold Format: 6 Fold Formats: half, letter, z fold, double parallel, gate and engineering
- Re-programmable Memory: Unlimited
- Fold Plate Length: Manual or Automatic Adjustment
- Standard Features: Digital counter, batch counter (multiples of 10 to 990), overlap detection, test feed mode, exit conveyor stacker, pull-out cassette roller system, skew control, perf/score plug in unit, perforator (56T) and anvil, scorer (type A), rear exit catch tray, emergency stop button, base castors.
- Power: 220V, 60Hz, single phase, 15A
- Net Weight: 260lbs.
- Overall Dimensions: 48.8" x 21.8" x 39"
- Optional Accessories: Perforation and Scoring Blades, Rear Exit Belt Driven Stacker
- Warranty: 1 Year Manufacturer Warranty
