Product Description

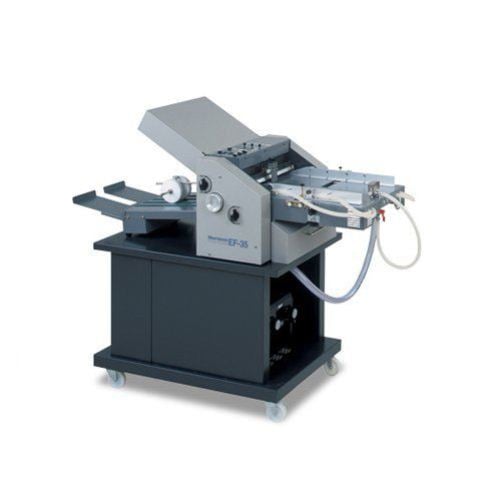

The Standard Horizon EF-35 is the ideal suction feed folder for applications that require precision paper folding, mark-free operation, and high productivity. Its high quality construction, innovative suction feed system, self-compensating fold rollers, dynamic variable speed output conveyor as well as other standard features provide years of dependable performance at high production levels. Speed, reliability and versatility combined with a compact design makes the Standard Horizon EF-35 an exceptional suction feed folder. With its top-load bottom-feed suction feed system and fast set-up and changeover, the EF-35 delivers speeds of up to 30,000 sheets per hour. It is a standout in the suction folder market in overall performance and with its impressive list of standard features, including an innovative dual-pump suction feed system, selfcompensating fold rollers, sound enclosures, batch counting, and dynamic variable speed output conveyor.
Product Details
- Innovative Feed System: A dual-pump system and adaptable feed controls provide superior paper feed control and performance. The vacuum and air pressure separation systems operate independently with dedicated pumps. The operator can select feed refinements on selected stocks by setting the feed-gap and suction interval controls to increase productivity. A key result of this superior feed system is the ability to confidently feed a broad range of stocks, including statically charged sheets. The EF-35 expands the range of precision paper feed control and delivers high reliability on heavy-duty applications.
- Precision Folding: Using a combination of rubber and steel folding rollers with a selfcompensating gap mechanism, the EF-35 creates a positive grip control on each sheet producing exceptional fold consistency and quality. Each of the two fold plates provides both coarse and micro adjustment capabilities for the panel length and a skew control to enable accurate folding of wavy and distorted sheets.
- Sound Reduction and Control: Standard with the EF-35 is a heavy-duty castor-mounted stand and sound enclosures for the fold plates. The two pumps are housed within the stand for increased sound reduction and easy repositioning of the EF-35.
- State of the Art Features: A built in digital batch counter, jam detection and adjustable speed controls for the paper feed and exit conveyor, add to the versatility of the EF-35. The adjustable speed output conveyor improves operator efficiency by preventing the nesting of folded sheets. The variable speed feed control adds further feed reliability and increases productivity on a wide variety of stocks.
- Operator Efficiency: Maintain optimal productivity by selecting one of the operating modes on the adjustable speed output conveyor to assure efficient stacking.
- Quiet Operation: Sound Enclosures on the EF-35 on the upper and lower fold plates are standard features along with batch counting controls.
Specifications
- Folding Method: Buckle (2-fold plate) Manually Adjusted
- Roller Composition: Combination (1 steel, 2 rubber)
- Maximum Sheet Size: 13.7"W x 25.5"L
- Minimum Sheet Size: 2.2"W x 2.8"L
- Maximum Fold Length: 13.7"
- Minimum Fold Length: 1.6"
- Sheet Weight Range: Bond/Xerographic 12-65 lb., Cover 17-90 lb.
- Warranty: 1 Year on Mechanical Parts and Motors / 90 Days on Electrical Components
- Folding Speed: Variable Speed Control Up to 30,000/hr (8
