Product Description

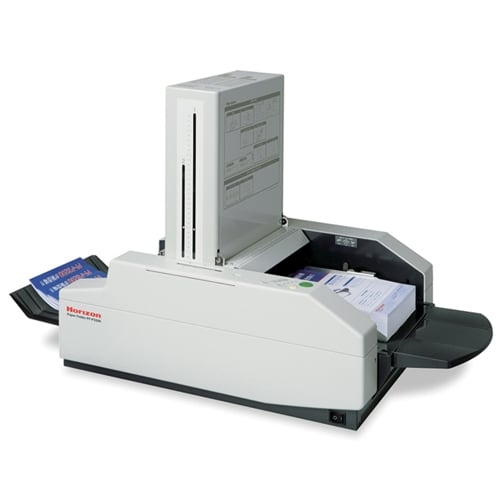

The PF-P3200 paper folder brings great automation to a versatile friction feed tabletop folder. The push-button set up reacts quicker and quieter than other auto set folders. Feeding capacity of up to 500 sheets, and speed control that enable up to 240 sheets per minute folding makes the PF-P3200 well suited for any busy operation from a small office to large commercial print houses. Folding rollers can be easily removed for cleaning or sheet removal without the need for specialized training or tools.
Product Details

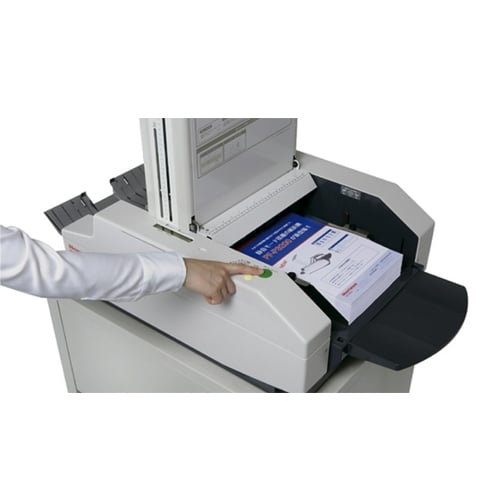

- Automatic Setup with Simple Operation. Does not require advanced operator skills for setup. Each section is automatically set by selecting sheet size and fold pattern using the operation panel. Six standard fold patterns are available at the press of a button.
- High-speed Folding - 240 sheets/min.Even high volume direct mail jobs or urgent jobs can be handled with high productivity at maximum production speeds of 240 sheets per minute (A4 / 8.5" x 11" - single fold).
- Short Make-ready. Setup time is reduced dramatically and accuracy of the setup is improved with an accurate stepper motor.
- Selective Speed Mode for Comfortable Operation. Silent, Standard, High-Speed and Ultrahigh-Speed
Specifications
- Sheet Size: Max. 311(W) x 432(L) mm (12.24" x 17.00") or Min. 65(W) x 90(L) mm (2.56" x 3.55")
- Matrix Size: A3, A4, B4, B5 (11" x 17", 8.5" x 11", 8.5" x 14", 5.5" x 8.5")
- Sheet Weight Range: Normal Paper 53 to 157 gsm
- Maximum Pile Height: Max. 55 mm (2.16") (Normal Paper 64 gsm / 550 sheets)
- Fold Patterns: Single Fold, Double Fold, Short Fold, Accordion Fold, Letter Fold, Open Gate Fold
- Production Speed: Max. 240 sheets/min. (A4/Letter size - Single Fold)
- Other Function: Total Counter (Up to 9,999), Preset Counter, Fold Position Memory, Function, Silent Mode, Feed Interval Adjustable
- Voltage / Frequency: Single Phase 100 / 115 / 230 V, 50 / 60 Hz
- Rated Current: 100 V, 50 Hz, 0.9 A / 60 Hz, 1.0 A or 115 V, 50 / 60 Hz, 0.9 A or 230 V, 50 / 60 Hz, 0.5 A
- Power Consumption: 100 / 115 / 230 V, 50 Hz, 90 W / 60 Hz, 100 W
- Heat Output: 540 kJ (130 kcal)
- Motors: 50 W x 1
- Machine Dimensions: Main Body is 1,000(W) x 517(D) x 623(H) mm (39.4" x 20.4" x 24.6") or Pedestal with Wheel is 642(W) x 553(D) x 670(H) mm (25.3" x 21.8" x 26.4")
- Noise Level: LA peak : 88.6 dB / LAeq : 83.1 dB (A3 - 64 gsm - Double Fold - High Speed)
- Machine Weight: 38 kg (83.8 lb)
- Manufacturer's Warranty: 1 Year on Mechanical Parts and Motors / 90 Days on Electrical Components
- Part Number: PF-P3200
