Product Description

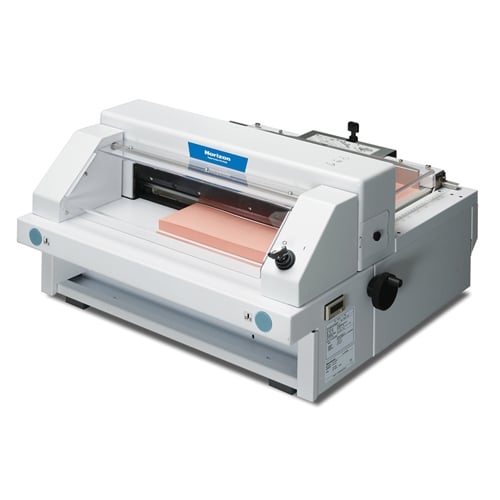

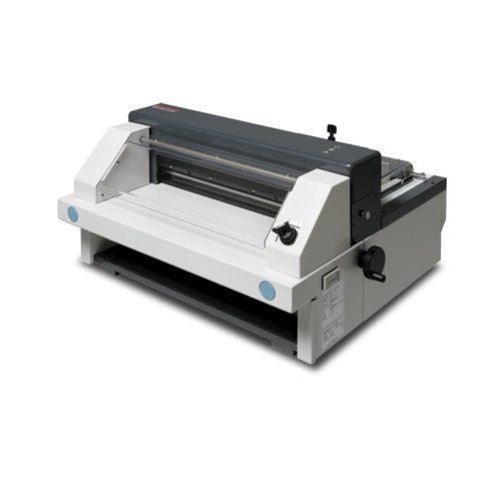

The PC-P430 Electric Paper Cutter's unique features make it a standout in the desktop paper cutter market. The cutter's compact design, automatic operation and ability to handle nearly an inch of paper in thickness by a full 17" wide make it the ideal solution for small business, schools, churches, copy/duplicating centers, EDP departments and desktop-publishing centers.
Product Details
- Cutting Width: Max. 434 mm (17.08")
- Cutting Height: Max. 23 mm (0.90") (Normal Paper 64 gsm, 250 sheets)
- Feed Depth: Max. 320 mm (12.59") (No limit by backgauge free. However, Max. pile height is 64 gsm, 150 sheets of normal paper.) Min. 50 mm (2.00")
- Clamp: Spring-operated
- Push-out Length: 25 mm (0.98")
- Cutting Speed: 4 sec. (60 Hz) / 4.8 sec. (50 Hz)
- Heat Output: 190 kJ (50 kcal)
- Motors: 90 W x 1
- Machine Dimensions: 675(W) x 600(D) x 375(H) mm (26.6" x 23.7" x 14.8") (No projection)
- Compatible Supplies: Cutting Blade / Cutting Stick
- Machine Weight: 66 kg (145.5 lbs)
- Manufacturer's Warranty: 1 Year Manufacturer Manufacturer's Warranty
Specifications
- Dual Push Buttons:The PC-P430 is activated only when the safety cover is closed and both cutting buttons are simultaneously pressed. The two buttons are sufficiently spaced to ensure operator safety.
- Safety Covers: The cutter is equipped with front and rear safety covers. The front cover includes a safety switch to prevent unsafe operation.

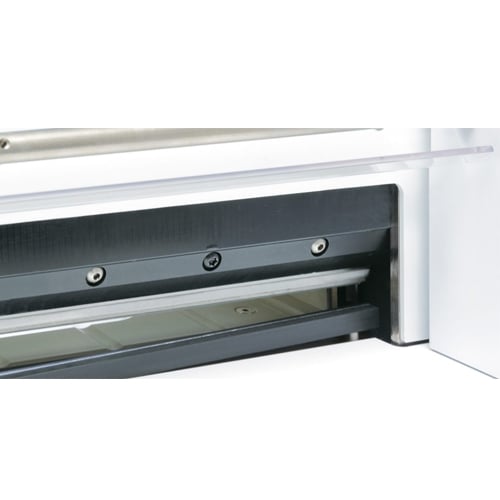

- Press Section: An automatic clamping press moves simultaneously with the cutting knife. A special cutout is provided to prevent book spines from crushing.
- Cutting Line: Illuminated cut line conveniently identifies the cut position for easy sheet positioning
- Cut Stick Lift Lever: The cut stick is easily replaced by using the integrated lift lever.
- Safety Power Key: The power switch can be key activated to limit user access.
- Cutting Knife Counter: Cut cycles are indicated on a digital counter to help determine when the cutting knife should be replaced.

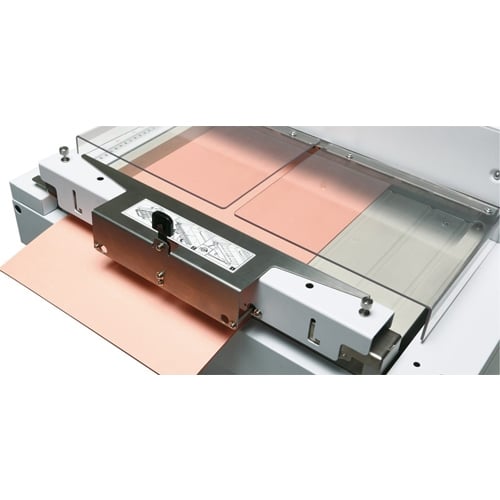

- Backgauge Handle: Backguage position can be adjusted simply and easily using this rotary handle.
- Backgauge Free Mechanism: Sheets longer than 320 mm (12.5") can be trimmed using the backgauge free mechanism.
- Push-out Lever: The operator simply pushes a lever to move cut sheets forward for easy removal, so it is not necessary to move the backgauge.
- Double Lead Screw System: Accurate backgauge raceway keeps the gauge square to ensure accurate cutting.
Compare to Similar Electric Paper Cutters
-
Model NameModelCutting WidthCutting HeightFeed DepthCutting SpeedMachine DimensionsManufacturer's Warranty
-
Standard PC-P430
Max. 434 mm (17.08")Max. 23 mm (0.90") (Normal Paper 64 gsm, 250 sheets)Max. 320 mm (12.59") (No limit by backgauge free. However, Max. pile height is 64 gsm, 150 sheets of normal paper.) Min. 50 mm (2.00")4 sec. (60 Hz) / 4.8 sec. (50 Hz)675(W) x 600(D) x 375(H) mm (26.6" x 23.7" x 14.8") (No projection)1 Year Manufacturer Manufacturer's Warranty -
Standard APC-610
Max - 610 mm / 24.0"100 mm / 3.93" (95 mm / 3.74" using the support plate)Min: 620 mm / 24.4", Max: 25 mm / 0.98" (65 mm / 2.56" using support plate)3.8 seconds per cycle45.6" W x 59.3" D x 58" H (1,156 x 506 x 472 mm) -
Standard PC-640
640mm / 25.19"70mm / 2.75"Min: 20mm / 0.79", Max: 640mm / 25.19"2.8 seconds per cycle (60 Hz)1,070 x 1,185 x 1,315 mm / 42.2" x 46.7" x 51.8" -
Standard PC-450
4446mm (17.5")70mm (2.7")Max 450mm (17.7"), Min. 20mm (0.78")2.5 sec/cut31.2" x 31.7" x 46.1"1 Year Manufacturer Manufacturer's Warranty -
Standard APC-450
450 mm / 17.7"60 mm / 2.36"Max. 450 mm / 17.7", Min. 40 mm / 1.58"9 seconds per cycle (50 Hz) / 8 seconds per cycle (60 Hz)840 x 905 x 1,400 mm / 33.1"x 35.7" x 55.2"
