Product Description

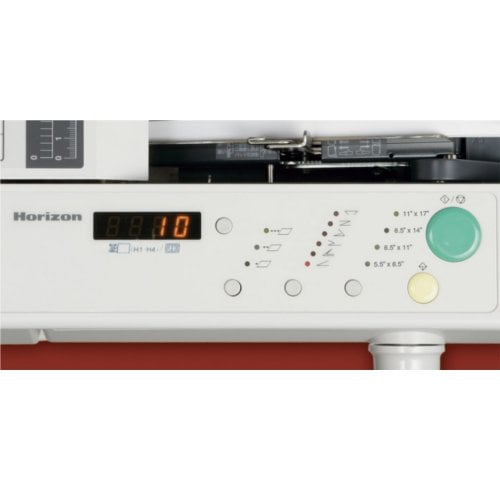

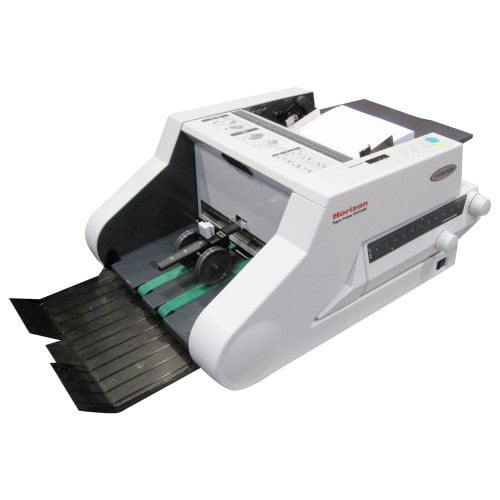

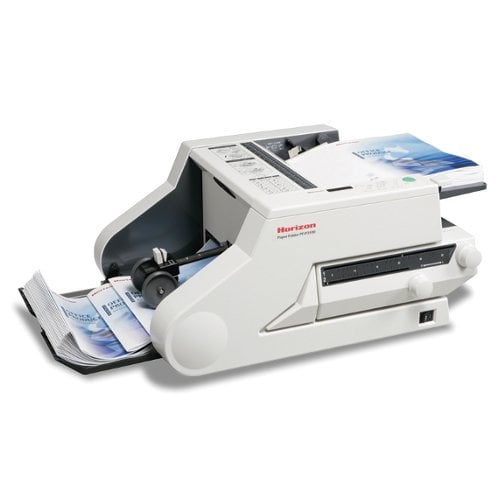

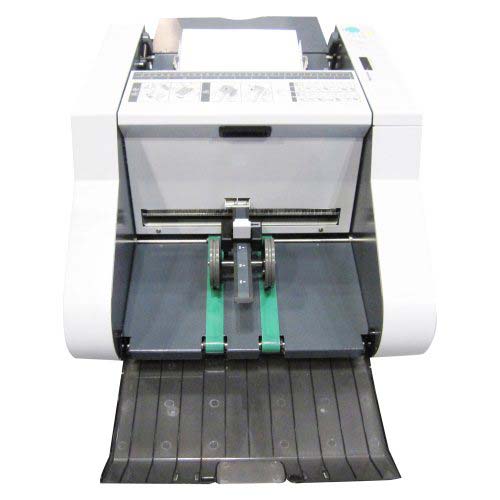

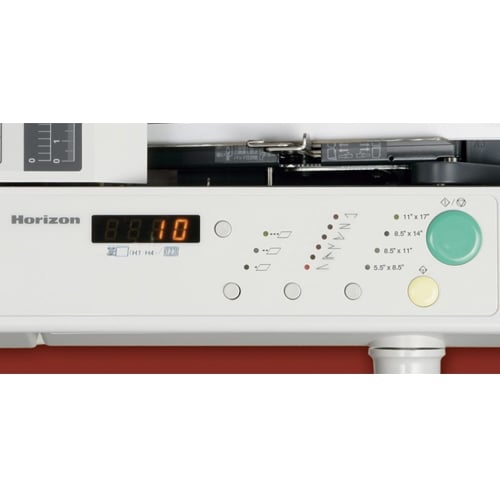

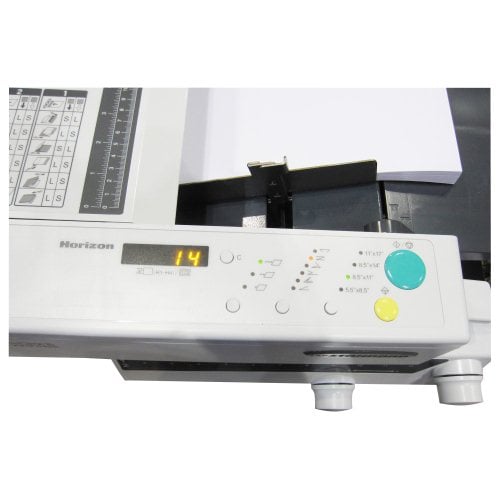

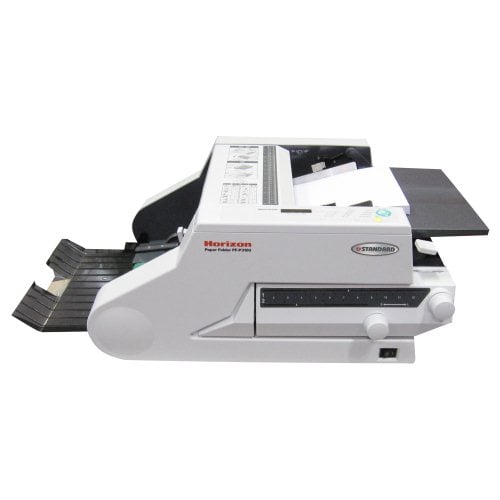

The Standard Horizon PF-P3110 paper folder is an upgraded version of the PF-3100. It offers quick set-up, easy operation and enhanced productivity. High quality engineering and construction and an innovative design make the PF-P3110 an exceptional folder that handles a range of stocks and applications while providing years of reliability. Additionally, the PF-P3100's unique internal fold-plate design and variable speed settings provides enhanced sound reduction control when desired. The PF-P3110's innovative LED assisted manual set-up makes selecting between six preset standard folds and four common paper sizes fast and easy. Simply select a preset paper size and a fold format on the control panel and the LED fold position indicators automatically illuminate the corresponding fold alignment positions. The bright pinpoint settings of the LED system accurately highlights where to manually align each preset fold on the PF-P3110, making set-up a simple task for any operator. Highly productive with feeding speeds up to 240 sheets per minute, the PF-P3110 superior friction-feed system with three speed settings is flexible and reliable. Other key productivity features include a single sheet test feed button to assist set-up and a delivery conveyor to neatly stack folded sheets during production.
Product Details
- High Productivity – Maximum speed of 251 sheets per minute (A4 / 8.5" x 11" single fold)
- Simple Operation – User-friendly operation and tool-free maintenance
- High Quality – Consistent accurate fold
- Useful Function – Speed mode selection: silent (slow) mode, high speed mode, and standard mode
- Ecology – Power saving mode
- Speed Mode Selection
- Silent Mode (Slow Mode). Top level sound deadening design ensures the quiet operation and does not disturb office environment. Suitable to fold thinner sheets.
- High Speed Mode. Maximum folding speed is 140 sheets per minute (A4 / 8.5” x 11” single fold). Suitable to fold thicker sheets. (Maximum 157 gsm)
- Standard Mode. Unique drive control system is used for quieter operation at higher production speed (251 sheets per minute with A4 / 8.5” x 11” single fold).

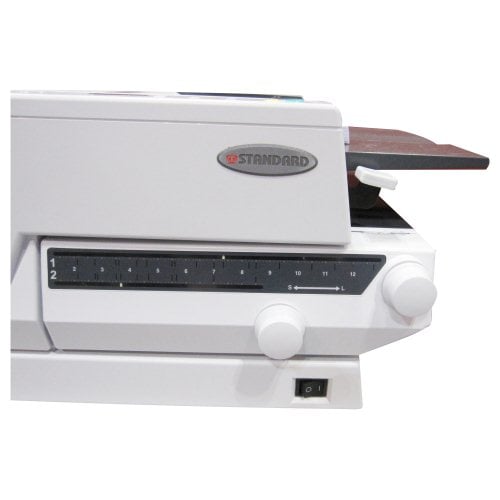

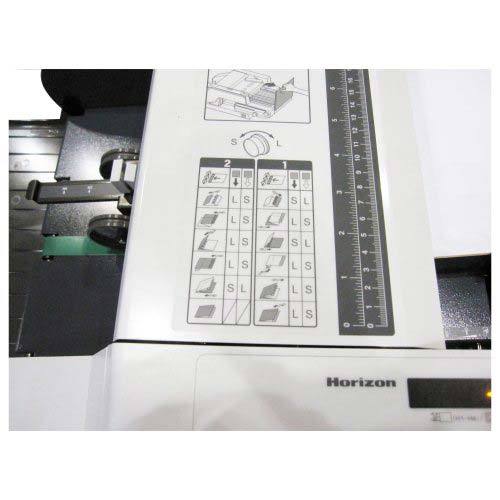

- A Wide Variety of Folding Pattern – Push button controls, LED indicator lamps and simple fold plate adjustment controls allow the operator to quickly and accurately dial in the desired fold.
- Single Fold
- Double Fold
- Short Fold
- Accordion Fold
- Letter Fold
- Gate Fold
- Options
- MT-330 Pedestal With Wheel - The MT-330 includes convenient extra storage space.
- Cross Fold Guide - The guide for cross fold and letter fold.

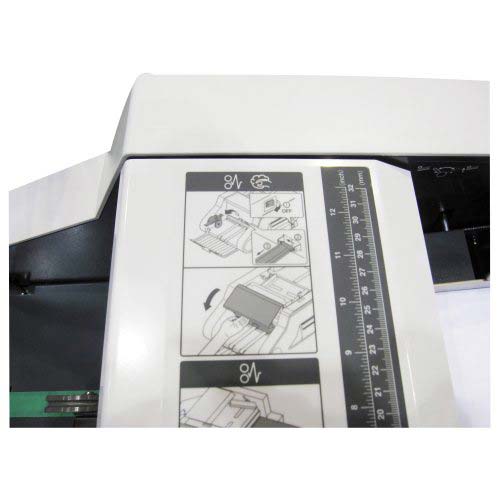

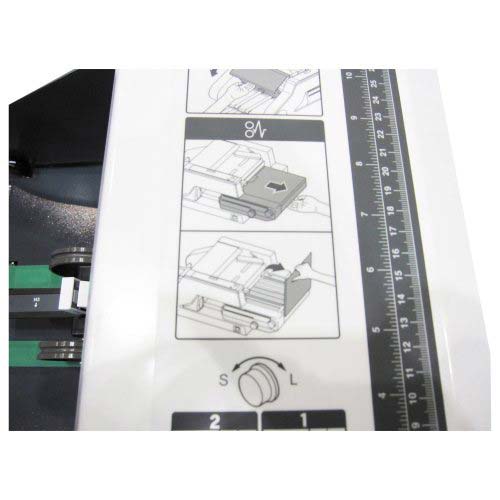

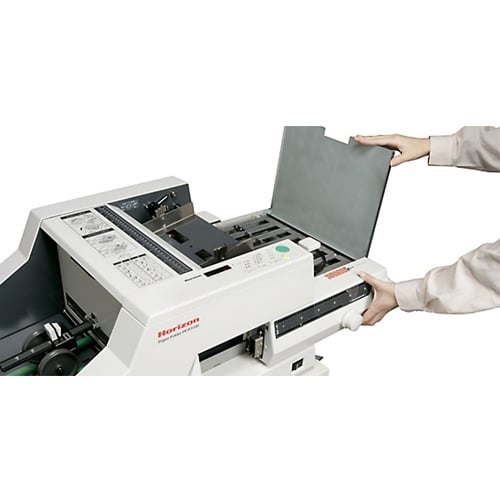

- Simple Maintenance – You can easily change the feed roller and separator pad. Tool-less removal of the buckle plate and the fold rollers makes jam removal or cleaning a simple task.
Specifications
- Installation Type: Table Top
- Sheet Feeding System: Friction system
- Sheet Size (Width x Length ):
- Max. 302 x 430 mm or 11.88" x 17"
- Min. 65 x 108 mm or 2.56” x 4.26”
- A3 / JIS B4 / A4 / JIS B5 /11” x 17” / 8.5” x 14” / 8.5” x 11” / 5.5” x 8.5”
- Sheet Weight Range: Normal Paper - 52 to 128 gsm (Single fold with high speed only is avaialbe up to 157 gsm)
- Feeder Stack Height: Max. 30 mm or 1.18”
- Fold Patterns: Single Fold, Double Parallel Fold, Short Fold, Accordion Fold, Letter Fold, Open Gate Fold
- Production Speed:
- High Speed mode : 251 sheets per minute (A4 / Letter size - Single Fold)
- Standard mode : 140 sheets per minute (A4 / Letter size - Single Fold)
- Silent mode : 84 sheets per minute (A4 / Letter size - Single Fold)
- Voltage/Frequency: Single Phase 100 to 230 V, 50 or 60 Hz
- Rated Current: Single Phase 100 to 230 V, 50 or 60 Hz, 0.9 to 0.4 A
- Machine Dimensions: W948 x D540 x H322 mm or W37.4" x D21.3" x H12.7"
- Machine Weight: 37 kg or 81.6 lb
