Product Description

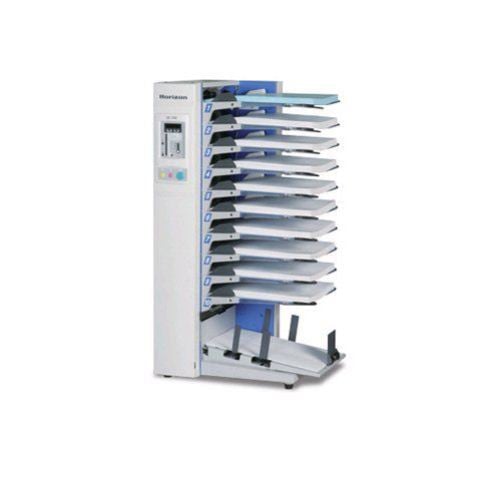

The QC-S30 Collator is one of the worlds fastest tabletop friction feed collators, and can be built into a 3-tower table top friction feed collating system. The modular design of the system allows the flexibility to expand with additional components as production needs grow. The QC-S30's innovative design allow for 10, 20, 30 stations, offers speed and quality construction, and will provide years of superior productivity and reliability. Accessories for the QC-S30 Collator include the PS-P61 Corner Stapler and SPF9/FC-9 and F40 Booklemakers. The QC-S30 Collator incorporates high-performance and full-featured paper-feed detection and programmability in a compact design. With its simple set-up and operation, the QC-S30 is equally well suited in an office or a production-printing environment. Productivity and reliability are achieved in a large variety of set-feed applications. As collating needs grow, the modular design of the QC-S Collators easily expand from a single 10-bin tower, to 20 or 30-bins of high-speed, troublefree collating.
Product Details
- Corner and Side Stapling in a Space-Saving Design: The Optional Model PS-P61 provides corner and side-staple options to a single 10-bin QC-S Collator. The integrated design of the PS-P61 combines the cabinet for the collator and stapler together in one space-saving design. The stapler cartridge holds 5,000 staples and notifies the operator when it's empty.
- Stapling and Folding All-In-One: Connect your QC-S Collator to the MF-1 Stapler/Folder for a highly productive system that finishes sets of up to six letter-sized sheets in a letter fold, letter fold with corner staple or corner staple only format.
- High-Speed Bookletmaking Made Easy: Functional, versatile, and durable, the Model SPF-9 and Model SPF-9A Bookletmakers operate either automatically in-line with either QC-S Collating System or semi-automatically by feeding in the document set manually while in off-line mode. The SPF-9A is a fully automated set-up version of the SPF-9 that allows for push-button set-up in seconds by selecting any of the four popular preset paper sizes. It can also save time on non-standard paper sizes as it has two programmable memory settings. Both the SPF-9 and SPF-9A can staple and fold up to an 80-page booklet at speeds up to 2,100 sets per hour.
- Add Face Trimming: Increase the professional appearance of every finished book without sacrificing productivity by adding the optional in-line face trimmer. Each SPF Bookletmaker has a matching face trimmer that efficiently trims away the shingled uneven lead edges of a folded booklet to ensure the highest-quality appearance.
- Modular Design Adds Versatility: Expandable up to 3 towers, for up to 30 feed bins. The QC-S Collators and the SPF accessories offer unparalleled levels of productivity and versatility. Dual-direction feed capability in a multiple-tower system allows two different jobs to be run simultaneously. Increase productivity by producing booklets on one end while straight or offset stacking on the other. It's simple, clean, highly productive and reliable.
Specifications
- # of Bins per Tower: 10 (Friction-feed)
- Maximum Number of Towers: 3 (10, 20, 30 Stations)
- Bin capacity: 1.1" (200+ sheets 20 lb. bond)
- Sheet Size: 5.5" x 6.9" to 12" x 17"
- PaperWeights: 14 lb. bond to 67 lb. index (53-127 gsm) including NCR, some coated stocks)
- Production Speed(s): Up to 3900 sets/hr (5 sheets) 8.5" x 11"; Up to 2100 sets/hr 11" x 17"
- Set Calibration Button: Sets error detection of active feed bins
- Double Sheet Detection QC-S30: Length Detection
- Error Detection: Miss, Double, and Jam Detection by sheet length, Receiving Tray Full, Transport Door Open
- Receiving Stacker Capacity: 2.96"
- Stacker Capability: Straight and Offset Stacking
- Adjustable Bin Pressure: Yes
- Adjustable Separator Pressure: Yes
- Counter: Total count (Ascending), Preset counter (Descending)
- Optional Accessories: F40 Bookletmaker, MF-1 Mail Folder/Stapler, Collator Stand (MT100), PS-P61, SPF-9(9A), FC-9(9A)
- Power: 115V 60 Hz
- Machine Weight/Dimensions: 139 lbs./23.3"W x 19.5"Dx 39.4
- Warranty: 90 Day Manufacturer Warranty
