Product Description

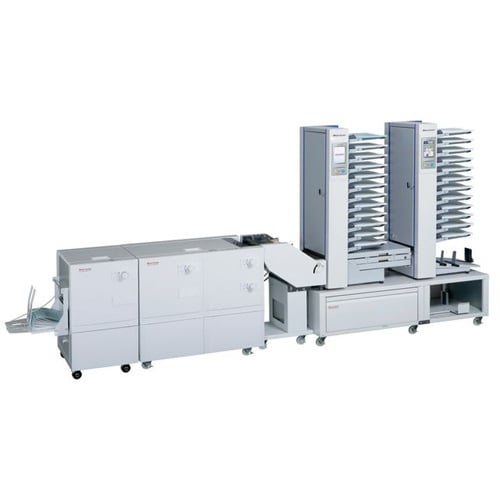

The Standard SPF-P9 bookletmaker is well suited to run both off-line or in-line with the QC-S30/300 collators. Capable of producing booklets at speeds up to 1,980 booklets per hour, the SPF-P9 features simple semi-automatic setup. Changing over to any size sheets from 8.5" x 11" to 11" x 17 is accomplished by rotating the easily accessible control knobs. When working with 8.5" x 11" sheets, finished sets can be stapled and folded, folded only, top or side stapled or top stapled and folded.
Product Details
- Flat finishing. Staples are formed to a flat shape for flat, tidy stacking.
- Robust folding.A strong, rigid folding unit provides smooth, flat folds.
- Professional finishing appearance. The booklets are stapled in the SPF-P9 and finalized in the FC-P9 with a clean, sharp edge trim. Just press the collating start button on the QC-S series and receive neatly finished booklets.
- High productivity with 33 booklets per minute. Ideal for manuals and documents, with speeds that support a wide volume range.
- Easy maintenance. The error monitor informs when to remove a jam or change staples. Easy jam clearance so you can restart jobs quickly.
Specifications
- Functions: Bookletmaking, Top/Side Stapling, Folding only, Top Stapling and Folding
- Sheet Size: Max. 320(W) x 450(L) mm (12.59" x 17.71") or Min. 182(W) x 257(L) mm (7.17" x 10.12")
- Matrix Size: SRA3 / A3 / A4 / 8.5" x 11" / 8.5" x 14" / 11" x 17" or Bookletmaking is SRA3 (Manual Feed Only) / A3 / A4 / 11" x 17" / 8.5" x 11" / 8.5" x 14" or Top/Side Stapling is A4 / 8.5" x 11" or Folding Only is SRA3 (Manual Feed Only) / A3 / A4 / 11" x 17" / 8.5" x 11" / 8.5" x 14" or Top Stapling and Folding is A4SEF / 8.5" X 11"SEF
- Sheet Weight Range: Normal Paper is 64 to 127.9 gsm or Coated Paper is 104.7 to 157 gsm (Manual Feed Only)
- Staple Thickness: Bookletmaking is 2.5 mm (0.098) (25 sheets of 81.4 gsm normal paper) or Top/Side Stapling is 3 mm (0.11") (30 sheets of 81.4 gsm normal paper)
- Fold Thickness: 2.5 mm (25 sheets of Normal Paper 81.4 gsm)
- Staple Distance: Fixed 120 mm (4.7")
- Stapling WIre: Cartridge Type (5,000 staples/cartridge)
- Receiving Capacity: 40 books (A3, 10 sheets of Normal Paper 81.4 gsm, Bookletmaking)
- Production Speed: Max. 33 booklets/min.
- Voltage/Frequency: Single Phase 100 V, 50 / 60 Hz 115 V, 50 / 60 Hz 230 V, 50 / 60 Hz
- Power Consumption: 100 V, 50 / 60 Hz, 580 / 620 W 115 V, 50 / 60 Hz, 590 / 620 W or 230 V, 50 / 60 Hz, 740 / 770 W
- Machine Dimensions: Stand Alone is 900(W) x 660(D) x 796(H) mm (35.4" x 26.0" x 31.3") or With Delivery Tray is 1,270(W) x 660(D) x 796(H) mm (50.0" x 26.0" x 31.3")
- Machine Weight: 154 kg (340 lb)
- Warranty: 1 Year on Mechanical Parts and Motors / 90 Days on Electrical Components
- Part Number: SPF-P9
