Product Description

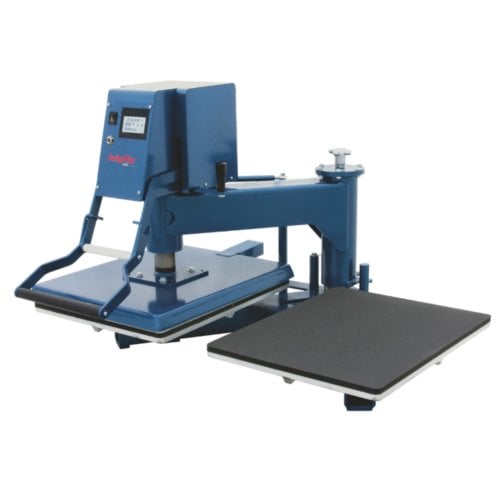

The HIX SwingMan 20 Twin heat transfer machine is our answer to the burgeoning sublimation and specialty transfer industry. This heavy-duty swing-away press features the innovative dual lower platen system that is interchangeable with smaller or custom lower platen systems.
Product Details
- The large 16" x 20" platen surface allows for garments up to XXL and the ability to press ceramic tiles, puff transfers, hot split transfers, glass cutting boards, rhinestones, license plates, garments, mouse pads, plaques, and more!
- Dual self-leveling lower platens remain stationary while the heat element swivels between the two, eliminating the risk of transfer or substrate movement associated with some shuttle systems. Uneven pressure is eliminated with the self-leveling design of the lower platens.
- Optional 220 Volt/ 2000 Watts/ 10 amps is available.
- Integrated touch-screen controller with digital time and temperature function.
- Applies all type transfers on items up to 1-3/4" thick.
- Full range pressure adjustment.
- Easy open/close handle – easy swing-away motion.
- Lifetime warranty on heating element.
- Two 16" x 20" heavy duty, swing-away platens.
- Interchangeable with 15"x 15" or custom-made lower platen.
- Dual bottom platens allow you to lay out products/transfers while other side is transferring.
- On/off switch calibrated thermostat that can be set from off to 450ºF.
- 1-year warranty on the press.
- Nema 5-15P Standard Plug.
Specifications
- Dimensions: W 43" x H 35" x D 49"
- Heat Platen Size: 16" x 20"
- Weight Shipping: 284 lbs.
- Warranty: 1-Year on the press / Lifetime warranty on heating element
- Part Number:MY04HIXSWING20D
