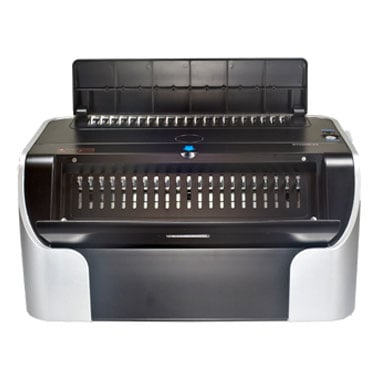

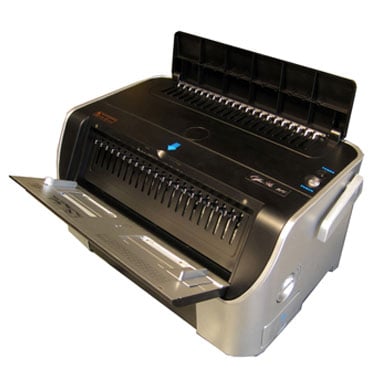

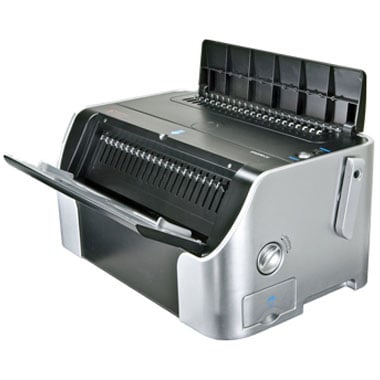

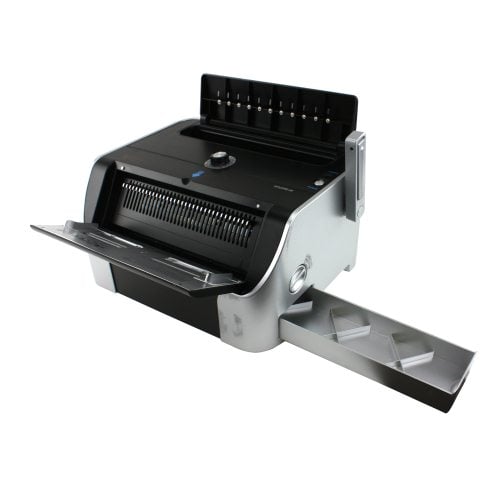

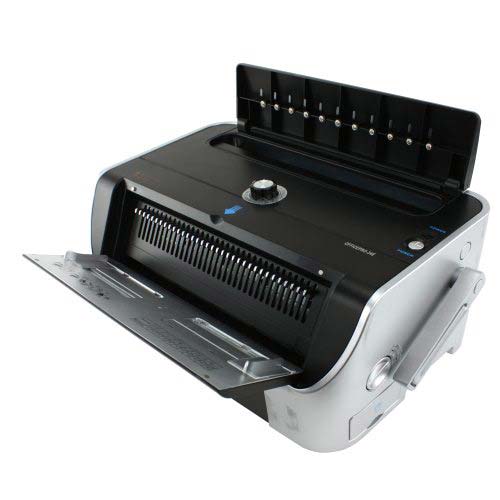

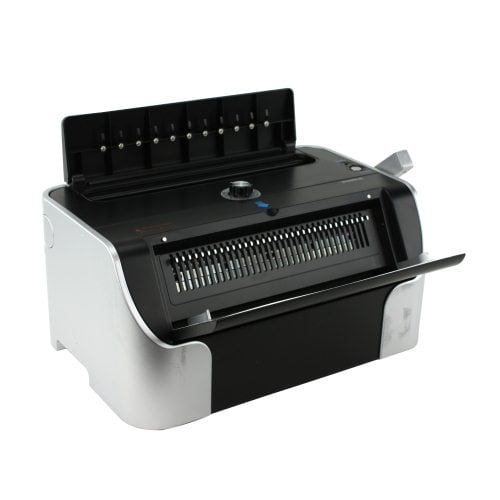

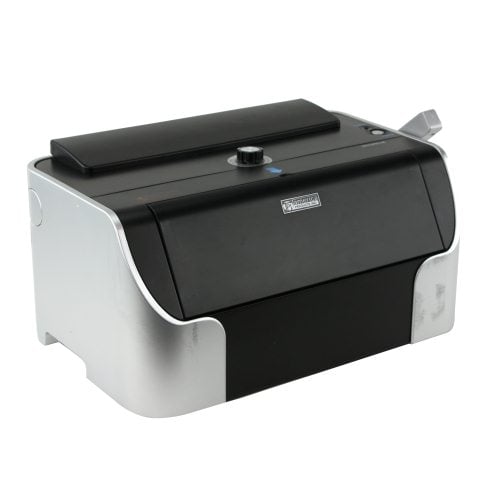

Tamerica OfficePro-34E Wire Binding Machine

Name: Tamerica OfficePro-34E Wire Binding Machine
Brand: Tamerica
SKU: tofficepro34e

$889.00

Free Shipping

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item#

Binding Material: Twin loop wire
Binding Capacity: 1/2"
Punching Length: 11.7" (A4)
2 Adjustable Edge Guides.

Product Description

The Tamerica OfficePro-34E Wire Binding Machine makes quick work of the most challenging twin loop wire binding workloads. Reduce fatigue and improve productivity using the OfficePro-34E's electric punching; able to punch up to 20 sheets at once with a 1/2" binding capacity and disengageable punching pins. The OfficePro-34E has a relatively compact footprint, perfect for fitting into the tight spaces of any office environment. Discover how the Tamerica OfficePro-34E Wire Binding Machine can help improve productivity and your bottom line, today.

Product Details

Electric punch.

Wire Hanger & Closer w/Dust Protector.

Punches up to 20 sheets per lift (20 lbs paper).

11.7" Punch Length.

Horizontal Paper Load (Inclined).

Disengageable Dies with Dust Protector.

Adjustable Punch Depth.

2 Adjustable Edge Guides.

1 Year Manufacturer's Warranty.

Specifications

Binding Material: Twin loop wire

Binding Capacity: 1/2"

Punching Capacity: 20 sheets (20#)

Punching Length: 11.7" (A4)

Punching Format: Electric

Binding Format: Manual

Hole Pith: 8.46mm (3:1)

Hole Spec: 3x8mm

Depth Margin: 2.5 - 6.5mm

Punch Holes: 34

Disengageable Pins: 34

Power Supply: 110V/60Hz

Shipping Length : 24

Shipping Width: 17

Shipping Height: 17

Shipping (Web) Weight: 56 lbs

Manufacturer's Warranty:1 Year Manufacturer Manufacturer's Warranty

Compare to Similar Tamerica Wire Binding Machines

Model Name	Tamerica Omegawire-321	Tamerica Omega-4in1	Tamerica TW3100	Tamerica OfficePro-34E	Tamerica TW2100	Tamerica EZ-Wire 34
Model
Max Punching Capacity	20 for 2:1 wire 15 for 3:1 wire	30 for comb 20 for coil 25 for 3:1 wire 30 for 2:1 wire	20 sheets	20 sheets	20 sheets	20 sheets
Max Binding Capacity	120 for 3:1 wire 250 for 2:1 wire	220 for coil 500 for comb 120 for 3:1 wire 250 for 2:1 wire	3/16" - 1-1/14"	1/2"	100 sheets	120 sheets
Punching Length	11"	14"	14"	11.7"	14"	11.7"
Punching Format	Manual	Electric	Manual	Electric	Manual	Manual
Hole Distance	Wire (3:1 and 2:1)	Comb 4:1 Coil (Oval Holes 4.5mm) 3:1 Wire and 2:1 Wire)	3:1	8.46mm (3:1)	2:1	8.47mm (3:1)
Hole Spec	N/A	Comb Coil (Oval) Wire (3:1 and 2:1)	N/A	3x8mm	N/A	4 x 4mm square
Depth Margin	Adjustable Punch Depth	Adjustable Punch Depth	N/A	2.5 - 6.5mm	N/A	2.5 / 4.5 / 6.5mm
Punch Holes	N/A	N/A	40	34	27	34
Disengageable pins	N/A	N/A	40	34	27	34
Power Supply	N/A	N/A	N/A	110V/60Hz	N/A	110V/60Hz
Machine Dimensions	23" x 22" x 15"	20" x 7" x 14"	21" x 16" x 10"	22" x 15" x 13"	21” x 16” x 10”	17.3” x 11” x 9”
Weight	57 lbs.	N/A	34 lbs.	52 lbs.	37 lbs.	21 lbs.
Warranty	1 Year Manufacturer Warranty	1 Year Manufacturer Warranty	1 Year Manufacturer Warranty	1 Year Manufacturer Warranty	1 Year Manufacturer Warranty	1 Year Manufacturer Warranty

Model

Max Punching Capacity

20 for 2:1 wire

15 for 3:1 wire

30 for comb

20 for coil

25 for 3:1 wire

30 for 2:1 wire

20 sheets

Max Binding Capacity

120 for 3:1 wire

250 for 2:1 wire

220 for coil

500 for comb

120 for 3:1 wire

250 for 2:1 wire

3/16" - 1-1/14"

1/2"

100 sheets

120 sheets

Punching Length

11"

14"

11.7"

14"

11.7"

Punching Format

Manual

Electric

Manual

Electric

Manual

Hole Distance

Wire (3:1 and 2:1)

Comb

4:1 Coil (Oval Holes 4.5mm)

3:1 Wire and 2:1 Wire)

3:1

8.46mm (3:1)

2:1

8.47mm (3:1)

Hole Spec

N/A

Comb

Coil (Oval)

Wire (3:1 and 2:1)

N/A

3x8mm

N/A

4 x 4mm square

Depth Margin

Adjustable Punch Depth

N/A

2.5 - 6.5mm

N/A

2.5 / 4.5 / 6.5mm

Punch Holes

N/A

Disengageable pins

N/A

Power Supply

N/A

110V/60Hz

N/A

110V/60Hz

Machine Dimensions

23" x 22" x 15"

20" x 7" x 14"

21" x 16" x 10"

22" x 15" x 13"

21” x 16” x 10”

17.3” x 11” x 9”

Weight

57 lbs.

N/A

34 lbs.

52 lbs.

37 lbs.

21 lbs.

Warranty

1 Year Manufacturer Warranty

Video

Transcript :

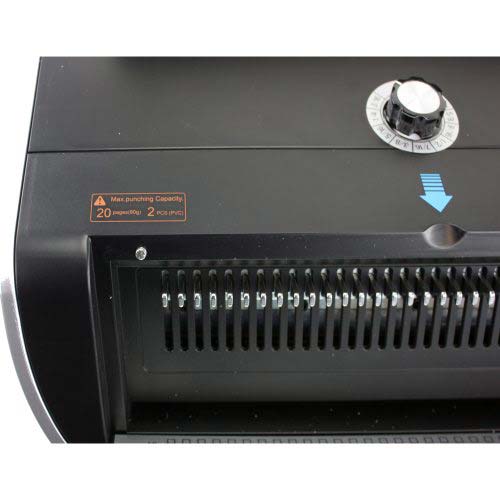

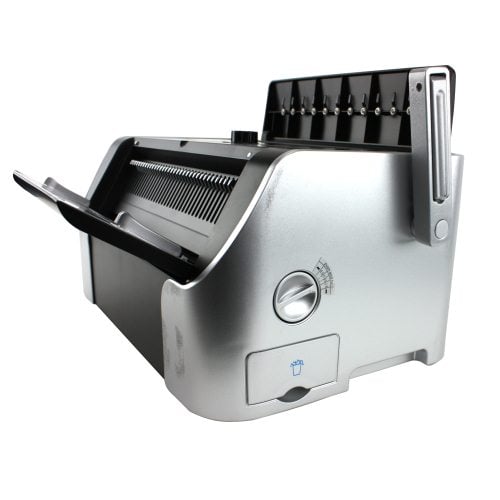

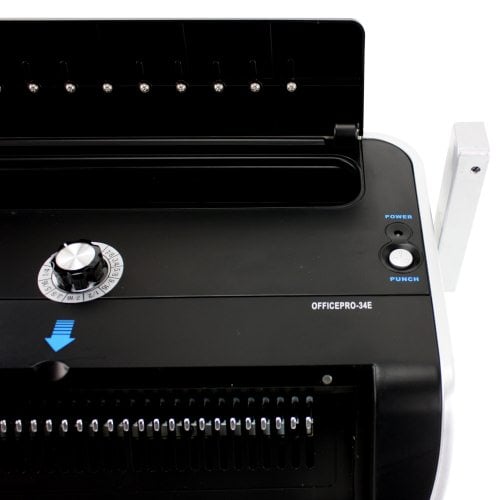

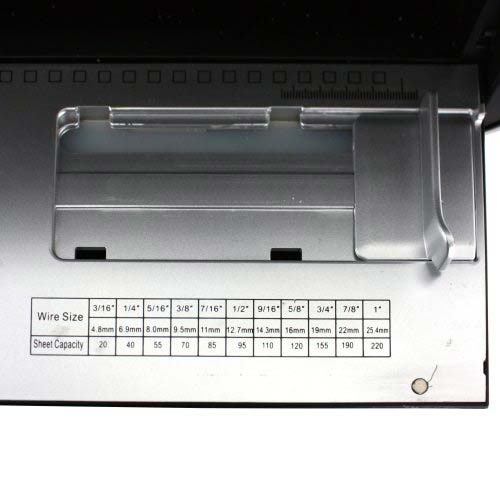

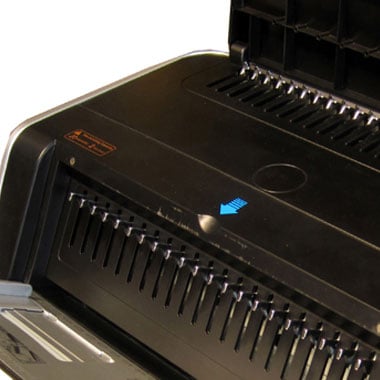

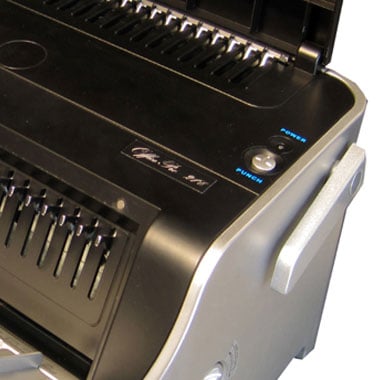

Welcome to MyBindiing video. This is Tamerica's Officepro 34E, a 3:1 pitch wire binding system. This all-in-one system allows you to bind a book with using wire up to one-half inch in thickness. It's simple, efficient, and stows away nicely. This double slider here serves as a side margin control, assuring that all papers are punched consistently throughout your whole project. A strength of the OfficePro 34E is fully disengageable die pins. All 34 can be removed so there are no half holes or missed punch holes. Also, it's useful for different size pieces of paper. We'll take our final run with a scrap paper and this time it's perfect. On the right hand side is the depth of margin control knob. Turning this allows you to make either larger or smaller margins according to the size document you'll be binding. If you're satisfied with your settings, let's begin. Starting with the covers, either face up or face down ? but do the whole project that way - and punch through all your papers. This machine can punch up to 20 sheets of 20lb paper per punch. The lid on the top of the machine reveals a nice wire rack that you can hang your wire on so you can drape your papers. A little trick in wire binding is to take the back page and flip it over to the front page. That way in the end the closed seam is hidden inside the book. All at once or in smaller batches, drape your entire project over the teeth of the wire. Set the dial on the top to match the size wire binds you'll be using. That way the closer doesn't close too much. And with the C-shape of the open wire, place it ?C" faced down into the trough and close it up. Bring the lever all the way down until it stops. And that's all in there's to it, you're all done. And the closed seam is hidden inside the back cover. That is the Tamerica OfficePro 34E. For more demos, reviews, and how to's, check out MyBinding.com.
