Product Description

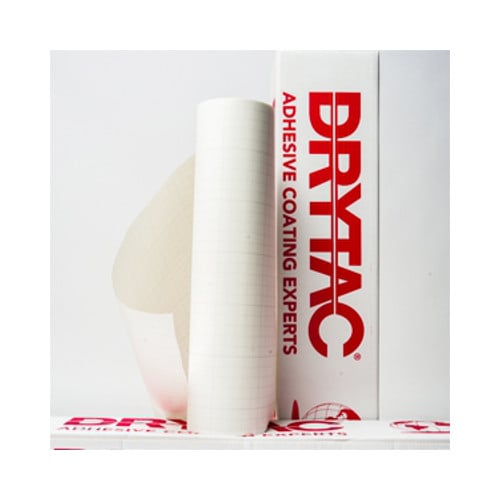

This TwinTac 25.5" x 150' Double-Sided Mounting Adhesive is consists of a smooth coating of aqueous acrylic adhesive on both sides of a 2.0 mil clear PVC (vinyl) film. TwinTac mounting adhesive has two moisture stable release liners that protect the adhesive, one on either side of the film. Plus, the double release papers protect the adhesive layer before use, thus preventing any contamination during handling. This mounting adhesive is suitable for all mounting applications and great for cut sheet applications because of its two release liners. Also, this 25.5" x 150' TwinTac mounting adhesive is perfect for production of pre-coated boards.
Product Details
- Suitable for a variety of mounting applications.
- The twin release liners allow it to be cut to the correct size for the required job, thus reducing waste.
- Ideal for the mounting of various substrates such as white display board, foam boards, Gatorfoam, and tempered hardboard.
Specifications
- Film Length: 150'
- Film Width: 25.5"
- Film Thickness: 2 mil - Monomeric Calendared PVC
- Ratio Film/Adhesive: 1:1
- Adhesive: 25µ (1 mil) on each side of the film - Permanent Aqueous Acrylic (Pressure Sensitive)
- Heat Resistance Range: 70°C-95°C (158°F-203°F)
- Peel Strength (20 min, FTM1): 23 N/25mm
- Release Liner: 1 Side PE Coated Siliconized Kraft Paper with Grey Grid
- Initial Tack: Medium
- Application Speed: 0.3m - 1.5m (1'-5') per minute
- Application Temperature: Room temperature - 49°C (120°F)
- Application: Picture Framing/Photography
- Part Number: PSA47-25150
Technical Data
TwinTac is a 2 mil (50µ) clear monomeric calendared PVC film, coated on both sides with a pressure sensitive, acrylic adhesive, both of which are protected by a gridded bleached Kraft release paper coated on one side with siliconized PE.Typical Applications
- Suitable for a variety of mounting applications.
- Twin release liners allow it to be pre-cut to the correct size for the required job beforehand, thus reducing waste.
- Ideal for mounting to various substrates, such as white display board, foam boards, Gatorfoam, and tempered hardboard.
Product Structure
| Release Liner | 1 Side PE Coated Siliconized Kraft Grid Paper |
|---|---|
| Adhesive | Permanent Acrylic (Pressure Sensitive) |
| Film | Monomeric Calendared PVC |
Physical Characteristics
| Film Thickness | 2 mil (50µ) |
|---|---|
| Adhesive Layer | 1 mil (25µ) on each side |
| Film/Adhesive Ratio | 1:2:1 |
| UV Protection Factor | Not Applicable |
| Outdoor Durability | Not Applicable |
| Service Temperature Range | -4°F to 203°F (-20°C to 95°C) |
| Peel Strength (20 min, FTM1) | 23 N/25mm |
| Shelf Life | Use within 1 year after opening original box |
| Storage Conditions | 59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity |
Process Settings
| Equipment Type | Temperature | Dwell Time |
|---|---|---|
| Roller Laminator | Room temperature to 104°F (40°C) | 1 ft to 8 ft (0.3m to 2.5m) per minute |
| Press | Not recommended | |
