Product Description

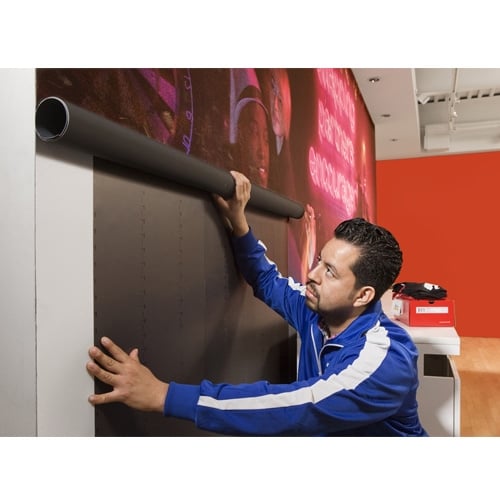

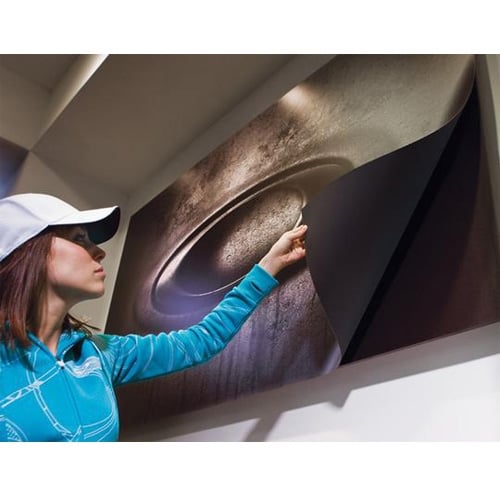

This Visual Magnetics InvisiLock-40HE Sheet Magnet is a 24.375" x 50' two-sided high-energy black magnet that is designed specifically for use with the Visual Magnetics Graphic System. The InvisiLock-40HE attracts to surfaces that have been primed with ActiveWall, latex primer. The high-energy magnetic surface supports up to 4 MagnaMedia layers allowing for special promotions or accents to be applied on top of a base graphic. This Visual Magnetics InvisiLock-40HE 24.375" x 50' Sheet Magnet can be easily cut and trim by utility knife or scissors.
Product Details
- 2-sided InvisiLock magnet custom engineered for use with ActiveWall Primer.
- High-energy magnet supports up to 4 MagnaMedia layers.
- Proprietary polarity allows InvisiLock fixtures to lock in place.
- Flexible rolls or sheets for application to concave and convex surfaces.
- Excellent lay flat.
- Easy to cut and trim with a utility knife or scissors.
- Magnet engineered to low gauss level for safety.
- Must use with ActiveWall® Primer.
- Use with any MagnaMedia product.
- Best for wall applications.
Specifications
- Size: 24.375" x 50'
- Total Caliper: 40-mil / 1016 Micron
- Opacity: 100%
- Gauss @ 0.25" gap : <1
- Pull Force: 102# / SF
Technical Data
Visual Magnetics InvisiLock custom engineered magnet is designed specifically for use with the Visual Magnetics Graphic System. VM-InvisiLock-40HE attracts to surfaces that have been primed with ActiveWall, latex primer. The high-energy magnetic surface supports up to 4 MagnaMedia layers allowing for special promotions or accents to be applied on top of a base graphic.Features and Benefits
- 2-sided InvisiLock magnet custom engineered for use with ActiveWall Primer.
- High-energy magnet supports up to 4 MagnaMedia layers.
- Proprietary polarity allows InvisiLock fixtures to lock in place.
- Flexible rolls or sheets for application to concave and convex surfaces.
- Excellent lay flat.
- Easy to cut and trim with a utility knife or scissors.
- Magnet engineered to low gauss level for safety.
Application Information
- Must use with ActiveWall Primer.
- Use with any MagnaMedia product.
- Best for wall applications.
Physical Data
| Total Caliper | 40-mil / 1016 Micron |
|---|---|
| Opacity | 100% |
| Gauss @ 0.25" gap | <1 |
| Pull Force | 120# / SF |
Products / Sizes
| PRODUCT CODE | AVAILABLE SIZES |
|---|---|
| VM40HE-24024 | 23.875 in x 23.874 in 15 tiles /case (60.6 cm x 60.6 cm) |
| VM40HE-24050 | 24.375 in x 50 ft – 6 in core (61.9 cm x 15.2 m) |
Recyclability
VM-InvisiLock-40HE is fully recyclable / recoverable and can be reground and recovered to create new magnet material. See "Recycling Retired Graphics" program available for download at www.visualmagnetics.com.
Product Safety
InvisiLock magnet is a ferrite-based magnet and poses no health or safety issues. Unlike stronger, rare-earth neodymium permanent magnets, the multi-pole nature and lesser strength of ferrite magnets does not emit a strong magnetic field into the environment and therefore does not cause signal interference or damage with computerized equipment. At a gap of 0.25" or greater gauss readings are well below 1.0 and at 7 ft. the gauss level is "not recordable" using a Model 2010A Gauss Meter. Due to its low gauss emission, InvisiLock magnet is not recognized as a “magnetized material” per IATA (International Air Transportation Association) definition and therefore can be air shipped in bulk quantity
