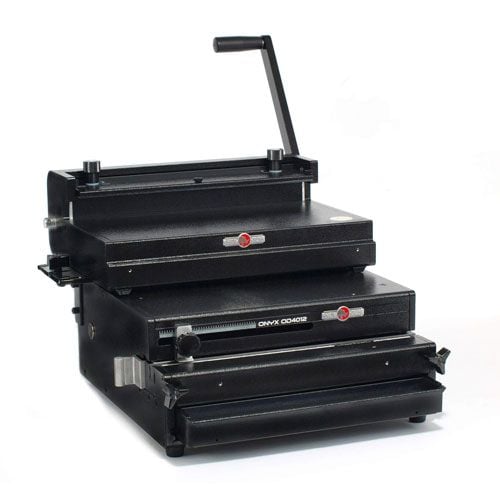

Rhin-O-Tuff 4012W2 Medium Duty Electric 2:1 Wire Binding System
- Foot pedal included
- Heavyweight metal construction
- 30 Sheet punching capacity
- To Get the Full Package, Order All of the Items Below
- Ships Free Over $75
$2,574.00
- 0
- 1
| Product Name | Item Number | Price | Qty | ||
|---|---|---|---|---|---|
| Rhin-O-Tuff Onyx OD4012 11" Electric Punch | OD4012-ONYX | $2,574.00
|
|||
| 2:1 Square Die Set For Rhin-O-Tuff OD4012 | 74221A | $926.00
|
|||
| Rhin-O-Tuff Onyx HD8000 14" Manual Flat Bar Wire Closer | HD8000-ONYX | $609.00
|
|||
| Rhin-O-Tuff Mounting Kit for OD Punches | MK4000-ONYX | $120.00
|
Product Description
To Get the Full Package, Order All of the Items Above
This is the Rhin-O-Tuff 4012W2 Medium duty electric 2:1 wire binding system. Everything you need to create a professional 2:1 wire binding is in this system with the exception of your coil and covers, which can be purchased separately for easy customization. The medium duty 4012W2 system contains the 4012 modular binding punch, a 2:1 square hole die ( .500 hole spacing - .250 square hole size), a 14" manual flat bar wire inserter and closer, and a modular mounting kit. The 4012W2 has an incredible punching power capacity of up to 30 sheets of 20 lb paper can be punched at one time with perfect and align holes. Manual and auto-reversing structures eliminating the word "jam" out of this system. MyBinding part number 4012W2.
Product Details
- 2:1 Wire Die with easy disengageable pins - Included
- 14" manual flat bar wire inserter - Included
- Attachment kit for mounting wire inserter on top of punch - Included
- Automatic and Manual Reverse feature to reduce jamming in the punch
- Punches up to 30 sheets of 20 lb paper
- Rate of 25 cycles per minute
- Auto and manual reverse clears most punching jams
- Accu-Set adjustments on odd size paper
- Efficient work environment with a standard foot pedal and optional versa switch
- Extreme high capacity Waste Chip Tray with Clear View Access
- Heavyweight metal construction
- Made in the USA with more than 98% recyclable materials
Item Specifications
- Model: OD4012 Onyx
- Wire Die: 74221A 2:1 Square .500 hole spacing - .250 square hole size
- Wire Inserter : 8000 ONYX 14" manual flat bar wire inserter / closer.
- Punch Capacity Up to 30 Sheets of 20 lb paper
- Punch Length: 11" Punching Length with Open Ended Extra Capacity Die
- Fully Disengageable Pins:Yes
- Weight: 80 lbs
- Machine Dimensions: 15" x 21 3/4" x 19 3/4" (H x W x D)
- Manufacturer's Warranty: Three Year Manufacturer Manufacturer's Warranty (1 year on the punching die)
