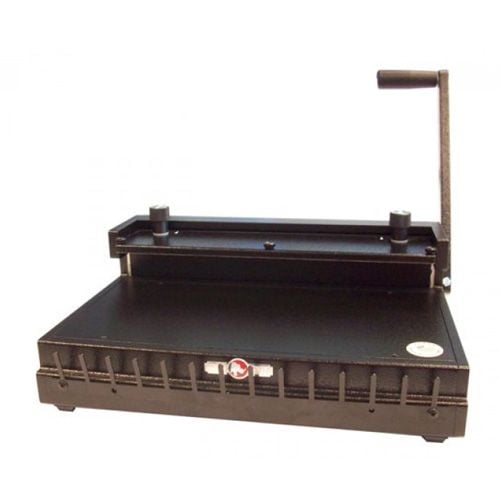

Rhin-O-Tuff Onyx HD8000 14" Manual Flat Bar Wire Closer
|Product Name||Item Number||Price||Qty|
|3:1 Square Die Set For Rhin-O-Tuff OD4012||74231A||
|Rhin-O-Tuff Mounting Kit for OD Punches||MK4000-ONYX||
|Rhin-O-Tuff Onyx OD4012 11" Electric Punch||OD4012-ONYX||
- Fully dual adjusting closing feature, left and right knobs to provide even wire closing
- Left or right-handed reversible binding handle
- Reversible top closing bar
- Wire Compatibility from 3/16" to 1 1/4" sizes
- Ability to be attached on all vertical OD and HD Series Machines or it can be used by itself as the Production Coil Inserter
- Made in the USA with more than 98% recyclable materials
- Model: Hd8000 ONYX
- Capacity Size: 14"
- Actual Machine Dimensions: 14X17X13
- Actual Machine Weight : 19
- Shipping Length : 20
- Shipping Width: 17
- Shipping Height: 10
- Shipping (Web) Weight: 27 lbs
- Manufacturer's Warranty: Three Year Manufacturer Manufacturer's Warranty
Welcome to MyBinding video. This video looks at the Rhin-O-Tuff Onyx HD8000 wire closer, a wire binding module. It’s a standalone unit or it can be combined with other Rhin-O-Tuff Onyx punches. When your project is all punched, you need to bind it. And the Onyx HD8000 makes closing the wire fast, accurate, and simple. With the correct size wire selected and your book in order, begin by flipping the back cover around to face the front. This way, in the end, the seam of the wire is hidden between the back page and the back cover. Next, thread the wire onto the spine of the book. If you haven’t done so already, now is the time to adjust the depth of the wire closer. The two dials on the top allow you to accurately set the depth of the wire closer. Then with the opening of the wire that forms a “C” shape, place it all the way to the back of the closer and bring down the lever. Remove your book and you’re all done. Another great-looking project with the Onyx HD8000 by Rhin-O-Tuff. For more demos, reviews, and how-tos, check out MyBinding.com.
Rhin-O-Tuff HD – 8000 Double Loop Wire Closer Review
When binding documents with twin loop wire (also known as wire-o, double look wire or double-o) the final step in the binding process is to close the wire. This is accomplished by using a wire closing device to squeeze the “C” shaped wire spine until it is round. However, if you squeeze the spine too much it will end up overlapping and looking sloppy and if you don’t close it enough the pages will fall out. This is where the HD-8000 comes in. It is designed to help you close your wire spines easily and accurately every time.
The Rhino HD8000 is one of the only wire closers that I have seen that is designed for use with every available size of wire. It is capable of closing wire spines that are 3/16″ in diameter (the smallest size available on the market) and as large as 1-1/2″ which is the largest available size. Although most users do not use these two sizes of spines it is nice to have the capability if the need should arise.One of the problems that I often see with wire closers is that they close one side of the book completely and the other side is still slightly open. This happens as the gears for the wire closer slip over time. However, the HD-8000 includes two heavy-duty thumb screws that allow you to adjust each side of the wire closer. This can help you to compensate for wire that is slightly deformed or for any slippage that might occur over time with the closing mechanism. This is one of the best designs that I have seen as far as wire closers go.
The HD8000 is designed so that it can be bolted onto your Rhin-O-Tuff modular binding punch. However, it can also be used as a standalone wire closer without any need for a holder or stand. Using the HD 8000 as a stand along device can help to increase speed and productivity. In fact, if you have one person punching and the other person binding your documents you can more than double your productivity using this machine. For this reason, the HD-8000 is very popular with print shops and for high volume applications.
When it comes to wire closing the HD-8000 really does a good job. However, it is important to note that it is designed for use with books up to 12″ in length. If you are going to need to close wires that are longer than this you will need to either choose a longer closing machine or close your documents in two steps (the HD 8000 has an open throat design that makes this possible).
The only other limitation that is worth noting about the HD-8000 is that it uses a horizontal closing method as opposed to a vertical. Interestingly, most other closers available on the market use a vertical process and this is the process that I am more familiar with. I am not sure that either style is better than the other. However, if you have a vertical closer now it might be a little bit awkward to switch.
The HD8000 is built extremely well with high quality heavy duty metal components. There is really very little risk that you will break or wear out this machine even if you do a lot of binding. However, the strips of sandpaper like material will most likely need to be replaced over time as the rough material wears off. These components are inexpensive and easy to replace.
In my opinion the HD-8000 is one of the best wire closers that I have seen. It’s heavy duty construction and ability to bind all of the different sizes of wire make it a definite winner. For companies who bind a lot of legal sized documents or large calendars I would probably suggest moving up to the HD-8024 which has the same great features as the 8000 but is 24 inches long.
