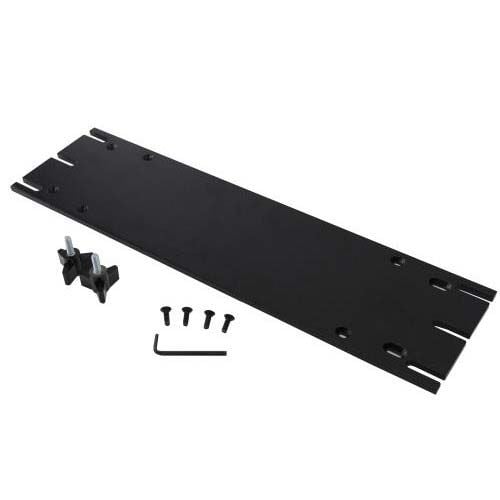

Rhin-O-Tuff Mounting Kit for HD Punches
120.00
NewCondition
InStock
Rhin-O-Tuff Mounting Kit for HD Punches
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
- 5
- 6
Product Description
Rhin-O-Tuff products are design for heavy-duty durability and state-of-the-art performance. When transforming module and punch machine together, it stays true to the superior security with amazing performance. The mounting kit design for HD7000 and HD7700 Ultima provide the incredible attachment, connecting 2 great machines into 1 stylish and elegant punch and finish system.
Product Details
- 8 individual part per pack
- Easy mount and convenient placement
- Great attachement for Module to HD7000 and HD7700 Ultima
Demonstration Video
Transcript:
Welcome to MyBinding video. Let's have a look at the Rhin-O-Tuff MK2000, a module mounting kit for OD and HD Onyx punches. Rhin-O-Tuff modules are engineered to save space by sitting on top of the different punches; this universal mounting kit allows you to do so so they stay put and they stay safe. With tools and parts ready to go, use the Allen wrench on the left- and right-hand side to remove the bolt so that you can put your frame on. Be sure only to remove the front two bolts on the top row. When all four bolts are removed, use the provided bolt to take the carriage with the frame and put ...
Read More
Welcome to MyBinding video. Let's have a look at the Rhin-O-Tuff MK2000, a module mounting kit for OD and HD Onyx punches. Rhin-O-Tuff modules are engineered to save space by sitting on top of the different punches; this universal mounting kit allows you to do so so they stay put and they stay safe. With tools and parts ready to go, use the Allen wrench on the left- and right-hand side to remove the bolt so that you can put your frame on. Be sure only to remove the front two bolts on the top row. When all four bolts are removed, use the provided bolt to take the carriage with the frame and put it on each side. Bolts go right in here, two on each side, fasten them all the way in, good and tight, nice and even. It will be on these two braces that all your modules will bolt down and hold into place. When these are in place, make sure the top of the machine is completely clear, so you're ready to mount anything on top. And this universal mounting plate is what will go on the bottom of each module, just like this, fastened in by the bolts that fit for that module. The plate is bolted into place on the bottom of the module, then the module placed on top of the punch, where the plate then mounts to the braces, held into place by this star-shaped plastic covered bolts. They're hand screws, you bolt them right down, hand tight. You'll have four of them, so you can use two on each side, or depending on the configuration of some of the modules, just one on each side. With the module and the punch together, you can see the efficiency in the workspace. Here's the HD8000 with the HD7700, also on top of the OD4012 and the HD7000. And this coil inserter also mounts in with the MK2000 module mounting kit. For more demos, reviews, and how-tos, check out MyBinding.com.
