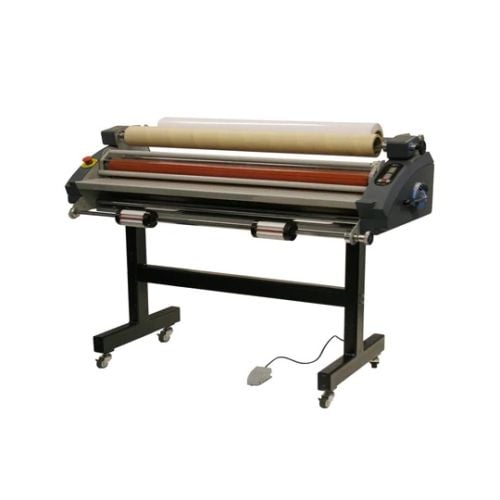

Royal Sovereign RSC-1401CLTW 55" Cold Roll Laminator
4285.71 NewCondition InStock

Royal Sovereign RSC-1401CLTW 55" Cold Roll Laminator

Part #: RSC-1401CLTW
1 Questions, 1 Answers
  • Maximum Laminating Width: 55" (1400 m)
  • Mounting Gap: Up to 5/8"
  • Laminating Speed: 16 ft./min. (5 m./min.)
  • Speed Control: 9 Settings
  • 1 Year Warranty
  • Price Match Guarantee
  • Oversize / Truck shipping
  • Brand New
In Stock

$4,285.71

This Item Ships Via Truck
SWIPE FOR MORE IMAGES
  • 0
  • 1
video

Product Description

The Royal Sovereign RSC-1401CLTW 55" Cold Roll Laminator is an economical entry level laminator perfect for novice users entering the sign and print industry. Built for safety and ease of use, this lightweight and compact cold roll Laminator is perfect for laminating and mounting pressure-sensitive graphics up to 55" wide. This Royal Sovereign RSC-1401CLTW 55" Cold Roll Laminator is capable of producing both single sided cold lamination as well as mounting of display images. Combine this laminator with your 54 inch inkjet printer and you will be able to provide endless finishing solutions. The lightweight and compact construction and requires little assembly and minimal maintenance. From lamination to mounting you can count on the RSC-1401CLTW laminating machine to provide a stable platform for your entry into the sign and print industry.

Product Details

  • Variable Speed Control. Fast lamination speeds of over 16 feet per minute.
  • Quick Notch Gap Adjustment. Eliminating guess work when setting the nip for mounting.
  • Crowned Silicon Rollers. Ensures proper tracking and lasts longer than rubber rollers.
  • Operator Friendly. Easy to use digital controls and convenient foot pedal for hands free operation.
  • Included stand with casters
  • Release liner take-up standard feature
  • Durable motor reaching up to 16 ft./min.
  • Mount substrates up to 5/8"

Item Specifications

  • Maximum Laminating Width: 55" (1400 m)
  • Mounting Gap: Up to 5/8"
  • Laminating Speed: 16 ft./min. (5 m./min.)
  • Speed Control: 9 Settings
  • Transport Type: 2 Rollers
  • Reverse: Yes
  • Foot Pedal: Yes
  • Stand Included: Yes
  • Cold Lamination Capable: Yes
  • Hot Lamination Capable: No
  • Nip Adjustment: Quick Notch
  • Feed Table: Removable
  • Auto Grip Hubs: 3" included
  • Release Liner Take Up: Yes
  • Idler Bars: Yes
  • Heat Assist: N/A
  • Cross Cutter: No
  • Remote: No
  • Front Feeder: N/A
  • Rewinder: N/A
  • Safety: Photoelectric Sensors
  • Shaft Size: 3" Auto-Grips
  • Roll Film Size: 7.75"
  • Uncrated Weight: 286 lbs.
  • Dimensions (W x D x H): 67" x 22 x 43"
  • Crate Weight: 396 lbs.
  • Crate Dimensions (W x D x H): 79" x 31" x 28"
  • Warranty:1 Year Warranty on Parts and Labor
  • Part Number: RSC-1401CLTW

Product Reviews

Write Your Own Review
You're reviewing:Royal Sovereign RSC-1401CLTW 55" Cold Roll Laminator
Your Rating

Demonstration Video

How to Load and Web a RSC Series Cold 55" & 65" Roll Laminator Video

Transcript: In this segment we're going to show you how to web a Royal Sovereign cold 55” or 65” Laminator. First what we need to do is to get a roll of lamination film, you'll see on your lamination film that you have a release liner on one side of your film and you laminate on the other. The way you put the laminate on to your laminator on the supply you want your adhesive that's on your laminate to come down on the backside we do release liner to the front. This way, when the film comes over the rollers your adhesive will not be touching the rollers. We need to remove the supply shaft off the back of t ... Read More
In this segment we're going to show you how to web a Royal Sovereign cold 55” or 65” Laminator. First what we need to do is to get a roll of lamination film, you'll see on your lamination film that you have a release liner on one side of your film and you laminate on the other. The way you put the laminate on to your laminator on the supply you want your adhesive that's on your laminate to come down on the backside we do release liner to the front. This way, when the film comes over the rollers your adhesive will not be touching the rollers. We need to remove the supply shaft off the back of the laminator by lifting off to one side and pulling it out from the other side. What we have are two water grips that are on the shaft that we want to make sure will be positioned inside the core of the roll of lamination film. We insert the supply shaft into the core of the film and slide it all the way through to the other side. Next, we go back to the back little laminator, take our supply shaft, we'll get into the one side and drop the other side down into the slot. Now we come to the front of the laminator, what we're going to do is open up the gap on the rollers so that we have maximum gap on the top roller, from there we'll take a sacrificial piece of material and place it in between the nip of the two rollers. Next, we'll take our film bring it underneath the idler bar and into the nip of the rollers. We want to make sure our sacrificial piece of material is centered with the roll of laminate. Now, we'll come down and drop these rollers down so they meet each other. The next step we want to make sure is that we're taught all the way across here and we don't have any gapping. You see this side, it's a little bit loose, this slide is a little bit tight. So, we're going to open up our rollers and we're going to adjust this side so it's a little taut and drop it back down. Next, we're going to take a pair of scissors and score the release liner on the backside. We'll take our scissors and separate the release liner from the film. We're going to hit the run button on the laminator until we have enough release liner to tape on to the release liner take up shaft. Then we'll take some film, take and we're going to take a relief liner in three spots to take up. Now we're ready to laminate.

How to Laminate on a Royal Sovereign Cold Pressure Sensitive Roll Wide Format Laminator Demo

Transcript: This segment is going to show you how to laminate media on a cold laminator. Now that we have our laminator webbed, we're going to take our material that came off our inkjet printer. We're going to set it on the feed table of the laminator, we're going to take the bottom supply shaft off the laminator and insert it into our media. Now that position is back on the bottom supply. We're going to bring the media up over their feed table and we want to bring our media so that it's centered with a lamination film. Bring the media up, hit the one switch, we'll see the lamination film into the laminat ... Read More
This segment is going to show you how to laminate media on a cold laminator. Now that we have our laminator webbed, we're going to take our material that came off our inkjet printer. We're going to set it on the feed table of the laminator, we're going to take the bottom supply shaft off the laminator and insert it into our media. Now that position is back on the bottom supply. We're going to bring the media up over their feed table and we want to bring our media so that it's centered with a lamination film. Bring the media up, hit the one switch, we'll see the lamination film into the laminator. Once your material comes through the backside of the laminator, we're going to hit the stop button. I'm going to tape this to the back supply core on your rewinder. Hit the run button and continue our lamination process.

Questions & Answers

Thank you for your question. The Royal Sovereign RSC-1401CLTW 55" Cold Roll Laminator runs on 110v power.

Answered by MyBinding
3 years and 7 months ago ago

Submit a New Question
