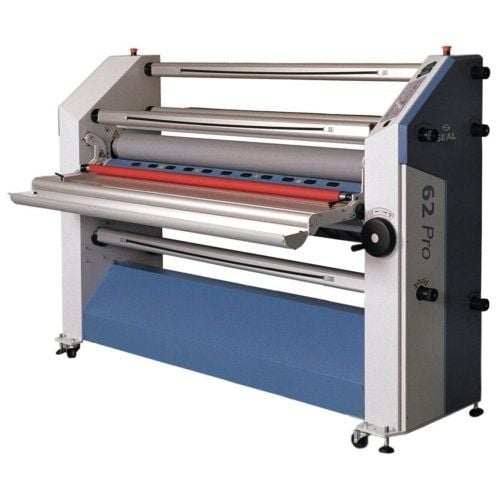

SEAL 62 Pro D 61" Wide Format Roll Laminator
$24,146.00 NewCondition InStock
SEAL 62 Pro D 61" Wide Format Roll Laminator

SEAL 62 Pro D 61" Wide Format Roll Laminator

Part #: SEAL-62-Pro-D
0 Questions, Ask a Question
Brand: SEAL

Your Price: $24,146.00

Brand New Price Match Guarantee In Stock Oversize / Truck shipping

Your Price: $24,146.00

ProductDescription

The SEAL 62 Pro D Wide Format Roll Laminator is capable of mounting, laminating and encapsulating prints up to 61" wide at a speed of 20 feet per minute. Positioned for production, the 62 Pro D offers dual heated rollers, five un-wind/take up shafts and a revolutionary film saving flip up pull roll system. It is ideal for all hot/cold applications using materials up to 61" wide and 1.5" thick, including high speed, single pass encapsulation up to 10 mil over 10 mil. The 62 Pro D comes standard with a print roll trough mounted to the front table, an additional bracket to hold a spare auto-grip shaft and a rear nip adjustment handle. With fully adjustable temperature, speed and pressure settings the 62 Pro D is ideal for the more experienced finisher requiring a highly versatile laminator.

Product Details

  • Dual heated rollers make most applications, including encapsulation, easy while superior roller technology delivers better processing of soft substrates.
  • Laminates graphics up to 61" wide.
  • Capable of laminating at speeds up to 20 feet/minute.
  • 1 1/2" manual nip adjustment allows for precise operation and accomodates most substrates.
  • Roll-to-roll operation (from bottom unwind) to accommodate applications including vehicle wraps.
  • 14.28 lbf/in (2.5n/mm) line pressure for superior cold lamination.
  • Lightweight drop-in supply shafts with auto-grip for easy loading of materials in tight spaces.
  • Auto-grip upper take-up shaft for winding release liners.
  • Exclusive ‘stay-put’ swing up feed table keeps table up, making media handling and set-up a snap and flip up pull rollers for no hassle loading.
  • Comprehensive safety system with emergency stops and self-checking safety eyes.
  • Foot switch for hands free operation.
  • Ergonomic touch pad control panel.
  • Image guide to ensure perfect alignment and roll trough to keep rolled prints in place before and during lamination both standard.
  • Optional easy-in feed table and slitter to make laminating a snap while the optional fan banks cools the machine down when both rolls are heated.

ItemSpecifications

  • Depth: 17.7" (450 mm)
  • Electrical Requirements: 1N/PE 230VAC +/-10%, 50/60 Hz, 35A
  • Heated Rollers: Dual
  • Maximum Roller Temperature: 284F (140C)
  • Maximum Speed: 20 ft/min (6m/min)
  • Maximum Substrate Thickness: 1 1/2" (38mm)
  • Maximum Working Width: 61" (1550 mm)
  • Net Weight: 994 lbs ( 450 kg)
  • Dimensions: 87.4" x 56.3" x 17.7" (2220 x 1430 x 450mm)
