Heat assisted top roller for superb lamination performance.
Laminates graphics up to 61" wide.
Capable of laminating at speeds up to 20 feet/minute.
Fully adjustable top roller temperature, speed and pressure settings
ProductDescription

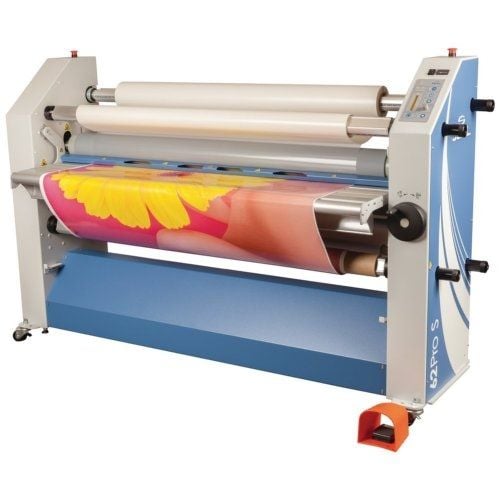

The SEAL 62 Pro S 61" Wide Format Heat Assist Roll Laminator features the same advanced lamination technologies of the 62 Pro D, but without the bottom heater or flip up pull roller. Positioned for value, the Pro S offers four un-wind/take up shafts, swing out supply shafts and a slightly shorter cabinet design. The 62 Pro S is ideal for all single side heat applications as well as cold applications using materials up to 61" wide & 1.5" thick. The 62 Pro S now comes standard with a print roll trough mounted to the front table, an additional bracket to hold a spare auto-grip shaft, and a rear nip adjustment handle.
Product Details
Heat assisted top roller for superb lamination performance.
Laminates graphics up to 61" wide.
Capable of laminating at speeds up to 20 feet/minute.
1-1/2" manual nip adjustment allows for precise operation and accommodates most substrates.
Roll-to-roll operation (from bottom unwind) to accommodate applications including vehicle wraps.
14.28 lbf/in (2.5n/mm) line pressure for superior cold lamination.
Lightweight drop-in supply shafts with auto-grip for easy loading of materials in tight spaces.
Auto-grip upper take-up shaft for winding release liners.
Exclusive ‘stay-put’ swing up feed table keeps table up, making media handling and set-up a snap.
Comprehensive safety system with emergency stops and self-checking safety eyes.
Foot switch for hands free operation.
Ergonomic touch pad control panel.
Included roll trough to keep rolled prints in place before and during lamination.
Item Specifications
Maximum Working Width: 61" (1550 mm)
Maximum Speed: 20'/min. (6 m/min.)
Maximum Substrate Thickness: 1-1/2" (38 mm)
Maximum Roller Temperature: 284°F (140°C)
Roller Heating: Single (Top)
Machine Dimensions (W x H x D): 87.4" x 48.6" x 17.7"
Net Weigh: 850 lbs (386 kg)
Shipping Dimensions (W x H x D): 89.8" x 66" x 38"
Manufacturer's Warranty: 2 Year Limited Manufacturer's Warranty (2 Year Parts, 1 Year Defect, 1 Year Labor)
Demonstration Video
SEAL 62 Pro S 61" Wide Format Heat Assist Roll Laminator Video
Transcript :
The 62 ProSeries. We're going to take a look at the 62 Pro D, this is one of our top-of-the-line laminators. You'll see some of the reasons why in just a moment. Take a look at one now, for instance our lower supply shaft here has an additional lock on the end that assures media stability, making sure the media stays on shaft and the shaft doesn't move. There are five unwind take ups with this including three combi shafts. And what's a combi shaft? what makes this laminator flight unique because we can be used as a take-up or unwind shaft. Each is clearly marked for the process you're interest ...
The 62 ProSeries. We're going to take a look at the 62 Pro D, this is one of our top-of-the-line laminators. You'll see some of the reasons why in just a moment. Take a look at one now, for instance our lower supply shaft here has an additional lock on the end that assures media stability, making sure the media stays on shaft and the shaft doesn't move. There are five unwind take ups with this including three combi shafts. And what's a combi shaft? what makes this laminator flight unique because we can be used as a take-up or unwind shaft. Each is clearly marked for the process you're interested in using it for. Now let's take a close look at the control panel which is very easy to understand and use. Clearly marked buttons and dials make it easy to start learning quickly. Forward, reverse speed control, snail mode, all are included in this top-of-the-line product. As you change the variable pressure tip, you'll see a response on the control panel itself. Turn the nip pressure, and the pressure is indicated on the control panel. Up to 1 ½” dip gap allows you to do numerous different applications. Upper and lower roller heaters are displayed digitally, making each setting accurate. The optional productivity pack has been added to this machine and that includes an efficient end feed table. If needed, you can lift the media guide right from the table or lower it when you're rolling it through some of the hard medias or thicker medias. In addition, we’ve added rollers on the front that assists you in feeding images smoothly and flat making sure you get the best laminating possible. We even added a tension brake to apply a little back tension on the image make sure get the best results possible. Now if you need to thread the machine or check the webbing, just lift the table up, its spring-loaded making it easy to do and giving you free access to the rollers or the lower supply shafts. We've added another tray to the front of the feed table that will allow you to put rolled images in and feed them easily and smoothly through the laminator. Just place them in the tray, line them up, and get started. The tray is not needed, snap it back down and out of the way. The back of the laminator has also got some great features, for instance, as part of the productivity pack, slitters can be added. This makes trimming of the final product almost automatic. Move them to the width you want, engage the blades, the trimming takes place as the images come out of the laminator. Fan bank has also been added beneath the rollers to cool the heated processes and rear pull rollers can be used to assist in smoothly pulling images through to finish. Just lift them up to engage and your images will pull through smoothly giving you the best possible results. Lower the pull rollers and put the table over them for hard medias. Each process has been thoroughly thought through to make sure you get the best results in feeding and in finishing.
