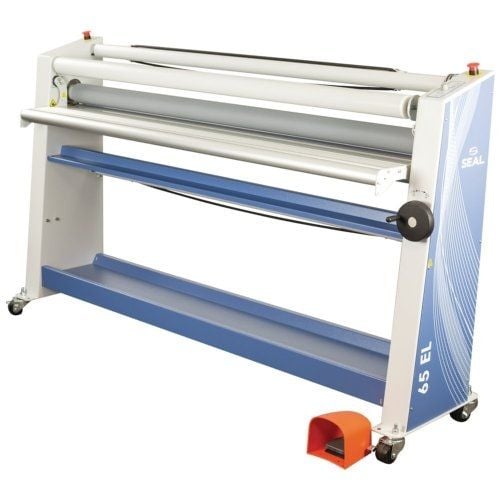

SEAL 65 EL-1 65" Wide Format Cold Roll Laminator
9091.71 NewCondition InStock

SEAL 65 EL-1 65" Wide Format Cold Roll Laminator

Part #: SEAL-65EL1
Brand: SEAL
  • Laminates graphics up to 65" wide.
  • Capable of laminating at speeds up to 14 feet/minute
  • Manual nip adjustment up to 1" for handling of most substrates
  • Durable uniframe construction requires no assembly and minimal maintenance
Select an optional add-on product to further expand the use of the machine. The above price will reflect the additional cost of the add-on. Need more than one accessory? Give us a call so we can customize your order.
  • Price Match Guarantee
  • Oversize / Truck shipping
  • Brand New
In Stock

$9,091.71

This Item Ships Via Truck
SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
video

Product Description

The SEAL 65 EL is a cold roll laminator that will mount and laminate pressure sensitive graphics up to 65" wide at a speed of up to 14 feet per minute. It features a cold roll set, a 1" nip opening adjusted manually for precise operation. Its easy-to-use design makes it ideal for any level user making high quality graphics. Its durable uniframe construction requires no assembly and minimal maintenance. Plus, it carries ETL certification in the US/Canada. An optional print roll trough, image guide, and leveling feet are available for the 65 EL.

Product Details

  • Cold roll laminator confidently finishes a variety of applications.
  • Laminates graphics up to 65" wide.
  • Capable of laminating at speeds up to 14 feet/minute.
  • Manual nip adjustment up to 1" for handling of most substrates.
  • Durable uniframe construction requires no assembly and minimal maintenance.
  • Flip up feed table for easy webbing.
  • Safety eyes for increased operator safety.
  • Foot switch for hands free operation.
  • Optional image guide ensures perfect alignment and flat lamination.
  • Optional roll trough keeps rolled prints in place before and during lamination.
  • Optional leveling feet keeps the laminator stable for the highest quality finished product.

Item Specifications

  • Electrical Requirements: 115 VAC, 50-60 Hz, 1A, 115W - NEMA 5-15 plug
  • Heated Rollers: No
  • Maximum Speed: 14 ft/min (4.25 m/min)
  • Maximum Working Width: 65" (1651 mm)
  • Net Weight: 430 lbs (195 kg)
  • Dimensions: 82.3" x 48" x 24" (2090 x 1220 x 610mm)

Product Reviews

Write Your Own Review
You're reviewing:SEAL 65 EL-1 65" Wide Format Cold Roll Laminator
Your Rating

Demonstration Video

SEAL 65 EL-1 65" Wide Format Cold Roll Laminator Video

Transcript: America is proud to introduce the all-new SEAL 65 EL. Let's face it printers in our market are just getting wider, a quick survey shows that many different types of printers and manufacturers are making 65-inch-wide printers or more. And of course, if the printers are getting wider, the media going in them is getting wider as well. Again, lots of print media out there 60 plus inches wide, that means you need a wider laminator. THE SEAL 65 EL is designed for this market perfectly. It is the laminator for the future. Designed and optimized especially for the small to medium sign and print shop t ... Read More
America is proud to introduce the all-new SEAL 65 EL. Let's face it printers in our market are just getting wider, a quick survey shows that many different types of printers and manufacturers are making 65-inch-wide printers or more. And of course, if the printers are getting wider, the media going in them is getting wider as well. Again, lots of print media out there 60 plus inches wide, that means you need a wider laminator. THE SEAL 65 EL is designed for this market perfectly. It is the laminator for the future. Designed and optimized especially for the small to medium sign and print shop the 65 EL follows our award-winning 54 EL features optimized for performance, ease of use, and safety. Our famous Uniframe construction actually means that this laminator is built to last for years and lightweight autograph shafts make it easy to load, unload, and adjust your laminates. A manual nip adjustment makes adding the correct pressure perfect every time. Rear stabilizing feet allow you to use rigid substrate with this laminator easily and the control panel has been designed for ease of use and is intuitive to understand. Yes, The 65 EL is ideal for a wide variety of display applications we want you to get more information by calling Jennifer at 4105 408 936.
