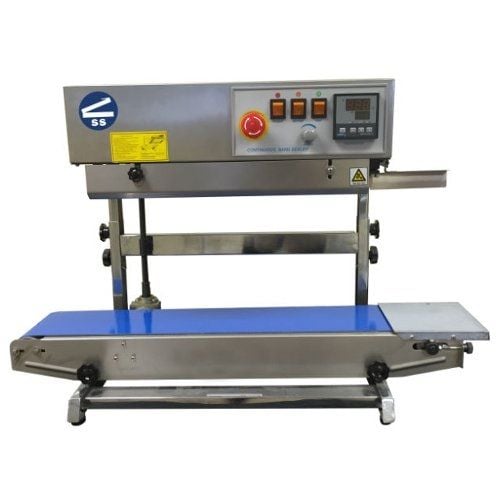

SealerSales CBS-880II Vertical Continuous Band Sealer (Right Feed)
862.89
NewCondition
InStock
SealerSales CBS-880II Vertical Continuous Band Sealer (Right Feed)
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
Product Description
This SealerSales CBS-880II Vertical Continuous Right Feed Band Sealer is suitable for sealing any thermoplastic material and bags including PE, PP, and laminates. This sealer can seal 20-30 pcs of 6" wide poly bags in one minute. This SealerSales CBS-880II Horizontal Continuous Band Sealer can be used in a variety of fields such as the food, medical, and cosmetic industries.
Product Details
- Durable stainless steel.
- Easy to operate - minimal operator training.
- Fast warm up time.
- Seals any thermoplastic material including PE, PP, and laminates.
- Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality.
- Fully adjustable conveyor.
- Motorized rubber conveyor with speed control.
- Knurled pressure rolls with variable pressure adjustment.
- One pair each of cooling and heating blocks.
- Sealing method - constant / direct heat.
- Unit feeds right to left.
- Equipped with an emergency stop button.
- Spare parts include: PC Board, PTFE sealing belt, wheel belt, tools, and type set.
- Minimum and maximum bag heights when the bag is filled: Min: 6.0" / Max: 12.0".
- Optional:
- Optional embossing wheel to emboss on seal line without ink (bags should be tested for compatibility).
- 2-line embossing wheel.
- 15mm seal width.
- Digital counter to keep track of sealed packages.
Item Specifications
- Power: 110V/60Hz
- Motor Power: 50W
- Sealing Speed: 0-472 Inches/Minute
- Seal Width: 8mm
- Temperature Range: 0-300°C
- Conveyor Size: 38" x 7"
- Single Conveyor Load: 2.2 lbs.
- Bag Size (Filled) - Vertical Unit: Minimum - 6" / Maximum - 12"
- Character Size: 3 x 4 x 9mm
- Optional Embossing: 1 Line Embossing (2 Lines Available) 3 Sections w/ 15 Character/Line
- Dimensions: H: 33" x 17" x 13" / V: 33" x 17" x 22"
Demonstration Video
CBS-880II - Vertical Stainless Steel Band Sealer Features
Transcript:
CBS-880II- Vertical Stainless Steel Band Sealer. Suitable for sealing all types of plastic materials and bags. Features: Vertical configuration- ideal for sealing stand up pouches or liquid/grains. Convertible back to horizontal configuration. Durable stainless steel. Easy to operate. Unit feeds right to left. Fully adjustable conveyor and conveyor height Embossing attachment allows. Turn on the power, heat, and fan. Set the desired temperature. Place bags through the sealing guide. Adjust speed of conveyor. Embossing example with text – CBS-880 produces a beautiful 8mm seal with an optional e ...
Read More
CBS-880II- Vertical Stainless Steel Band Sealer. Suitable for sealing all types of plastic materials and bags. Features: Vertical configuration- ideal for sealing stand up pouches or liquid/grains. Convertible back to horizontal configuration. Durable stainless steel. Easy to operate. Unit feeds right to left. Fully adjustable conveyor and conveyor height Embossing attachment allows. Turn on the power, heat, and fan. Set the desired temperature. Place bags through the sealing guide. Adjust speed of conveyor. Embossing example with text – CBS-880 produces a beautiful 8mm seal with an optional embossed message at seal line.
Resources
Related Categories you might also like
Questions & Answers
Thank you for your question. Unfortunately we do not have a Continuous Band Sealer that has a incorporated nitrogen flush.
Answered by MyBinding
