SealerSales CN-4520A Heat Shrink Tunnel (18"W x 8"H x 32"L)
2504.99
NewCondition
InStock
SealerSales CN-4520A Heat Shrink Tunnel (18"W x 8"H x 32"L)
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
Product Description

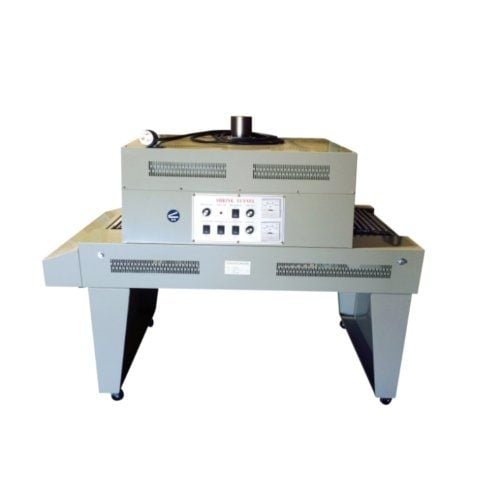

This SealerSales CN-4520A Heat Shrink Tunnel is designed for continuous shrinking of PVC and polypropylene films used in shrink packaging. It has a 31.5"L x 17.7"W x 7.9"H chamber dimensions. It is equipped with an adjustable speed conveyor and 2 temperature controllers for upper and lower heaters. The tunnel is heated on 4 sides by 10 ceramic electric tubes. The CN-4520A is equipped with a stand and wheels and can be placed on a tabletop or left free standing.
Product Details
- Heat shrink tunnel system.
- Designed for continuous shrinking of PVC and polypropylene films used in shrink packaging.
- Automatic operation.
- Heating on four sides.
- 10 ceramic electric replaceable tubes.
- Separate adjustable temperature controllers for upper and lower heaters.
- Designed for continuous shrinking of PVC and polypropylene films used in shrink packaging.
- Table Top or Free Standing Unit
- Easy to operate:
You simply turn on the power and the heater and adjust the conveyor speed according to the thickness of the film. Put the package on the conveyor belt and the film shrinks tightly around the package as it goes through the tunnel. Please note: customer must provide his/her own plug.
Item Specifications
- Chamber Dimensions: 31.5"L x 17.7"W x 7.9"H
- Machine Dimensions: 52.4"L x 28.3"W x 43.3"H
- Electrical: 220V/240V, 1 PHASE, 27 AMPS
- Max Temperature: 392°F/200°C
- Maxload: 11LBS
- Maxfilm Thickness: 240 Gauge
- Weight: 240LBS
Demonstration Video
CN-4520A Shrink Tunnel Video
Transcript:
CN-4520 Heat Shrink Tunnel Machine. Designed for fast and quick shrinking of PVC and POF. Features: easy to use, can operate up to 20 feet per minute, two separate temperature controllers to heat both upper and lower heaters; shrink tunnel is heated on all four sides; shrink tunnel runs on 220V; CN-4520A can be used on a table top or attached to a stand. Machine incudes a stand with casters allowing operator to easily, move machine from one location to another. Turn on conveyor and adjust speed and heat settings. Allow machine 5-10 minutes to warm up. Place item to be shrink wrapped on the con ...
Read More
CN-4520 Heat Shrink Tunnel Machine. Designed for fast and quick shrinking of PVC and POF. Features: easy to use, can operate up to 20 feet per minute, two separate temperature controllers to heat both upper and lower heaters; shrink tunnel is heated on all four sides; shrink tunnel runs on 220V; CN-4520A can be used on a table top or attached to a stand. Machine incudes a stand with casters allowing operator to easily, move machine from one location to another. Turn on conveyor and adjust speed and heat settings. Allow machine 5-10 minutes to warm up. Place item to be shrink wrapped on the conveyor. Item will exit shrink tunnel shrink wrapped and ready to go!
