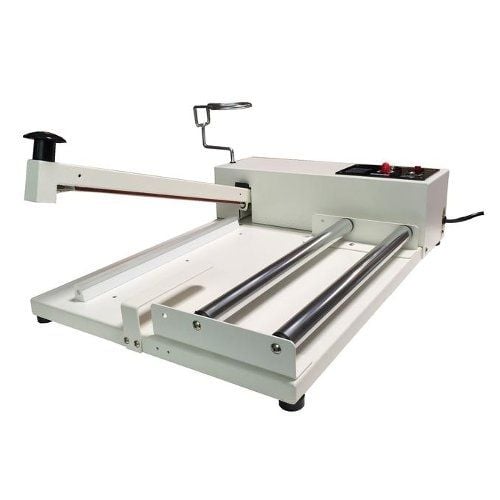

SealerSales W-Series I-Bar Sealers w/ Film Roller and Round Wire
- Seal Length: 14" - 35"
- Seal Width: 2.7mm
- Ideal for shrink wrap packaging
- Accompanied with a ROUND wire for cut and seal applications.
- Ships Free Over $75
$285.79
- 0
- 1
- 2
- 3
- 4
| Product Name | Item Number | Price | Qty | ||
|---|---|---|---|---|---|
| SealerSales W-350I 14" I-Bar Sealer w/ Film Roller and Round Wire | W-350I | $285.79
|
|||
| SealerSales W-500I 20" I-Bar Sealer w/ Film Roller and Round Wire | W-500I | $338.59
|
|||
| SealerSales W-650I 26" I-Bar Sealer w/ Film Roller and Round Wire | W-650I | $375.79
|
|||
| SealerSales W-750I 30" I-Bar Sealer w/ Film Roller and Round Wire | W-750I | $442.89
|
|||
| SealerSales W-900I 35" I-Bar Sealer w/ Film Roller and Round Wire | W-900I | $570.09
|
Product Description
Product Details
- Ideal for shrink wrap packaging
- Accompanied with a ROUND wire for cut and seal applications.
- Comes in ivory color.
- Up to 35" Sealing Length
- Film and heat gun are sold separately.
- Easy to Operate:
Insert the product between the two layers of center fold film and press down the sealing bar. Pull the sealed package slightly away from the sealing bar. The element wire will cut and seal the edge. Now turn it over and seal the other side. Apply hot air using heat gun to shrink the film uniformly.
Item Specifications
- Seal Length: Choose Above
- Seal Width: 2.7mm
- Element: Round
- Replacement Kits: RK-14B, RK-20B, RK-26B, RK-30B, RK-35B
Demonstration Video
W-Series I-Bar Sealer Spring Hook Assembly Maintenance
How to Change the Spring Hook Assembly on the W-Series I-Bar Sealers
What is the spring hook assembly?
The spring hook assembly (Part#SHA-WH) holds the element / heating wire in place on the Sealer Sales W-Series I-Bar Sealers. There are two spring hook assemblies which are found on eather end of the seal arm. Similar to mounting springs, the spring hook assemblies are responsible for keeping the tension on the wire as too much slack will create a poor seal. We recommend changing out the spring hook assembly from time to time. This video will w ... Read More
Sealer Sales Band Maintenance:
How to Change the Spring Hook Assembly on the W-Series I-Bar Sealers
What is the spring hook assembly?
The spring hook assembly (Part#SHA-WH) holds the element / heating wire in place on the Sealer Sales W-Series I-Bar Sealers. There are two spring hook assemblies which are found on eather end of the seal arm. Similar to mounting springs, the spring hook assemblies are responsible for keeping the tension on the wire as too much slack will create a poor seal. We recommend changing out the spring hook assembly from time to time. This video will walk through how to change it out. Make sure your unit is unplugged before performing any maintenance.
- To replace the front spring hook assembly, pull the spring hook assembly down from the I-Bar arm.
2. Disassemble the spring hook assembly.
3. Replace with the new spring hook assembly. Attach the heating element wire to the spring hook assembly. Notice the notch located on the spring hook. Push the spring hook assembly back into the arm of the sealer. Make sure the larger end of the shoulder washer is pushed back into the arm of the sealer as well.
4. To access the back spring hook assembly, remove the back panel.
5. Remove the spring hook assembly by pushing down on the washer and spring.
6. Replace with new spring hook assembly
7. Push the spring hook assembly back into place.
