HIX SwingMan 15 Analog Swing-A-Way with 15" x 15" Platen & Accessories

Starting at

$823.49

pay /mo or Net30*
Brand: HIX
Item# 04HIXSWING15-GRP
  • All Metal Construction
  • Analog Full Range Heat Control up to 400°F
  • Separate Digital Timer Included
  • 15” x 15” platen sizes
Product Name
Item Number
Price
Qty
04HIXSWING15
$823.49
04HIXTFSHT1515
$23.79
04HIXTFSHT1620
$26.29

ProductDescription

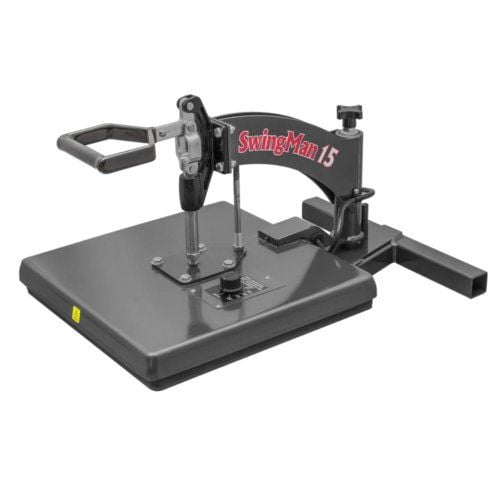

This HIX SwingMan 15 Analog Swing-Away Heat Press is ideal for start-up, small, or mobile shops who needs high quality impressions and reliable equipment for the sublimation market. It has the ability to do garment transfers ranging from youth to XL adult sizes, and accepts substrates up to 1-3/4" thick. The SwingMan 15 is featured with a a 15" x 15" lifetime guaranteed cast-in heating element with a swing-away design that keeps the hot surfaces away from your hands and arms. It has a sturdy steel design and an easy-adjust pressure control, full-range temperature settings from off to 400°F, a heat indicator light, and a separate handheld digital timer. This portable heat transfer press only weighs 57 lbs. and takes up very little space and work surface. The applications for HIX SwingMan 15 is virtually unlimited - you can transfer to garments, mouse-pads, glass-cutting boards, plaques, ceramic tiles, and so much more. This makes it ideal for those mobile shops at races, concerts, state fairs, and any event where you can make money! This HIX SwingMan 15 Analog Swing-Away Heat Press is backed by a one-year warranty on components, a lifetime warranty on the heating element, and is ETL Certified for electrical safety.

Product Details

Features:

  • All Metal Construction
  • Analog Full Range Heat Control up to 400°F
  • Separate Digital Timer Included
  • 15” x 15” platen sizes
  • Compatible with Textile & Non-Textile Substrates
  • Lifetime warranty on the Heating Element

PTFE Benefits:

  • Eliminates scorching on products.
  • Keeps transfers from sticking.
  • Minimizes ink and dust from transfers and garments.
  • Allows user to gang multiple transfers.
  • Prevents dyes in colored garments from staining the heat platen.

Additional PTFE Deluxe Benefits:

  • Protects rubber pad from wear and stains.
  • Increases the lifetime of the rubber pad.
  • Allows smooth movement for positioning product and transfer.
  • Provides a non-sticking, easily cleaned work surface.

Item Specifications

Demonstration Video

Choosing the Best Type of HIX Heat Press Machine for Sublimation and Transfers

Compare to Similar HIX Value Series Heat Transfer Machines

Model Name Green Hobby Lite Pink Hobby Lite HT-400E SwingMan 15 SwingMan 20E
Model
Size 9” x 12” 9” x 12” 15” x 15” 15” x 15” 16” x 20”
Color Green Pink Black Black Black
Temperature up to 400°F up to 400°F up to 400°F up to 400°F up to 400°F
Compatible Equipments Textile & Non-Textile Substrates Textile & Non-Textile Substrates Textile & Non-Textile Substrates Textile & Non-Textile Substrates Textile & Non-Textile Substrates
Compatible Accessories 1/4" and 3/8" Thick Pad Replacement Kit 1/4" and 3/8" Thick Pad Replacement Kit 15" x 15" and 16" x 20" PTFE Transfer Sheet, Optional Splitter Stand - Electric Blue 15" x 15" and 16" x 20" PTFE Transfer Sheet 15" x 15" and 16" x 20" PTFE Transfer Sheet
