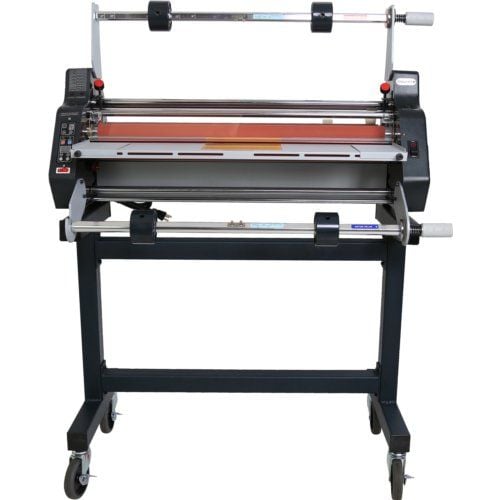

Tamerica Versalam 2700-EP 27" One and Two-Sided Roll Laminator
FAQ: 0 Questions, 0 Answers
0 Q&As
Item# Versalam2700EP
- 27" thermal roll laminator
- Compatible with film up to 10mil thick (1 or 3" core) & boards up to 1/4" thick
- Adjustable heat settings from 194°-320° F
- Up to 105.6" per minute adjustable speed
ProductDescription
This Tamerica Versalam2700-EP 27" One and Two-Sided Roll Laminator is a heavy-duty metal construction laminator suitable for school, office, or commercial printing use. This roll laminator performs either one or two sided lamination processes in addition to mounting. The Versalam-2700EP's heated silicone rollers and variable speed and temperature controls ensure a bubble and scratch-free result. The Versalam2700-EP can accomodate almost any Laminating need, up to 27" wide. Plus, it is capable of handling Laminating films up to 10 mil thick and can handle mounting boards up to 1/4" thick. This roll laminator requires a 1 inch or 3 inch core Laminating films. This Tamerica Versalam2700-EP 27" One and Two-Sided Roll Laminator is backed by a 1-Year manufacturer's warranty.
Product Details
- 1-side & 2-side Laminating.
- Variable speed & temperature control.
- Auto shut-off.
- Feed tray & front shield sensors.
- Temperature memory function.
- 4 rear fans with on/off switch.
- On/off switch for bottom roller heat.
- Temperature conversion feature.
- With middle de-curling bar.
- With back pull bar.
- Mounted on its own stand.
- With rear film slitter.
- With guide plate for 8.5" x 11".
- Heavy-duty, all-metal construction.
- UL approved.
- 2-tone color (navy blue/silver).
- 1 Year Manufacturer's Warranty.
Item Specifications
- Max. Laminating Width: 27"
- Max. Laminating Thickness: 10mil
- Max. Laminating Speed: 8.8"/min
- Max. Mounting Capacity: 1/4" boards
- Core Sizes: 1" & 3"
- Compatible Supplies: 1" or 3" Core Thermal Roll Film - 1.5-10mil Thick & 27" Wide
Mounting Board - Up to 1/4" Thick - Shipping Length : 51
- Shipping Width: 27
- Shipping Height: 24
- Shipping (Web) Weight: 213 lbs
- Manufacturer's Warranty: 1 Year
Compare to Similar Tamerica Hot Roll Laminators
| Model Name | Tamerica TCC1400i | Tamerica TSL-2700 | Tamerica TCC 27000 | Tamerica TCC 2700 | Tamerica TCC-1400F+ | Tamerica VersaLam 2700-P | Tamerica Versalam 2700-EP |
|---|---|---|---|---|---|---|---|
| Model | |
|
|
|
|
|
|
| Lamination Thickness | 1.5 - 10 mil | 1.5 - 3 mil | 1.5 - 5 mil | 1.5 - 10 mil | 1.5 - 5 mil | 1.5 - 10 mil | 1.5 - 10 mil |
| Lamination Speed | 8.8 fpm | 5.5 fpm | 6 fpm | 4 fpm | 8.8 fpm | 4 fpm | 8.8 fpm |
| Laminating Width | 14" | 27" | 27" | 27" | 14" | 27" | 27" |
| Warm Up Time | 15 Minutes | 20 Minutes | N/A | N/A | N/A | N/A | N/A |
| Temperature Range | 194° - 248°F (90° -140°C) | 275° - 296°F (135° -146°C) | N/A | N/A | N/A | N/A | N/A |
| Speed Control | Yes | No | Yes | Yes | No | Yes | Yes |
| Temperature Control | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Roller Adjustment | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Mounting Capability | up to 3/16" | Up to 1/4" | Up to 1/4" | Up to 3/16" | Up to 3/16" | Up to 3/16" | Up to 1/4" |
| Reverse Function | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Core Size | 1" | 1" | 1" | 1" | 1" | 1" and 3" | 1" and 3" |
| Dimensions | 34" x 24" x 18" | 34" x 13" x 14" | 48" x 19" x 18" | 48" x 19" x 18" | 34" x 19" x 18" | 27" x 14" x 24" | 51" x 27" x 24" |
| Power Voltage | 110 Volts 15amp | 110 Volts 15amp | 115V/60Hz/1600W | 115V/60Hz/1600W | 115V/60Hz/1600W | 115V/60Hz/1600W | 115V/60Hz/1600W |
| Warranty | Limited 1 Manufacturer's Warranty | Limited 1 Manufacturer's Warranty | 1 Year Manufacturer's Warranty | 1 Year Manufacturer's Warranty | 1 Year Manufacturer's Warranty | 1 Year Manufacturer's Warranty | 1 Year Manufacturer's Warranty |
