Akiles DuoMac C41ECI+ Plastic Comb and 4:1 Coil Binding Machine
989.00 NewCondition InStock

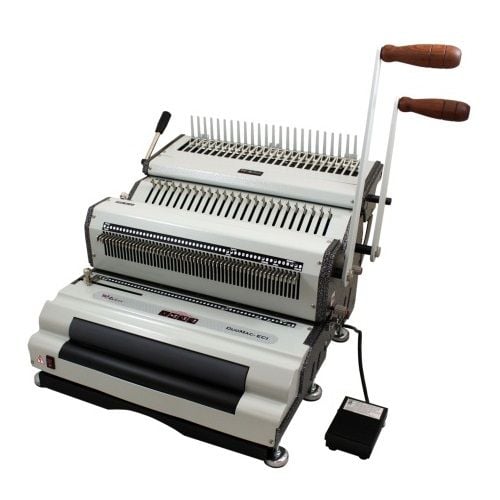

Akiles DuoMac C41ECI+ Plastic Comb and 4:1 Coil Binding Machine

Part #: DUOMACC41ECI+
Brand: Akiles
1 Questions, 1 Answers
  • 2-1 machine with an electric inserter
  • Measures document's thickness to select best size option
  • 20 sheet punching capacity
  • 1 year manufacturer warranty
Please Note: Ships in 2-3 Business Days
  • 1 Year Manufacturer's Warranty
  • Price Match Guarantee
  • Free Shipping

$989.00

Buy Now, Pay Later
Starting at $91/month
Learn More >

Qualifies for FREE Shipping!*

SWIPE FOR MORE IMAGES
  • 0
  • 1
video

Product Description

Looking for the perfect one-stop binding solution? Akiles is proud to present the DuoMac C41ECI Plus 2-in-1 Binding Machine with Electric Inserter. This monstrous work station is assemble with a manual coil punch, electric coil inserter, manual comb binding punch and manual comb binding spreader. Providing a 4:1 pitch, the C41ECI+ creates an oval, 4mm x 5mm punch that will ensure a much smoother coil finish. The reason for the oval shape hole punch is to provide a punch that will include all 54 holes. At times, because of the diameter of the punch, the standard round punch can exceed pass the document. In the end, it will result in a punch on the edge or beyond the page. Punch up to 20 sheets of paper with confidence, the C41ECI can cover up to 14" document length. With fully disengageable dies, miss punching and wasted materials are in the past. The Akiles DuoMac C41ECI Plus is the two-in-one, premium binding machine perfect for any volume size and office environment.
Please note that the Akiles DuoMac line of Binding Machines are assembled on a per order basis and normally take two to three days to ship.

Product Details

  • The Akiles DuoMac C41ECI is combination of manual coil punch, electric coil inserter, manual comb binding punch and manual comb binding spreader.
  • Disengageable pins allow punching of smaller size documents while preventing partial punches (5 for coil and full for comb)
  • Depth Margin Control: Provides the correct punch margin depth for each wire/comb size. Maximizes document tear resistance.
  • Open Punching Throat & Continuous Punching Guide: For an easy alignment & punching of longer documents.
  • Diameter Scale: Measures document's thickness in order to select best coil/comb size option
  • Built-in manual comb opener and electric coil inserter.
  • Spacious Waste Drawer
  • Side margin control for evenly centered holes.
  • Heavy-Duty design by CAE (Computer-Aided Engineering) technology
  • Comb combination is compatible with Spiral-O wire binding spines
  • Comb Spreader with any Comb combination.
  • FREE coil crimpers with any Coil combination.

Item Specifications

  • Pitch: 4:1 (0.248")
  • Hole Punch: Oval (4mm x 5mm)
  • Single Punch Capacity: Up to 20 sheets (20 lbs paper)
  • Single Punch Length: 14"
  • Disengaging Dies: 5 for coil and full for comb
  • Actual Machine Dimensions (L x W x H): 24" x 22" x 21"
  • Shipping Length:19"
  • Shipping Width:21"
  • Shipping Height:13"
  • Shipping Weight:69.1 Lbs.
  • Manufacturer's Warranty: 1 Year Manufacturer Manufacturer's Warranty

Demonstration Video

Coil Binding Overview - Akiles DuoMac C41ECI+

Transcript: This is the Akiles DuoMac C41ECI+ Plastic Comb and 4:1 Coil Binding Machine!

In this overview, we are looking at the front half of the machine, making a coil bound book.

To start, adjust the edge guide appropriately.

Always start with a test page. From there you can see any incomplete holes. So, find the correct disengageable pins and pull them out. Do another test, then fold the page in half. If the holes line up, you are ready. If not, continue to adjust the edge guide.

When punching, we always start with the front and back cover—they are thicker, so punching two at a time is saf ...
Read More
This is the Akiles DuoMac C41ECI+ Plastic Comb and 4:1 Coil Binding Machine!

In this overview, we are looking at the front half of the machine, making a coil bound book.

To start, adjust the edge guide appropriately.

Always start with a test page. From there you can see any incomplete holes. So, find the correct disengageable pins and pull them out. Do another test, then fold the page in half. If the holes line up, you are ready. If not, continue to adjust the edge guide.

When punching, we always start with the front and back cover—they are thicker, so punching two at a time is safe. You can also punch up to 20 sheets at a time, which will take more effort—though still doable. The fewer pages you punch at a time, the easier it is.

Now assemble your pages and put them into the rounded channel on the front.

This way your pages are formed nicely to insert your plastic coil into about 4-5 holes.

From there, with the roller already on, press the foot pedal. This will spin the front roller, to which you place your coil against and it will run it through all the holes. Next take the provided coil cutting crimpers.

Orient the book as seen here and cut off the extra coil on the right. Make sure that the dot on the crimper is facing up. Then flip the book around and do the other end.

Now you have a coil bound project. But there are a few more features to cover!

It has an open side design, which means you punch pages that are significantly longer as well. It comes with a coil and project measuring guide, and you can change the depth of margin. There are four depths as seen here.

From time to time, make sure to also empty the waste tray and slide it back in.

Comb Overview - Akiles DuoMac C41ECI+

Transcript: This is the Akiles DuoMac C41ECI+ Plastic Comb and 4:1 Coil Binding Machine!

In this overview, we are looking at the back half of the machine, making a comb binding bound book.

To start, adjust the edge guide appropriately.

You’ll see that some common page sizes are marked on the machine—pull any of the appropriate pins out. Always start with a test page. Then fold the page in half. If all the holes line up then you are ready. If not, continue to adjust the edge guide.

When punching, we always start with the front and back cover—they are thicker, so punching two at a time is safe. ...
Read More
This is the Akiles DuoMac C41ECI+ Plastic Comb and 4:1 Coil Binding Machine!

In this overview, we are looking at the back half of the machine, making a comb binding bound book.

To start, adjust the edge guide appropriately.

You’ll see that some common page sizes are marked on the machine—pull any of the appropriate pins out. Always start with a test page. Then fold the page in half. If all the holes line up then you are ready. If not, continue to adjust the edge guide.

When punching, we always start with the front and back cover—they are thicker, so punching two at a time is safe. You can also punch up to 20 sheets at a time, though remember that the fewer pages you punch at a time, the easier it is.

Next place the appropriately sized comb into the teeth of the opener. The hooks will grab the binding and it should open up as seen here.

Now thread your pages in face down, starting with the front cover. The nice thing about this, is you can punch your pages, thread them in, punch the next batch, thread them in and do so until complete.

Close the binding back up and you now have a book bound with comb binding—next I’ll go over some extra features of the machine!

You can remove the opener to operate from the side, or as a two person operation.

It also has an open ended design for longer pages, and you can change the depth of margin. There are four depths as seen here.

From time to time, make sure to also empty the waste tray and slide it back in.
