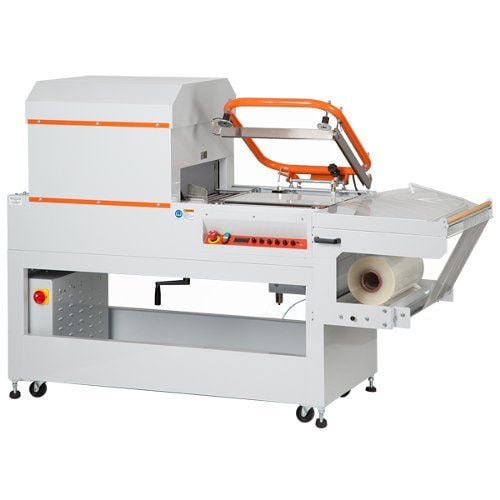

Clamco 4C Combo L-Sealer and Tunnel System with Manual Sealer
14231.25 NewCondition InStock

Clamco 4C Combo L-Sealer and Tunnel System with Manual Sealer

Part #: 04PACDEM4C
Brand: Clamco
  • Seal Length (End): 18.5"
  • Seal Length (Side): 21.5"
  • Convenient trim collection reduces clean-up
  • Easy-to-use operator controls require minimal training
  • 3 Year Manufacturer Warranty
  • Price Match Guarantee
  • Oversize / Truck shipping


Buy Now, Pay Later
Starting at $1,316/month
Learn More >

This Item Ships Via Truck

  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
Product Name Item Number Price Qty
Clamco 4C Combo L-Sealer and Tunnel System with Pneumatic Sealer 04PACDEM4CP
Optional 12" High Tunnel Opening for Clamco 4C 04PACDEM4C13THO
Mesh Belt Overlay for Clamco 4C Tunnel 04PACDEM4CMBO
Power Film Unwind w/ Inverting Head for DEM 4 Combo 04PACDEM4CPFU
Power Film Unwind for Dem 4 Combo 04PACDEM4CPU
Spare Parts Kit for DEM 4 Combo 04PACDEM4CSPK
Optional Hot Knife Mushroom Blade for 4C Combo - Factory Installed Only 04PACDEM4CHKMB

Product Description

The Clamco 4C combo shrink packaging machines combine a heavy-duty L-bar sealer and shrink tunnel for packing, sealing, and shrink wrapping a variety of products. Clamco combo shrink packaging systems can be used with a wide range of films due to their precise temperature and speed controls. These combo shrink wrap machines come with a standard power take-away system and are available with a sealer arm that works manually, pneumatically, or with a motor.

The robust design of the Clamco systems provides the framework for greater productivity and ensures consistently strong seals. The digitally temperature controlled tunnel provides for consistent shrink. The use of integrated application-specific controls allow for easy and fast operator set-up and provides for years of trouble-free operation.

The Clamco 4C combo machines are heavy-duty shrink packaging systems engineered for 24/7 use. Designed to minimize maintenance and provide consistent strong seals they can be used with a wide range of films. The Clamco L-bar sealers offer a hot knife seal bar option for sealing PVC and polyethylene films. The Clamco system has a single adjustable height control for the product take-away and tunnel conveyor to deliver smooth product transfer. The height of the tunnel chamber is adjustable, increasing shrink efficiency for short products. Additionally, Green Mode allows for the Clamco 4C to slow down and conserve energy when the machine remains idle for several minutes.

Product Details

  • L-Bar Sealer Features
    • Proprietary seal temperature control provides consistent seals and longer wire life
    • Heavy duty dual magnetic hold down ensures consistent seal
    • Quick conveyor height adjustment facilitates centering of the seal on the product
    • Adjustable package tray and film cradle with pinwheel perforator enhances technician productivity
  • Shrink Tunnel Features
    • Power Take-away System enhances technician productivity
    • Live/dead roller system allows the use of a wide variety of films
    • Green Mode allows the system to slow down and conserve energy when not in use
    • Digitally controlled tunnel temperature with 360° air circulation for top performance
    • Adjustable tunnel chamber height increases shrink efficiency
    • Side and bottom dampers for optimal air flow adjustment
  • Operating Features
    • Convenient trim collection reduces clean-up
    • Easy-to-use operator controls require minimal training
    • Low film cradle for easy access when changing rolls
    • Heavy duty construction built for 24/7 service
    • Automatic cool down and shut off function extends the life of the machine
  • Safety Features
    • Designed to meet CE safety requirements
    • Adjustable foot pads to ensure operator safety and machine stability
    • Emergency stop button
  • Made in the USA.
  • 3 Year Manufacturer's Warranty.

Product Reviews

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Item Specifications

  • Seal Length (End): 18.5"
  • Seal Length (Side): 21.5"
  • Film Width (Max): 24"
  • Tunnel Opening Width: 15.5"
  • Tunnel Opening Height (std./opt.): 9"/13"
  • Tunnel Inside Height (std./opt.): 11"/15"
  • Tunnel Inside Length: 26.5"
  • Tunnel Power: 6,000 watts
  • Overall Dimensions: 84"L x 31"W x 57"H
  • Electrical Requirements: 220V, 20 amp, 3 Ph
  • Weight: 666 lbs
  • Shipping weight: 904 lbs
  • Manufacturer's Warranty: 3 Year Manufacturer"s Manufacturer's Warranty
