Product Description

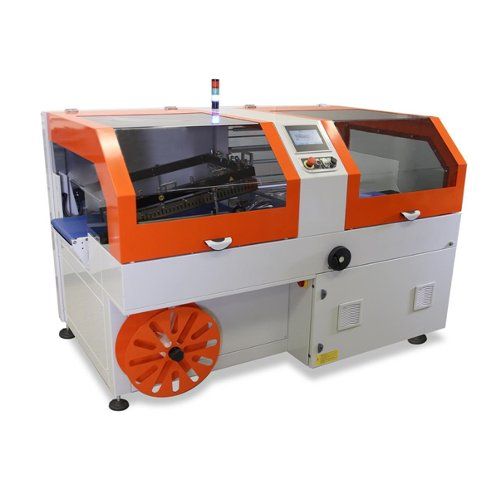

Create exceptionally well-formed packages with 6750EL Auto L-Bar Sealer. It is used for shrink wrapping or bagging various single products or a group of products into one package using the center-folded film. This highly efficient all-electric operated shrink wrapper requires no compressed air and provides quiet operation and greater efficiency compared to conventional pneumatic models. It also offers greater flexibility in terms of placement within a facility. It is an excellent stand-alone sealer or can be matched with a Clamco heavy-duty shrink tunnel for a superior shrink wrapping solution. The 6750EL features an easy-to-use touchscreen interface that displays machine settings, package speed up to 60 per minute for high production output, PTFE-coated sealing knives for high-quality seals on most films, and film economizer wheels reduce scrap and improve final package appearance. The Clamco 6750EL Automatic L-Bar Sealer includes a 2-year limited manufacturer’s warranty.
Product Details
- Standard Features:
- Quiet all-electric smooth operation, no need for air.
- Package speed up to 60 per minute for high production output, dependent on product size and film thickness.
- Smooth Quiet Operation to reduce plant noise levels.
- Easy to navigate touchscreen interface for operators of most skill levels.
- Display of key packing statistics, including production rate and efficiency.
- Film economizer wheels reduce scrap and improve final package appearance.
- Film Minimizer allows the operator to adjust the trim tail away from the seal bar.
- Trim take-up wheel keeps the work area clean.
- Closing conveyor for smooth product transfer of small or flexible products.
- Rounded cross seal bar decreases film breakage.
- PTFE-coated sealing knives for high quality seals on most films.
- Motorized seal centering and package opening height for effectively controlling proper film feeding and enhancing package appearance of the seal to the package.
- Independent temperature adjustment of cross seal and longitudinal seal.
- Low powered film cradle with a film inverting plow for easy film loading and threading .
- Quick changeover and 20 program memory allows for product setup in less than five minutes.
- 2 Year Limited Manufacturer Warranty.
- Safety Features:
- Fully enclosed electrical interlocked guarding ensures operator safety.
- Seal Bar safety sensors to detect product obstructions during closing.
- Fully enclosed electrical interlocked guarding for all doors, including the electrical panel.
- CE Compliant design for proper wiring, and safety operations.
- Emergency stop button strategically placed for quick operator response.
Specifications
- Speed: Up to 60 Cycles Per Minute
- Seal Bar (cross x front): 20" x 25"
- Maximum Product Height: 8"
- Maximum Film Width: 23.5", Centerfold
- Maximum Film Roll Diameter: 13.75"
- Maximum Conveyor Speed: 95 Feet/Min
- Power Requirements: 220 Volt/1 Phase/18 Amp
- Machine Dimensions: 60" W x 86" L x 65" H
- Machine Weight: 1,450 lbs
- Warranty: 2 Year Limited Manufacturer Warranty
