ClipsShop CSTIDY-51F Pneumatic Grommet Press with Foot Pedal
1558.64 NewCondition InStock

ClipsShop CSTIDY-51F Pneumatic Grommet Press with Foot Pedal

Part #: 04GRCSTIDY51F
Brand: ClipsShop
  • Lightweight and portable pneumatic grommet press
  • Interchangeable dies allow the use of grommets of different sizes.
  • Suitable for various materials, including vinyl, corrugated plastic, fabric, chipboard, industrial textile and more.
  • Powered by standard shop air, it has a dial for variable speed operation.
  • 1 Year Warranty
  • Price Match Guarantee
  • Oversize / Truck shipping
  • Brand New
In Stock

$1,558.64

This Item Ships Via Truck
SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6

Product Description

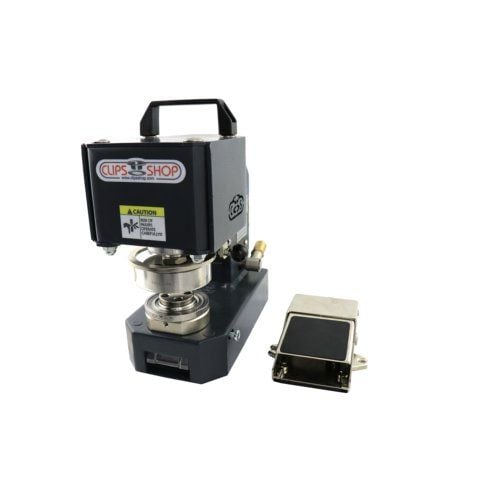

The CSTIDY-51F Pneumatic Grommet Press with Foot Pedal is a lightweight machine that is portable, heavy-duty, and efficient. It features a pneumatic operation system that requires no electricity. The foot pedal allows the user to operate the unit hands-free. Safe and fast, the machine can fasten self-piercing metal grommets to a wide range of materials, from banners and truck covers to signs, awnings, posters, and flags, to name a few. Other features include an OSHA-compliant finger guard, easy bench or worktable mounting system, built-in carrying handle, and a slug collection drawer. The CSTIDY-51F Pneumatic Grommet Press with Foot Pedal comes with a 1-year manufacturer's warranty against defects.
Note: The CS-TIDY-51 is powered with standard shop air, a compressor is not included with tool.
Note: This grommet press does not come with any die.

Product Details

  • Lightweight and portable pneumatic grommet press
  • Built-in carrying handle
  • Easy table mounting system
  • OSHA-compliant finger guard
  • No electricity required for operation
  • Powered by standard shop air, it has a dial for variable speed operation.
  • Interchangeable dies allow the use of grommets of different sizes. Standard self-piercing dies from #XX00 up to size #5.5 are compatible with the CS-TIDY-51 machine. Special self-cleaning dies are available in popular sizes specific to the CS-TIDY-41 & 51 models.
  • Suitable for various materials, including vinyl, corrugated plastic, fabric, chipboard, industrial textiles, poster board, and more
  • Made to last with a heavy-duty build and a powder-coated finish
  • 1-year manufacturer's warranty against defects
  • Optional Accessory's:
    • Filter, Regulator, Lubricator (FRL) – Provides accurate pressure to the grommet press along with clean air to the tool. This option is recommended to extend the life of the tool.
    • Adjustable Height Work Table - Specifically designed for the CS-TIDY series of grommet presses.
      • Height adjustable to position what best suits the operator and/or the material.
      • 3 different press positions depending on whether the user wants the die flush with the table or a little higher to accommodate the GrommetSniper or all the way up as shown.
      • Built-in bins for easy access to grommets & washers during use.
      • Angled, adjustable foot-pedal mount for operator comfort.
    • EyeleD red LED positioning pointer - Provides optical laser so the operator knows exactly where to place grommets.
    • Mobile cart to wheel the CS-TIDY machines around large work (rather than trying to move the work through the stationary press).
    • The "Grommet Sniper Alignment Tool" improves the speed and accuracy while placing multiple grommets on the same piece of work.

Item Specifications

  • Throat Depth From the Center: 100mm (4")
  • Net Weight: 9.5 kg (21 lbs)
  • Gross Weight: 10.5 kg (223 lbs)
  • Dimensions (Height × Width × Depth): 285 × 120 × 247 mm (11 1/4"× 4 3/4" × 9 3/4")
  • Compatible Accessories:
    • Mobile Cart
    • Adjustable Table
    • Filter-Regulator-Lubricator (FRL) Accessory
    • EyeleD Pointer (CSEDP-01)
    • GrommetSniper
    • Large GrommetSniper
  • Compatible Dies:
    • Two-Step-Die Sets (All sizes)
    • TIDY Self-Cleaning Die Sets
    • Self-Piercing Die Sets (All sizes)
  • Applicable Grommet Sizes: #XX00 - #12
